Power Steering Gear Box: Removal

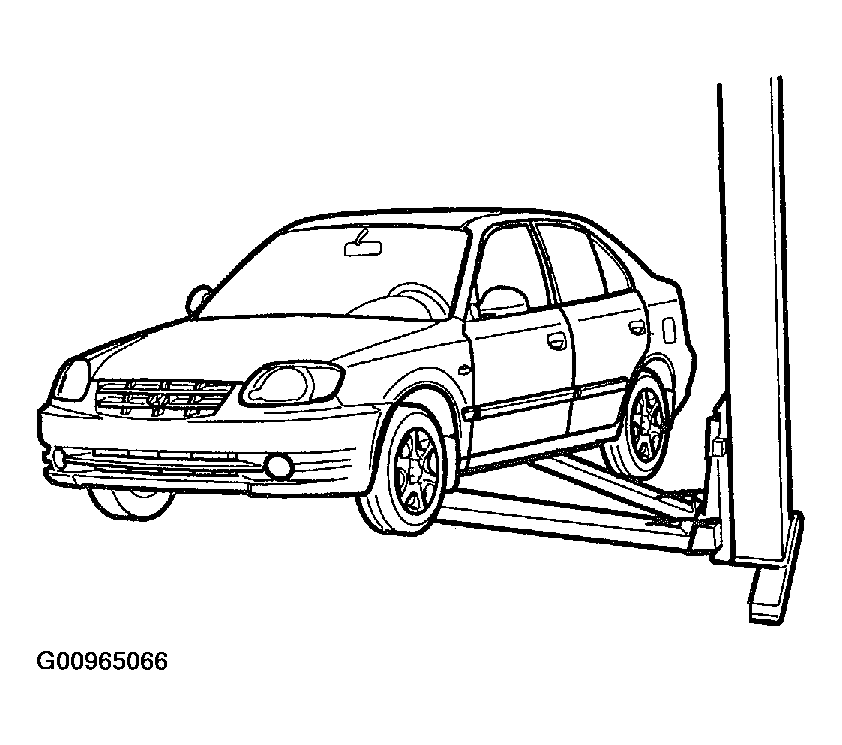

Support the specified portion of the vehicle with a lift.

Fig 1: Supporting Vehicle
Courtesy of HYUNDAI MOTOR CO.
Drain the power steering fluid.
Remove the front tires (RH/LH).

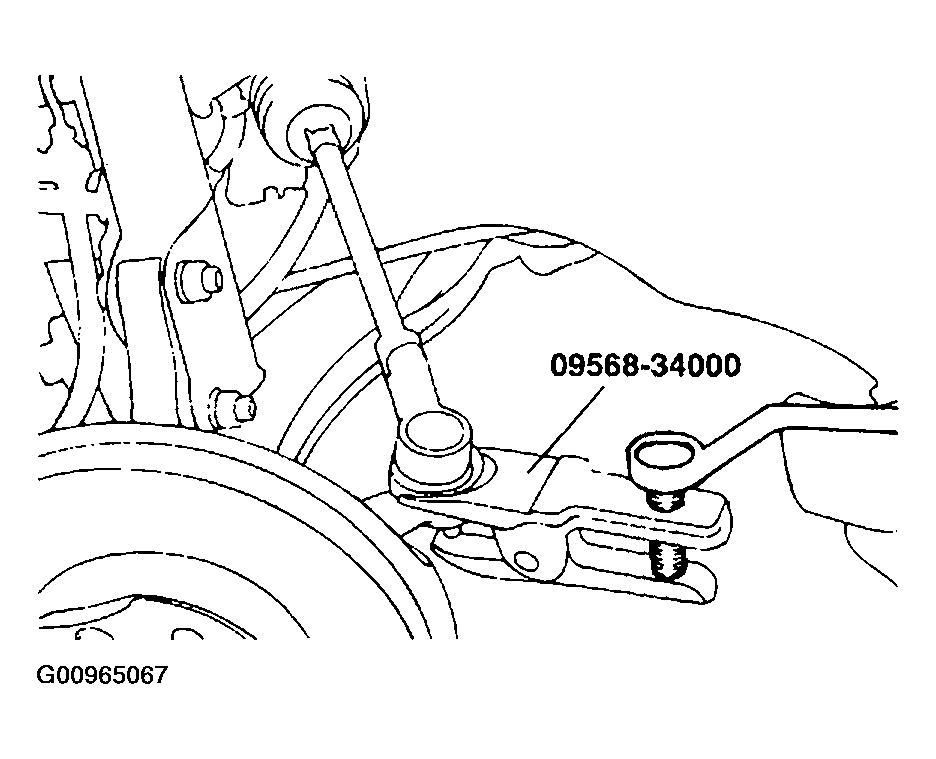

After removing the split pin, disconnect the tie rod from the knuckle by using the special tool.

Fig 2: Separating Tie Rod From The Knuckle
Courtesy of HYUNDAI MOTOR CO.

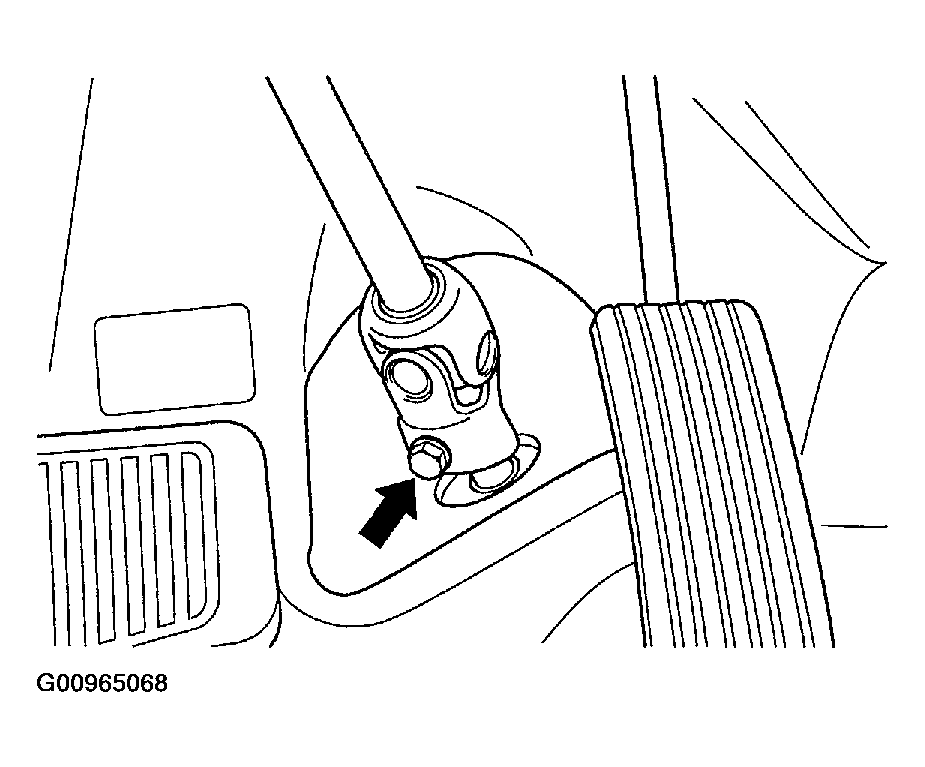

Disconnect the steering shaft assembly from the gear box inside the passenger compartment.

Fig 3: Disconnecting Steering Shaft Assembly From The Gear Box
Courtesy of HYUNDAI MOTOR CO.
Raise up the vehicle.

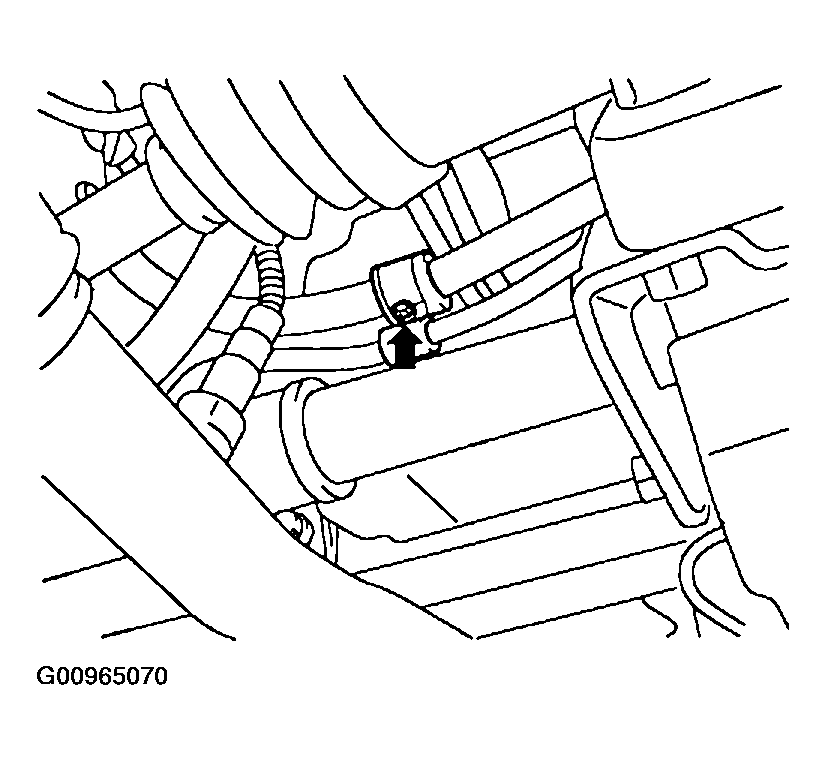

Loosen the power steering pressure tube mounting clamp and return tube mounting clamp mounting bolt.

Fig 4: Identifying Power Steering Pressure Tube Mounting Clamp & Return Tube Mounting Clamp Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

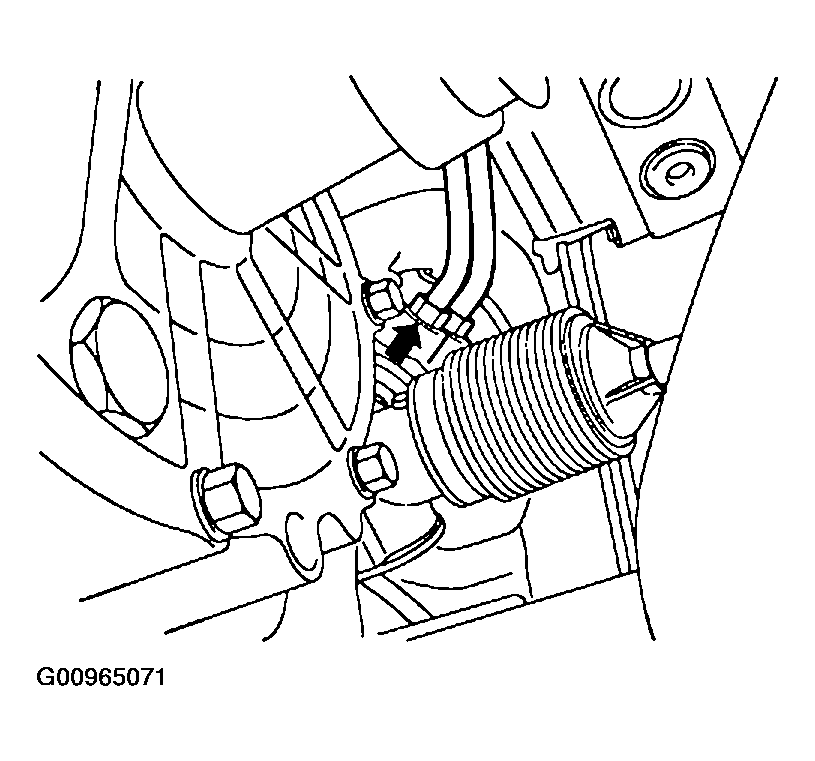

Disconnect the pressure tube and return tube fitting from the power steering gear box.

Fig 5: Disconnecting Pressure Tube & Return Tube Fitting From The Power Steering Gear Box
Courtesy of HYUNDAI MOTOR CO.

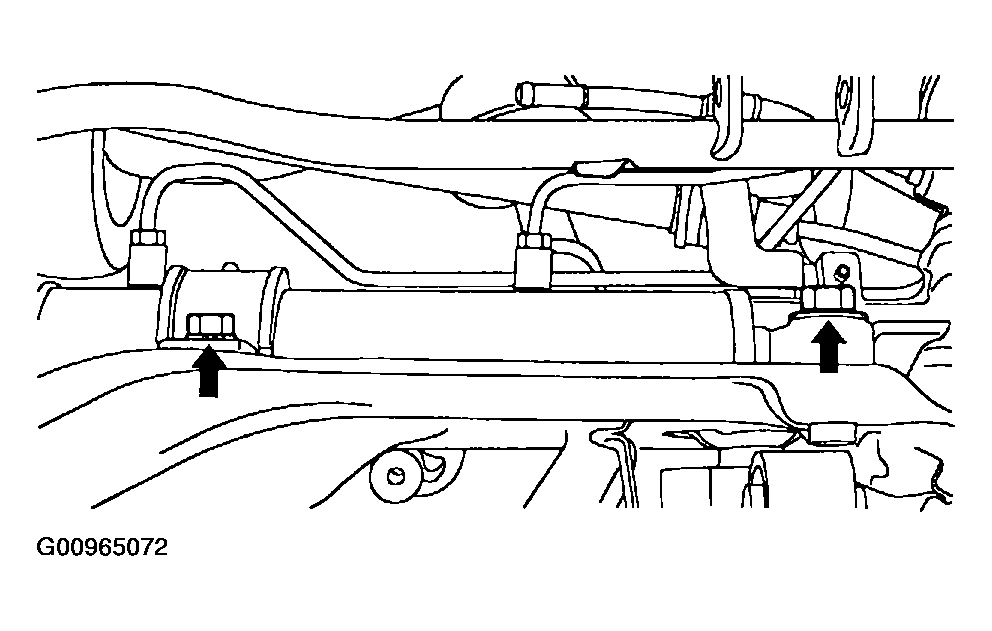

Remove the power steering gear box mounting bolt and clamp.

Fig 6: Identifying Power Steering Gear Box Mounting Bolt & Clamp
Courtesy of HYUNDAI MOTOR CO.

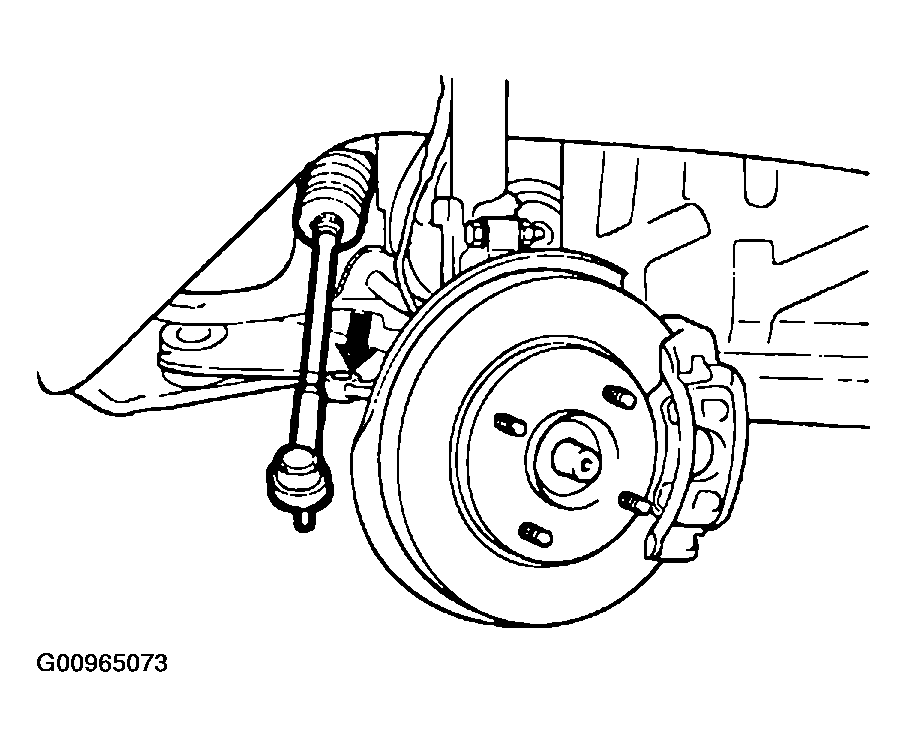

Separate the power steering gear box assembly by pulling it toward the rights side of the vehicle.

Fig 7: Separating The Power Steering Gear Box Assembly
Courtesy of HYUNDAI MOTOR CO.
