Chart 6

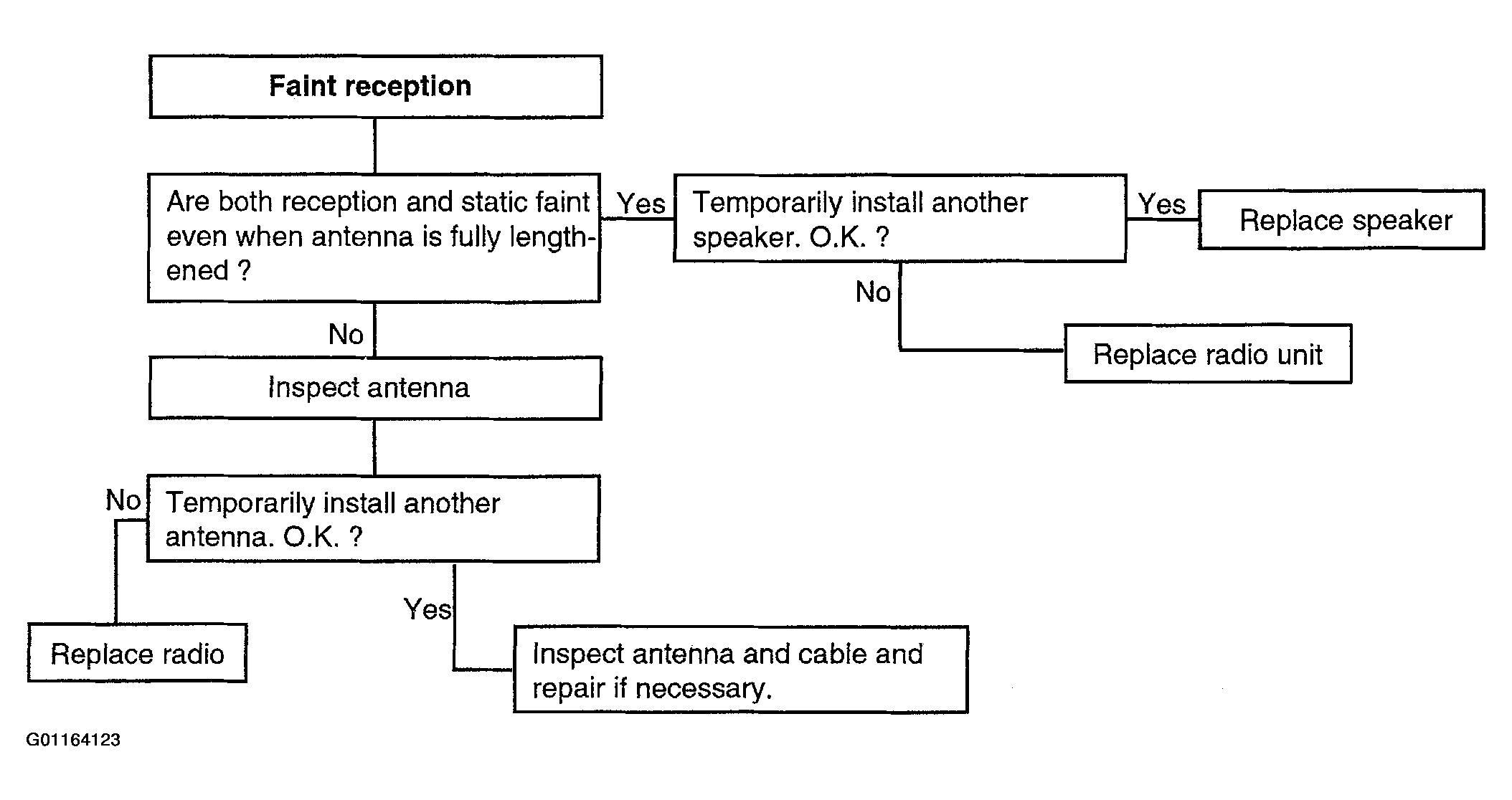

Fig 1: Troubleshooting Flow Chart - Faint Reception

G01164123

Courtesy of HYUNDAI MOTOR CO.
