Home >> Hyundai >> 2002 >> XG350 Base >> Repair and Diagnosis >> General Information >> Electrical >> Body Electrical System >> General >> Troubleshooting >> Chart 2

Chart 2

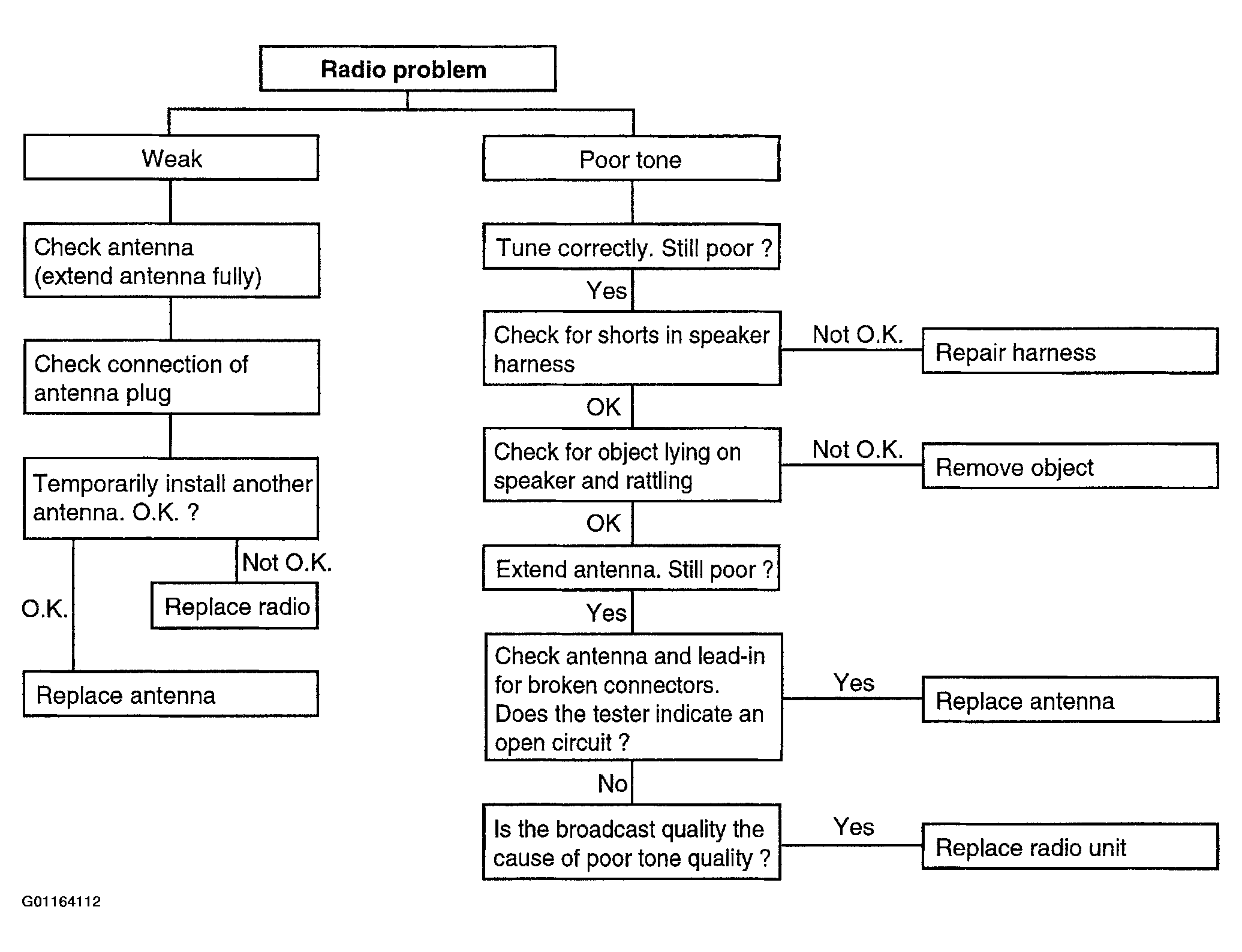

Fig 1: Troubleshooting Flow Chart - Radio Problem

G01164112

Courtesy of HYUNDAI MOTOR CO.
