Home >> Hyundai >> 2002 >> Santa Fe LX, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle System >> Troubleshooting (A/T) >> Notes

Troubleshooting (A/T): Notes

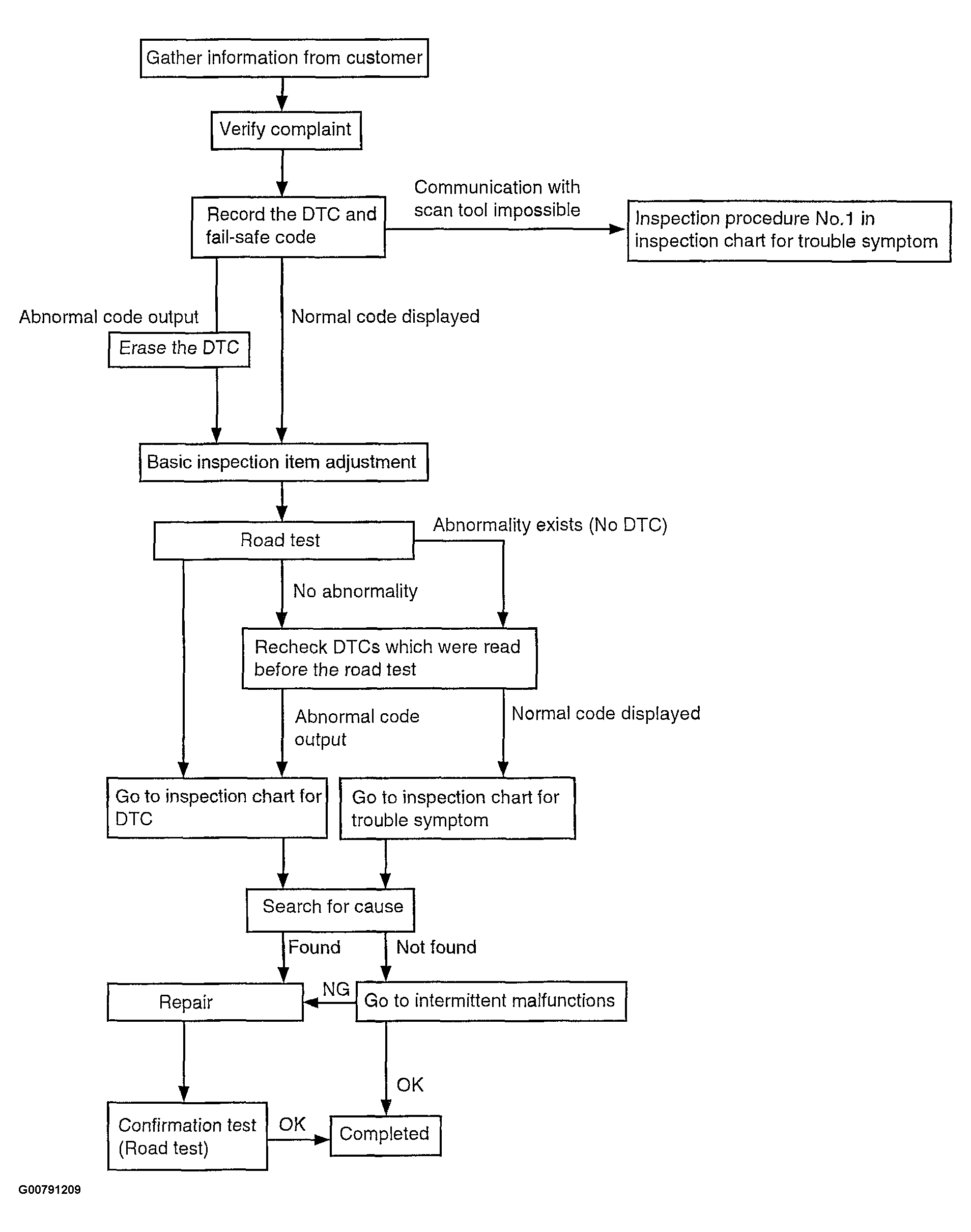

Fig 1: Troubleshooting (A/T) Flow Chart

G00791209

Courtesy of HYUNDAI MOTOR CO.
