Hyundai
>>
2002
>>
Santa Fe L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Body Control Module
Body Control Module

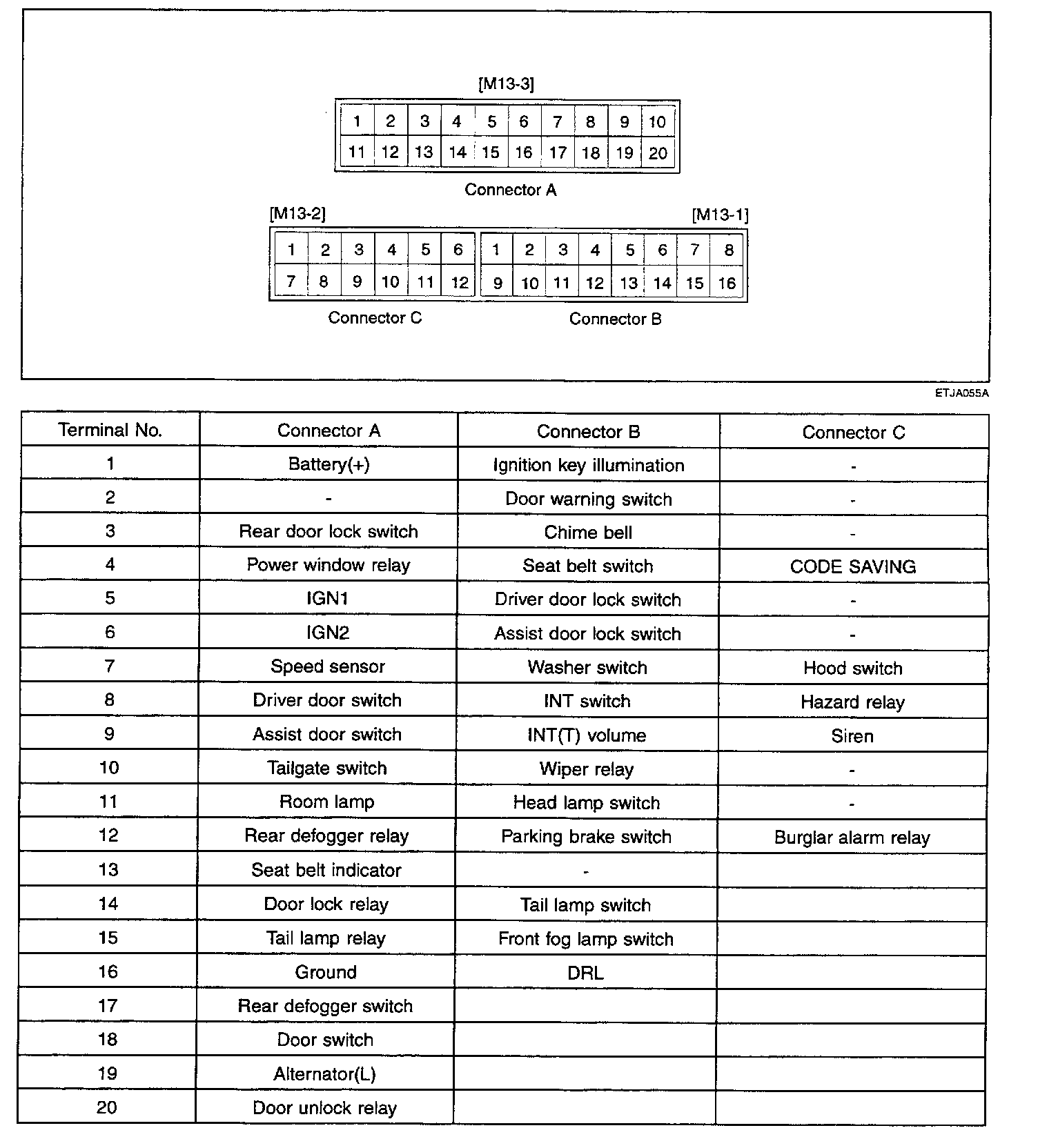

ETACS CM Pin Connection:
