Connector Locations

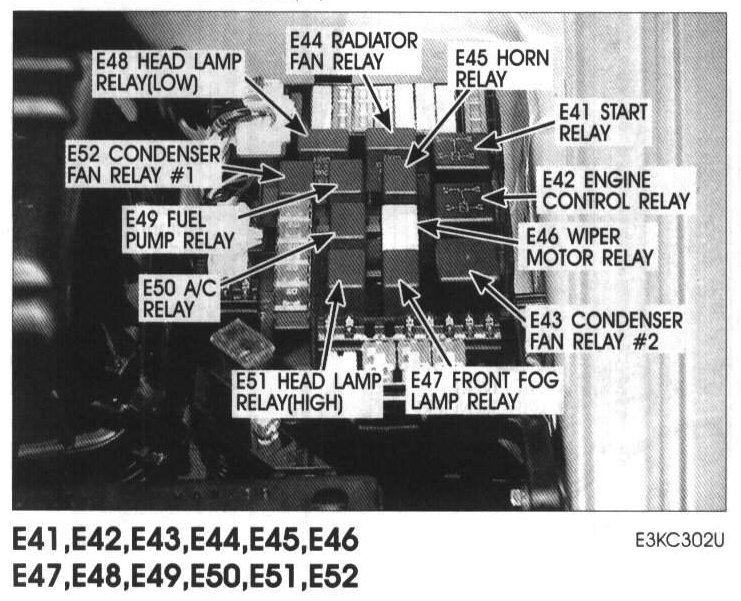

E48 Head Lamp Relay(Low), E44 Radiator Fan Relay, E45 Horn Relay, E41 Start Relay, E42 Engine Control Relay, E46 Wiper Motor Relay, E43 Condenser Fan Relay #2, E47 Front Fog Lamp Relay, E51 Head Lamp Relay (High), E50 A/C Relay, E49 Fuel Pump Relay, E52:
