Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

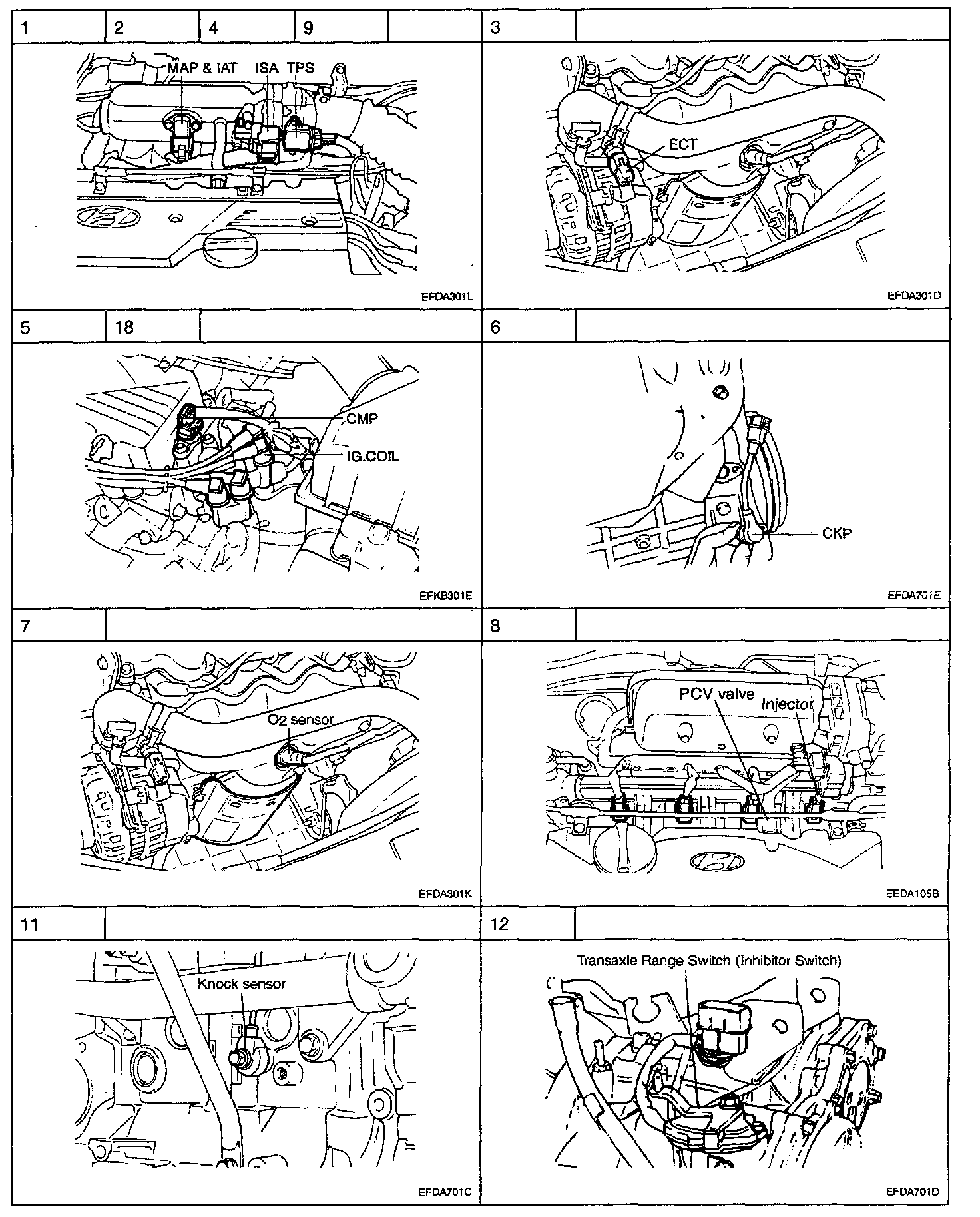

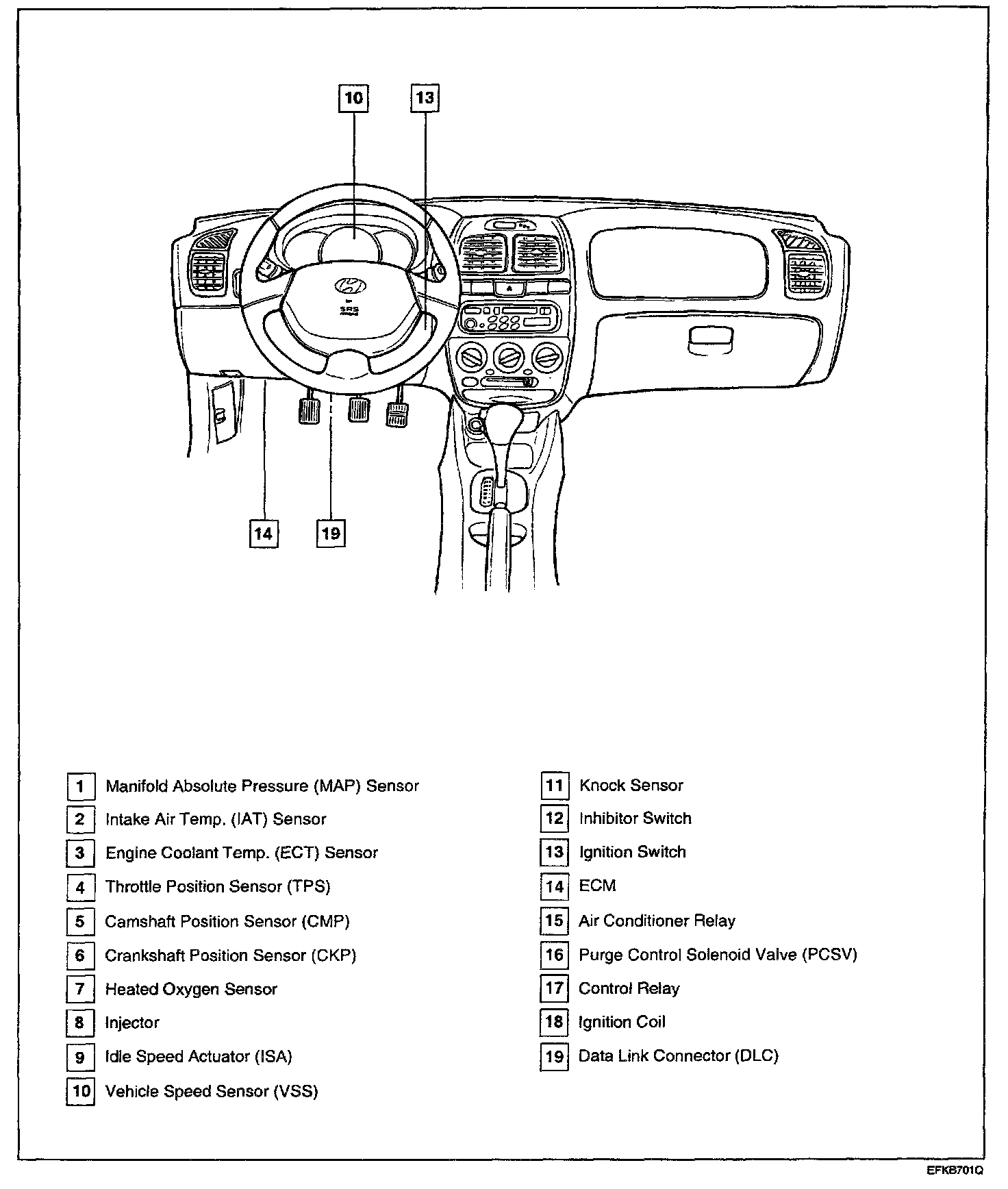

Emission Controls Location Part 1:

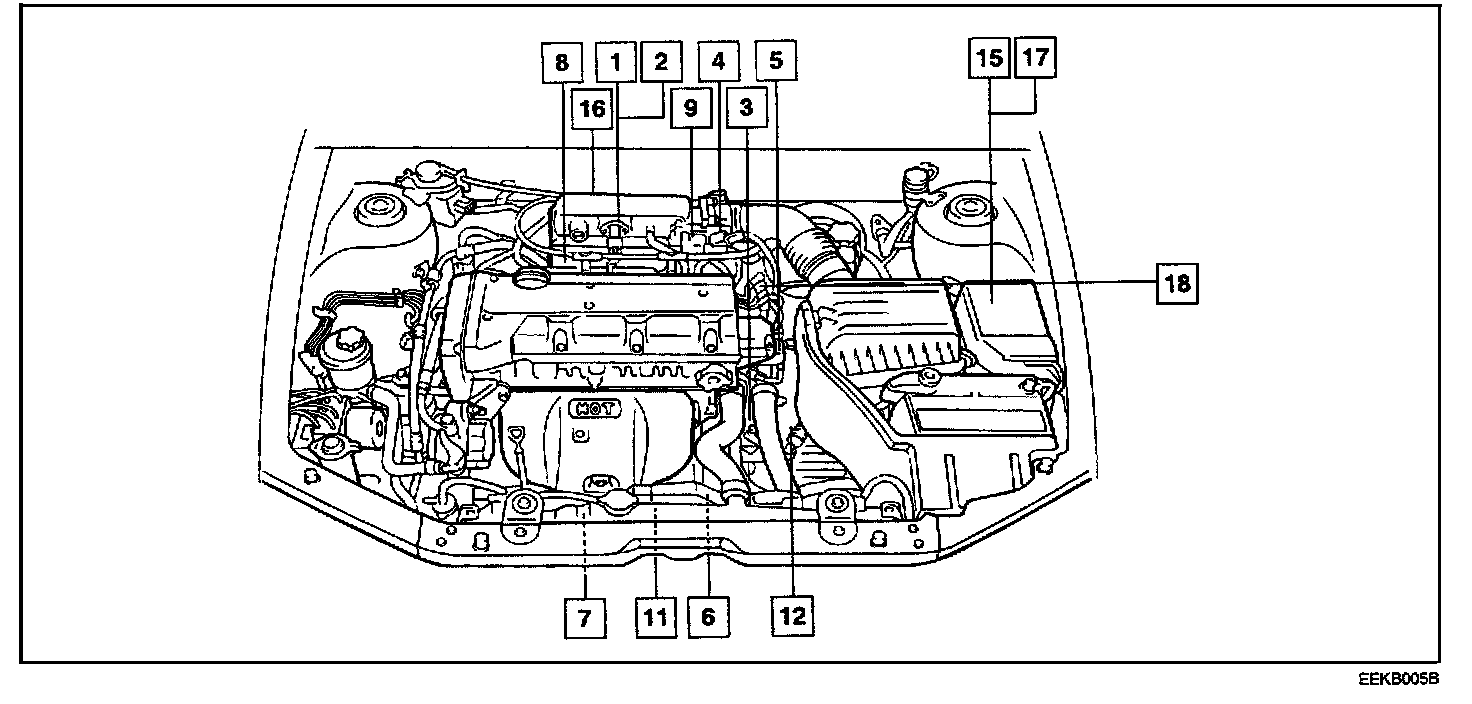

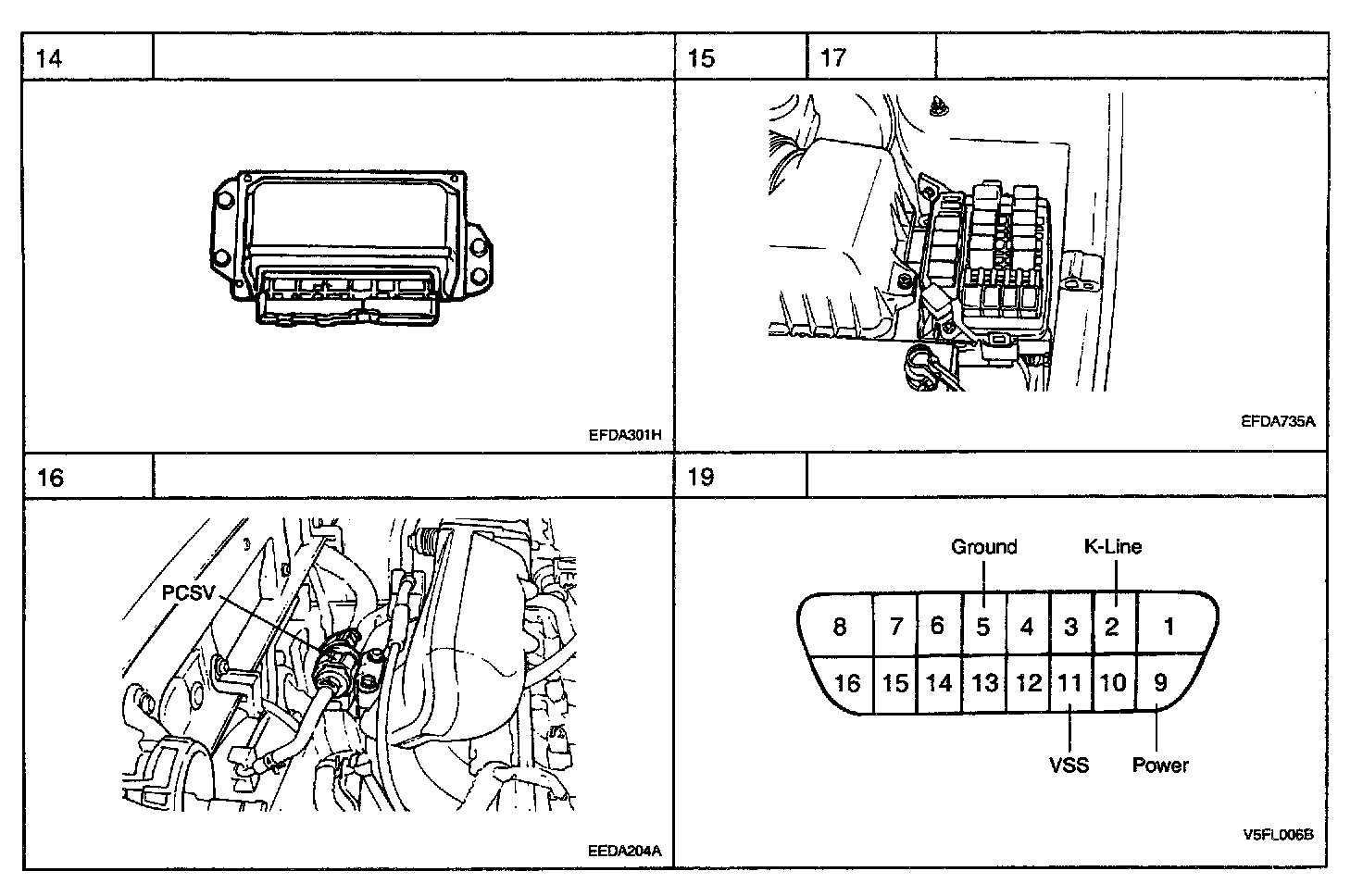

Emission Controls Location Part 2:











Image # 6 lacated at flywheel
