Symbols

Symbols Part 1:

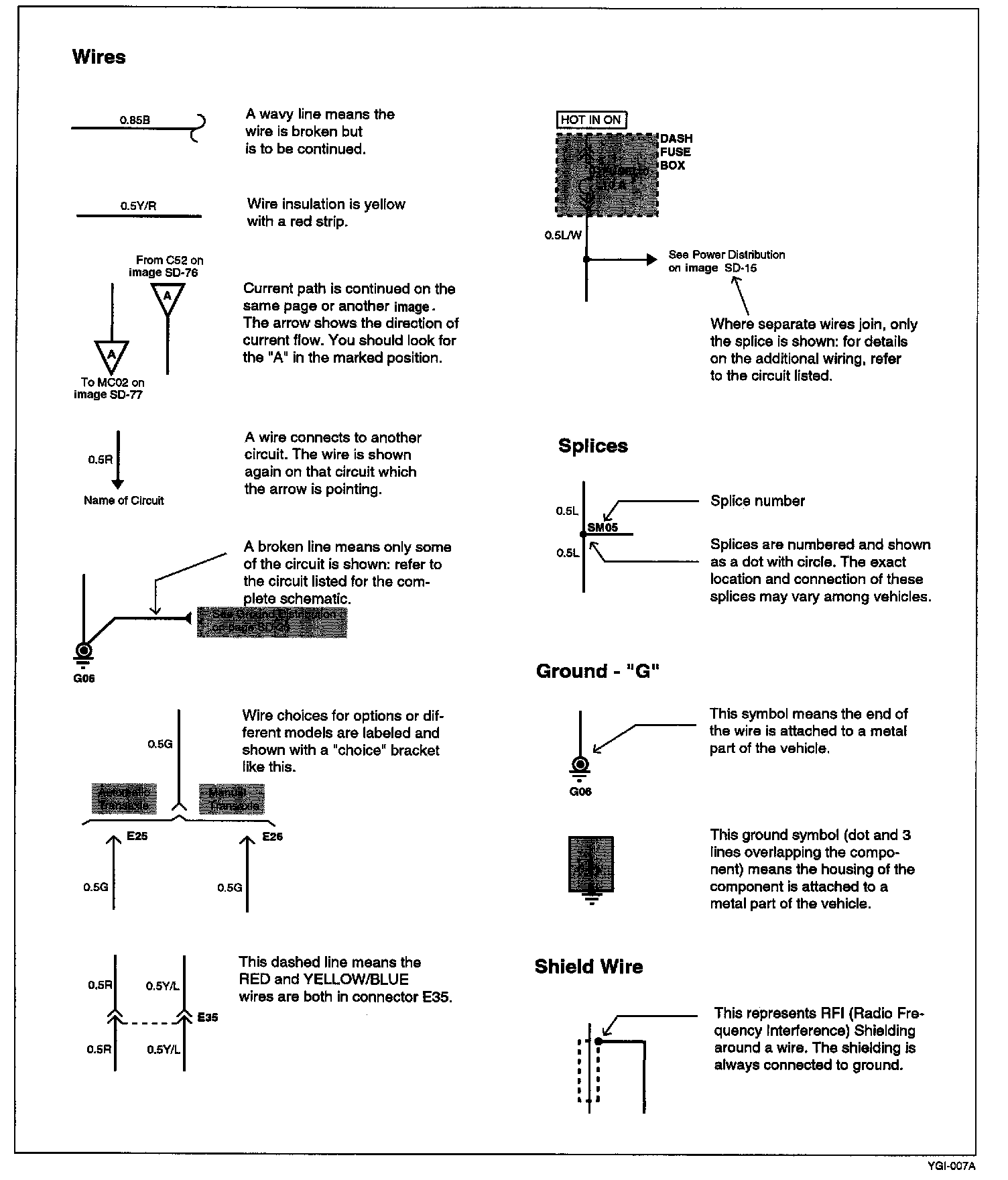

Symbols Part 2:




Symbols (Part 3 Of 3):




The symbols and abbreviations explained here are used throughout the information.
