Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

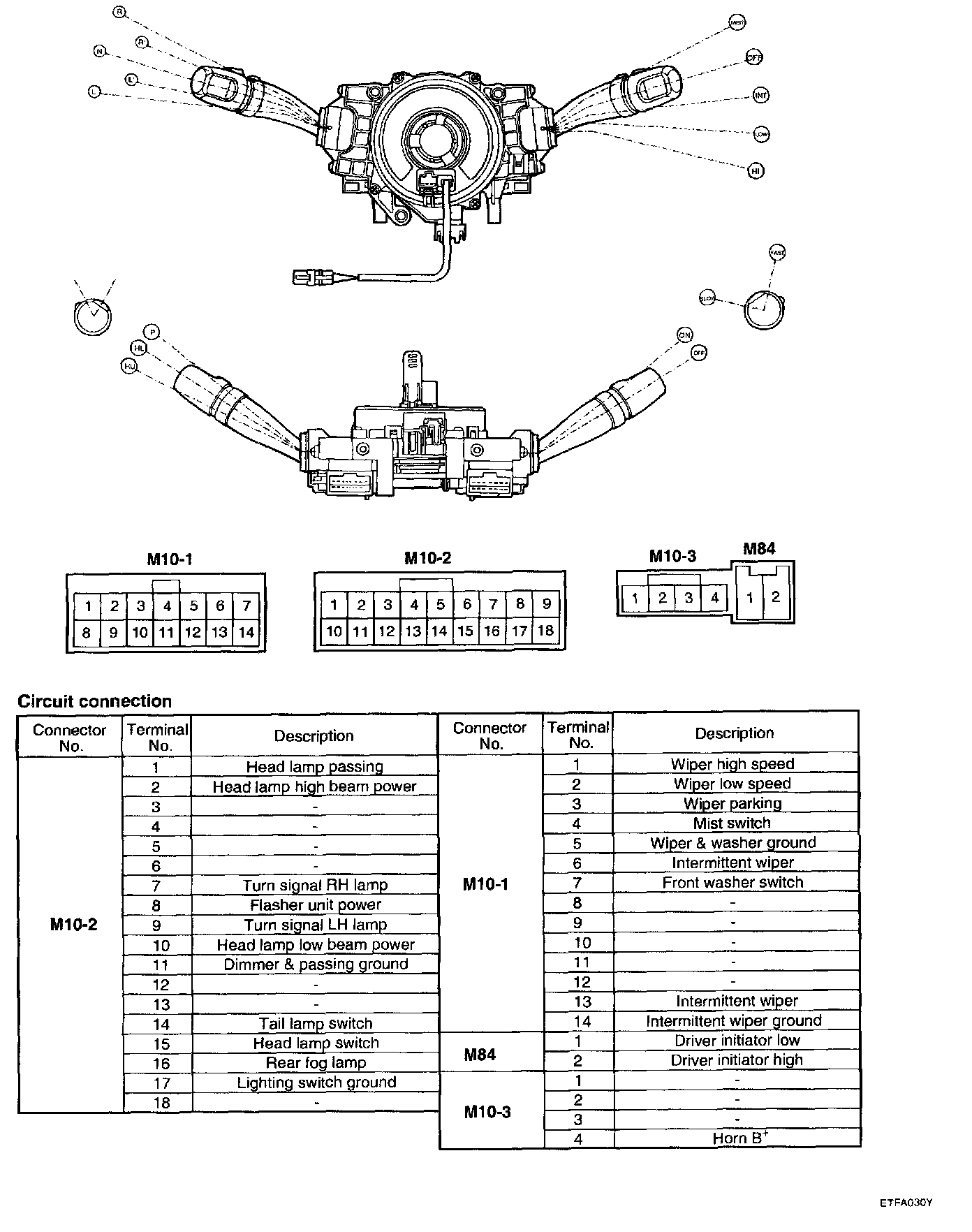

Multifunction Switch (Without Air Bag):

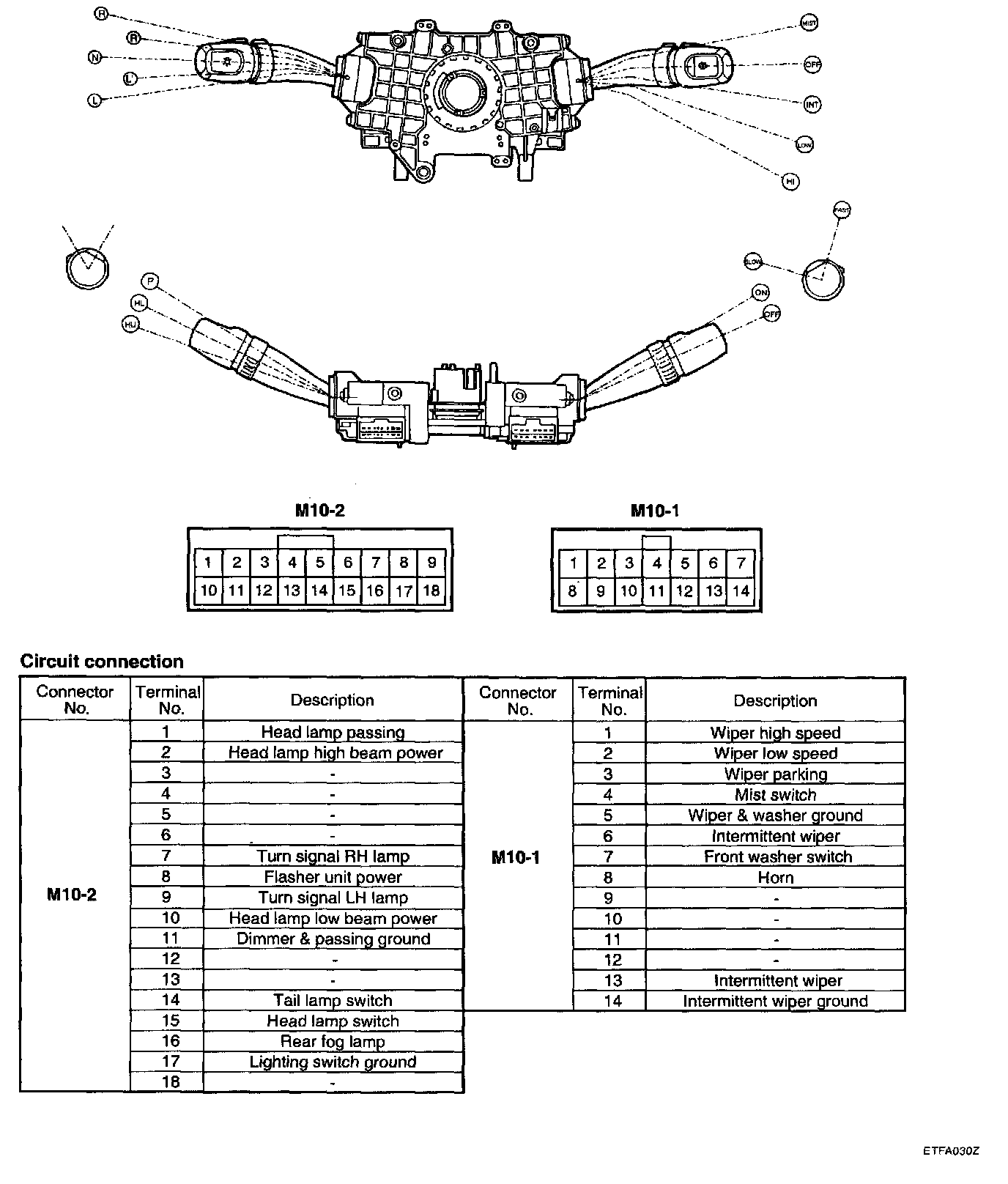

Multifunction Switch (With Air Bag):
