A/T Technical Data

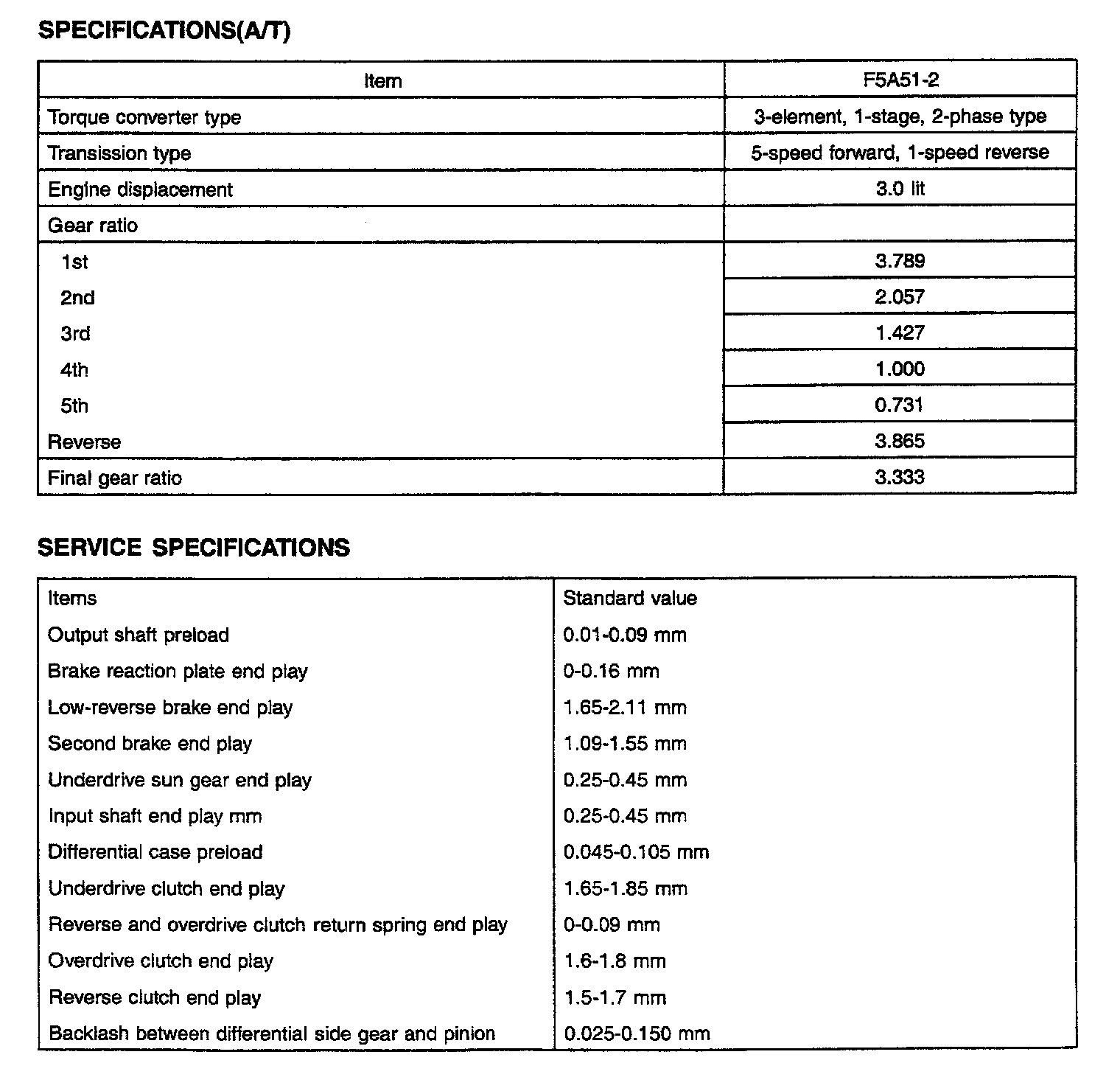

F5A51 5-spd A/T, Transmission Gear Ratios & Standard Values:

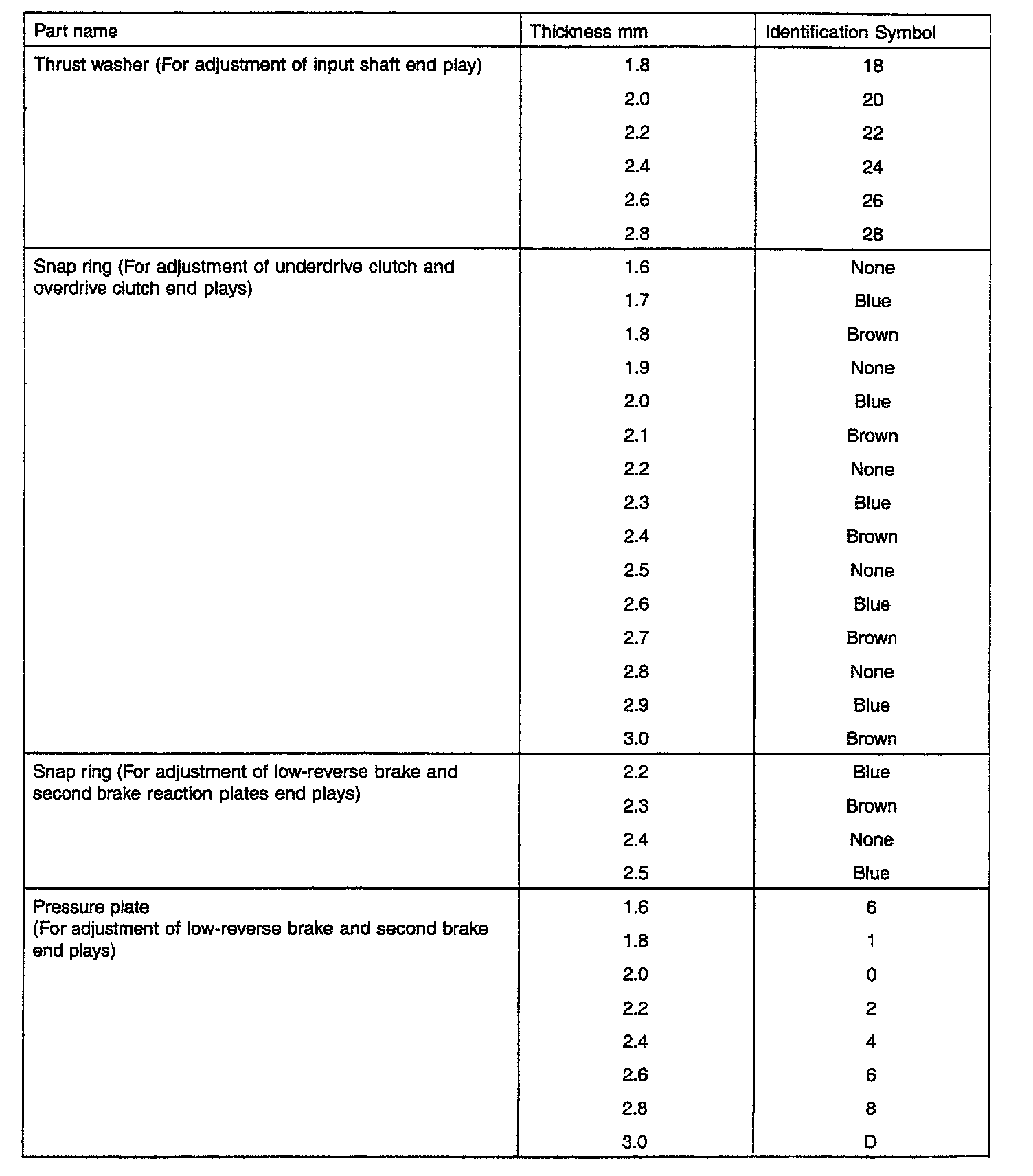

F5A51 5-spd A/T, Transaxle End Plays:

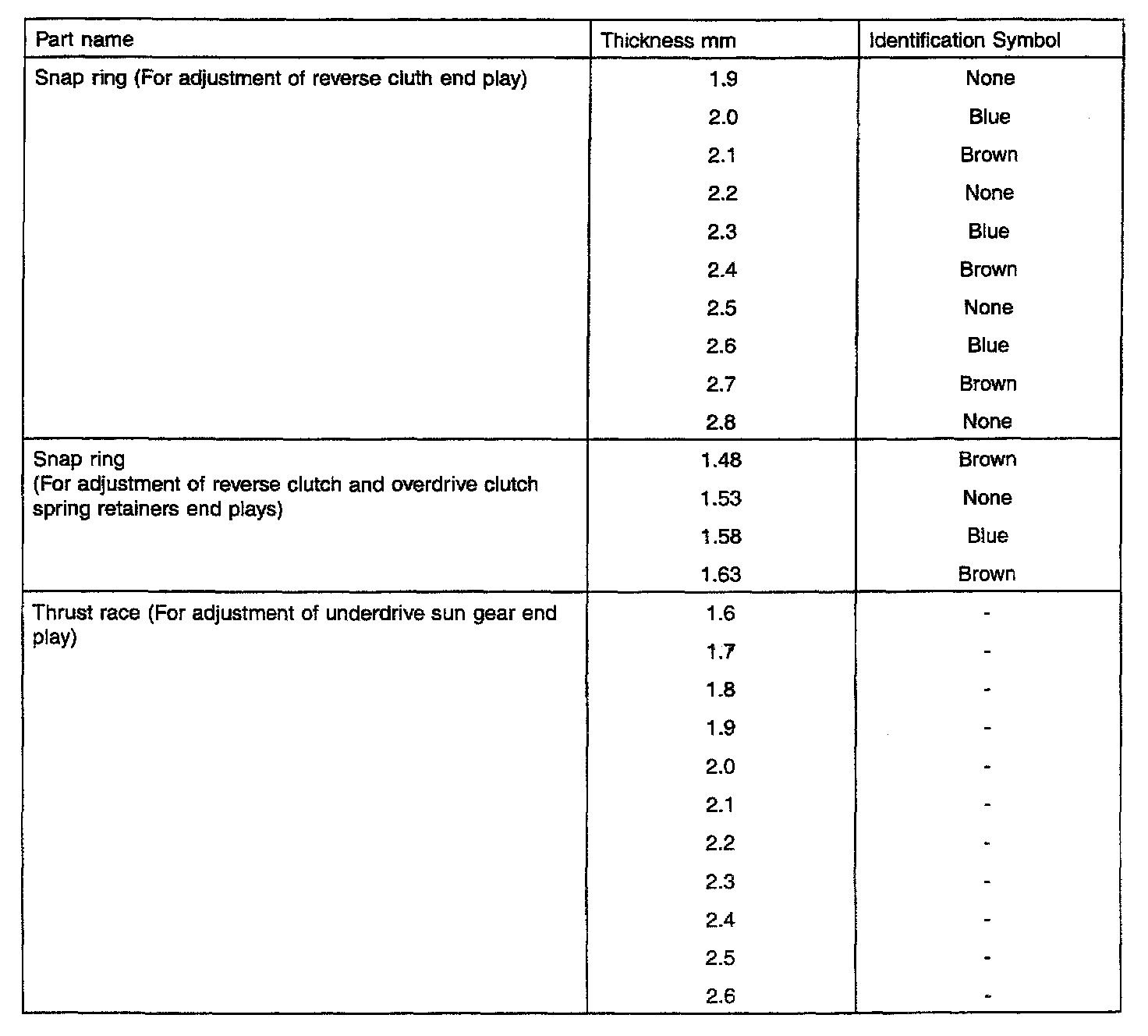

F5A51 5-spd A/T, Transaxle End Play:





F5A51 5-spd A/T, Transaxle Preload:

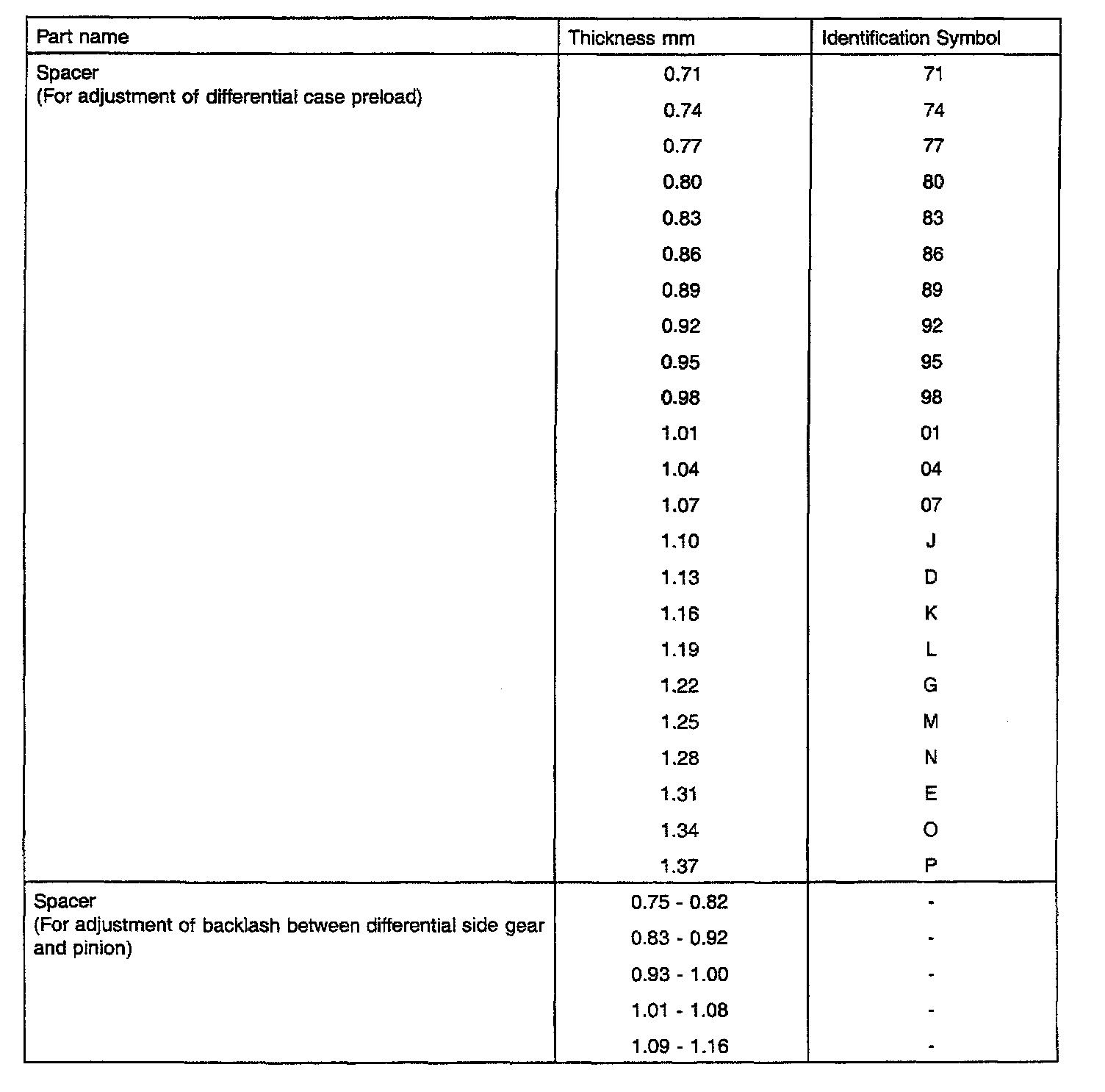

F5A51 5-spd A/T, Differential Case Preload & Side Gear/Pinion Backlash:





F5A51 5-spd A/T, Transaxle End Play:
