Connector Locations

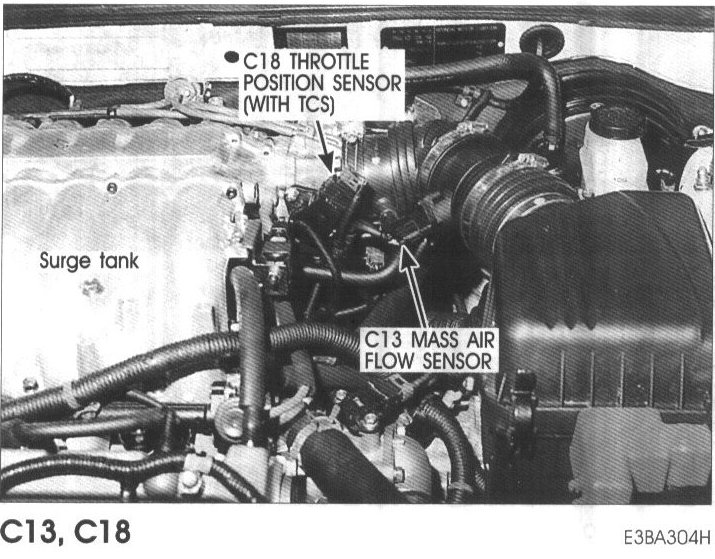

C13 Mass Air Flow Sensor, C18 Throttle Position Sensor:

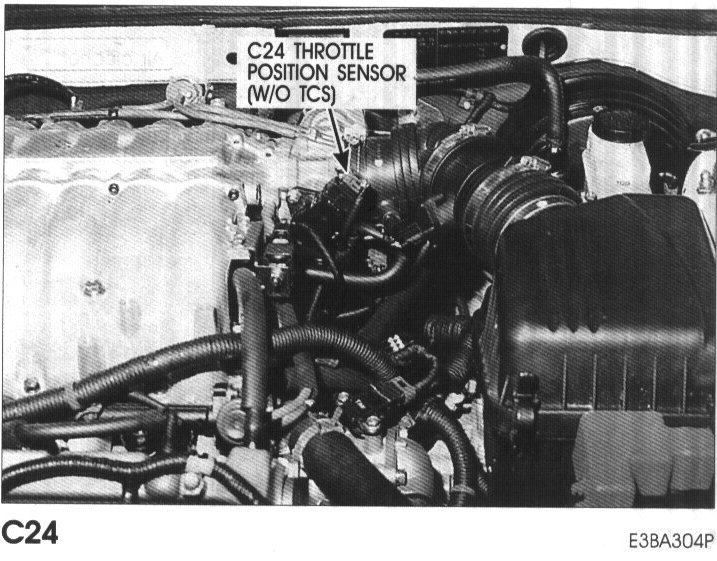

C24 Throttle Position Sensor (Without TCS):
