Symbols

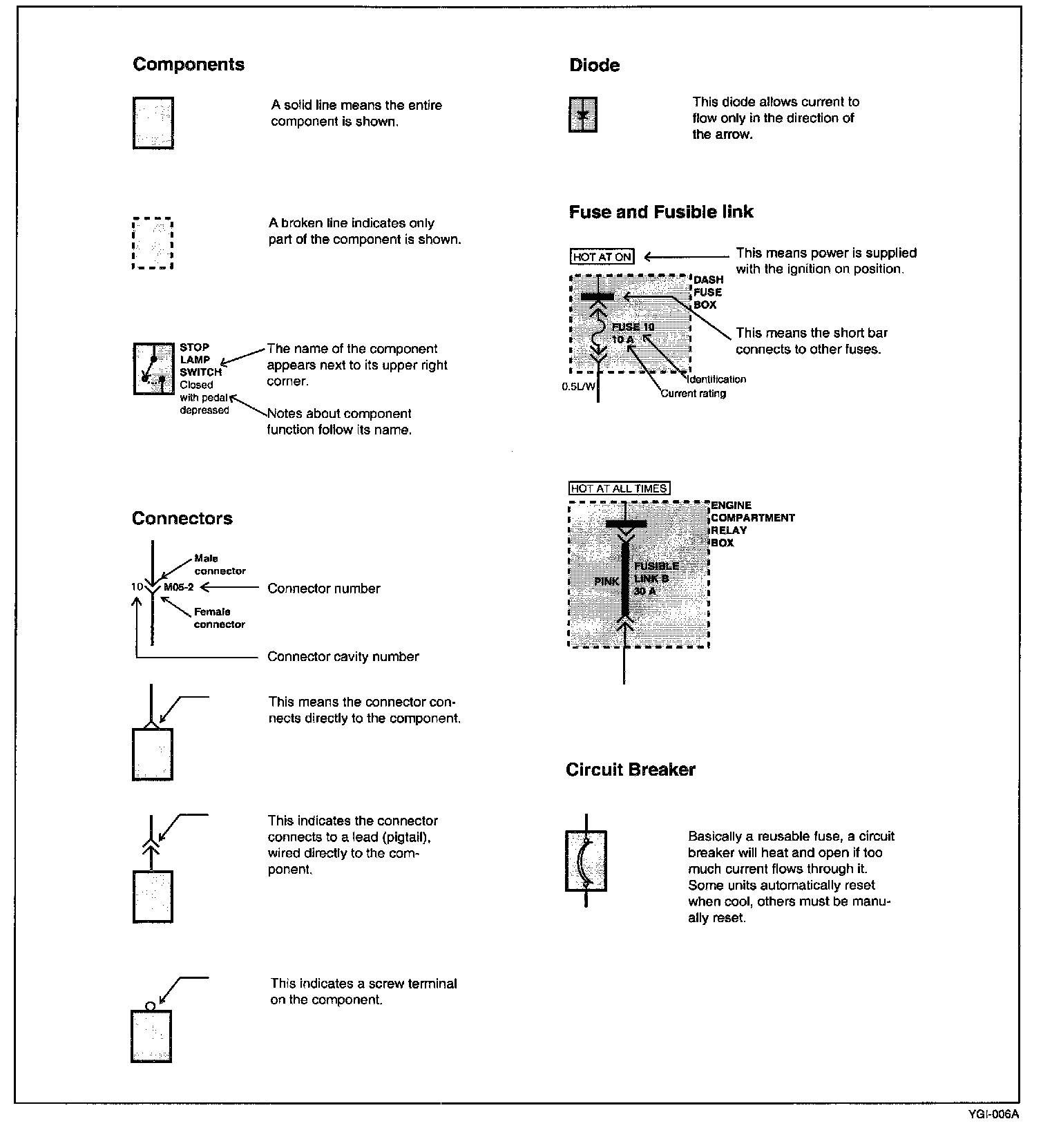

Part 1:





SYMBOLS
The symbols and abbreviations explained here are used throughout the information.

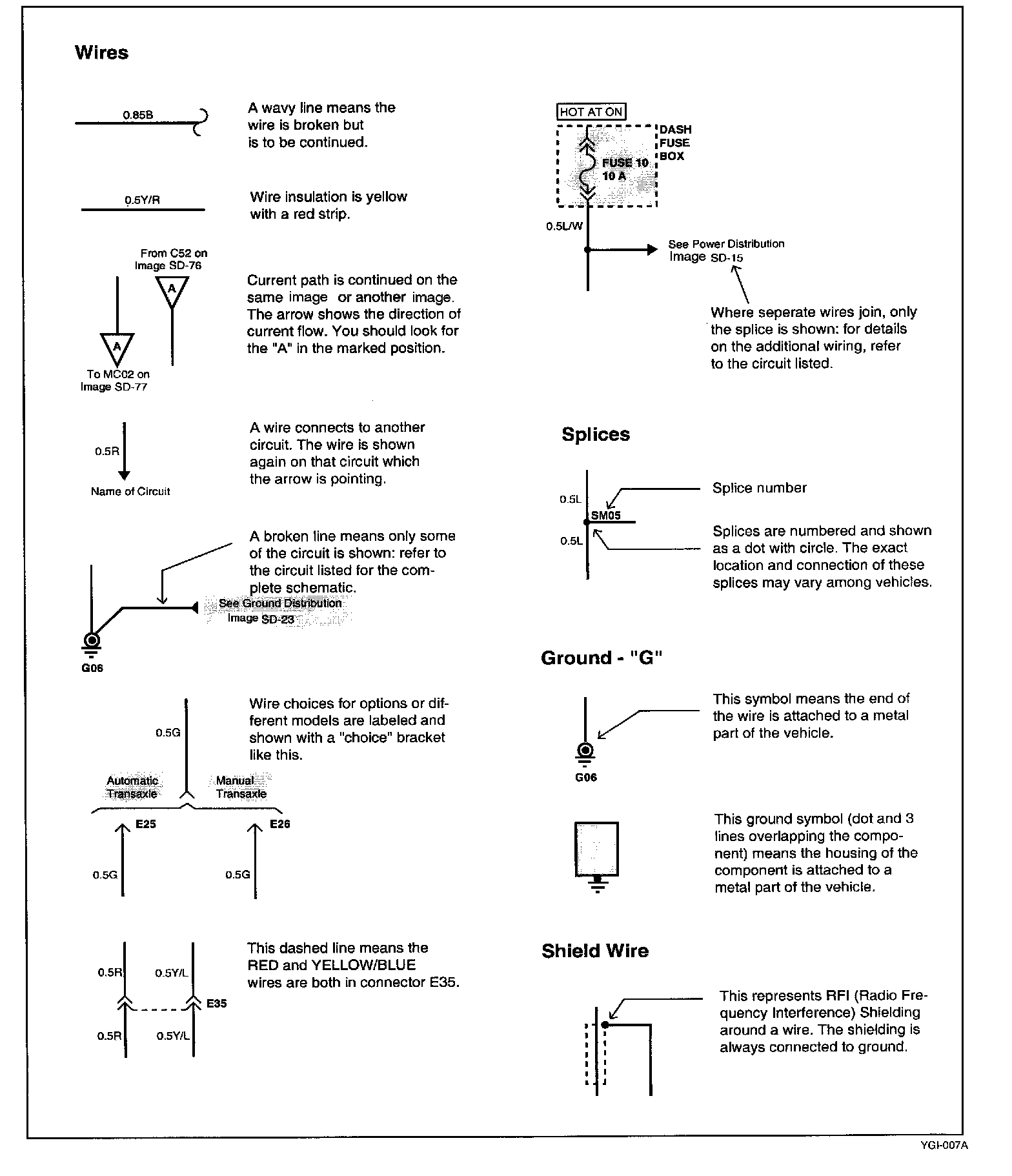

Part 2:




Symbols (Part 3 Of 3):




SYMBOLS IN SCHEMATIC
