Automatic Transaxle Shift Control: Installation

Apply a coating of the specified grease to the interior of the bushing.
Specified grease:

Chassis grease SAE J310,NLGL No.0

Fig 1: View Of Shift Lever
Move the shift lever and the transaxle range switch to the N position, and install the control cable.

Fig 2: Identifying Transaxle Range Switch In Neutral
When connecting the control cable to the transaxle mounting bracket, install the clip until it contacts the control cable.

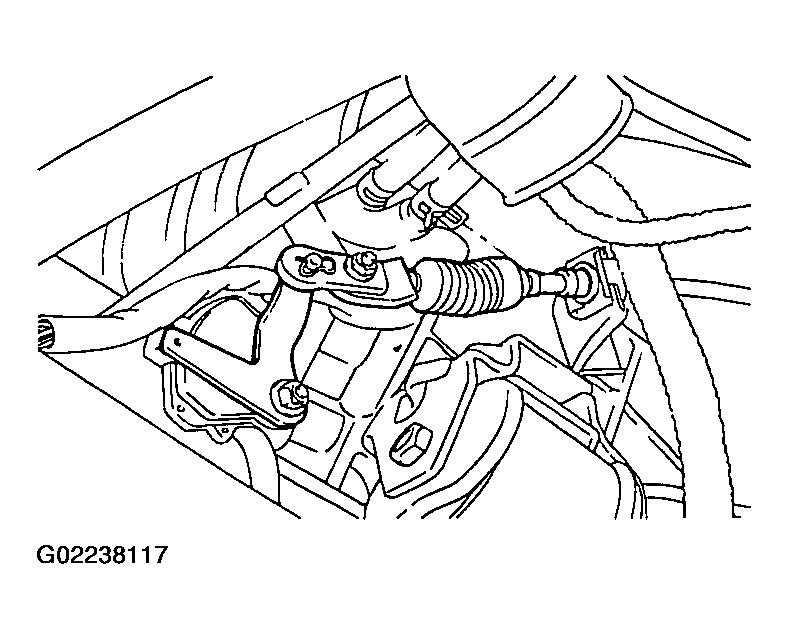

Fig 3: Connecting Control Cable
Install the bolt-washer assembly and nut.

Fig 4: Installing Bolt-Washer Assembly & Nut
Install the clip pin and the lock pin. (shift lever side).

Fig 5: Installing Clip Pin & Lock Pin
Connect the position indicator light connector, the O/D switch connector, the parking position switch connector, normal/economy select switch connector and the shift lock solenoid connector.
Install the shift lever indicator assembly.

Fig 6: Installing Shift Lever Indicator Assembly
Apply the specified grease at the place shown in the figure.
Standard value (A)

15.2-15.9 mm (0.598-0.625 in.)

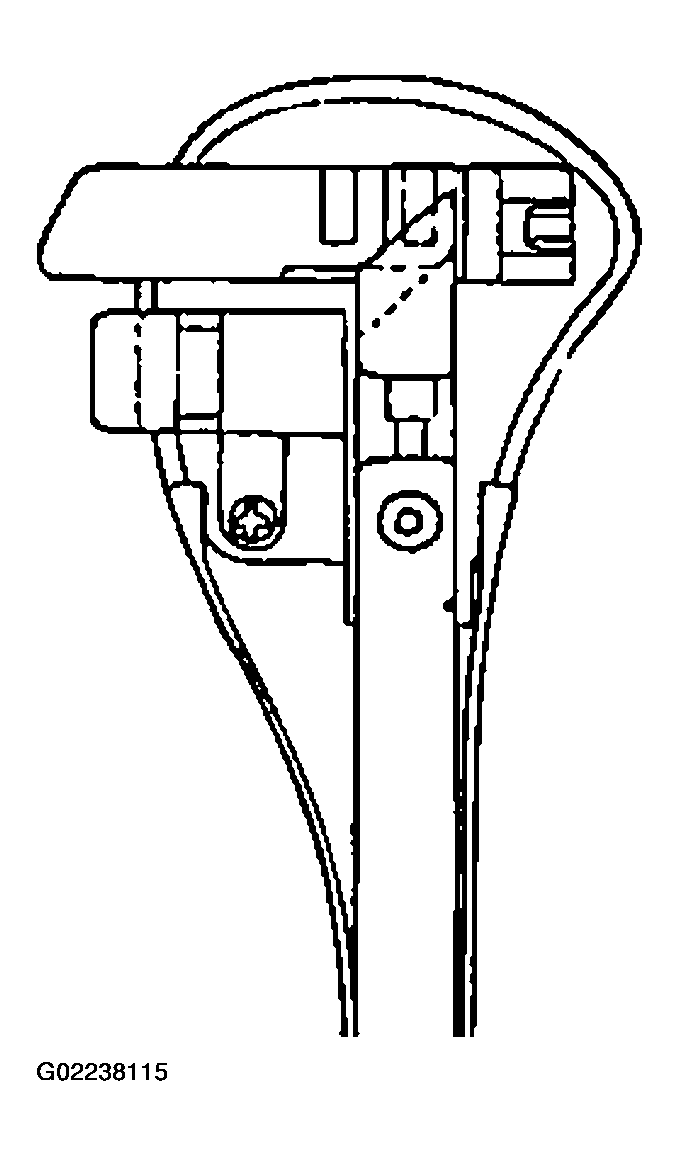

Fig 7: Identifying Specified Grease Points
Place the shift lever in the N position, and then turn the cam adjusting so that the clearance between the cam adjusting and the lever assembly end in within the standard value.
Standard value (A):

15.2-15.9 mm (0.598-0.625 in.)

NOTE: Be sure to B of the adjusting cam to the push button (driver's side).

Fig 8: Identifying Standard Value
Insert the O/D switch wiring to the shift lever cover, and then assemble the pin into the O/D switch connector.

Fig 9: Insert The O/D Switch Wiring To The Shift Lever Cover
Install the selector knob assembly.
NOTE: When replacing with a new one, remove the new 3 connector pins first.
Install the console box.
