Control Module HVAC

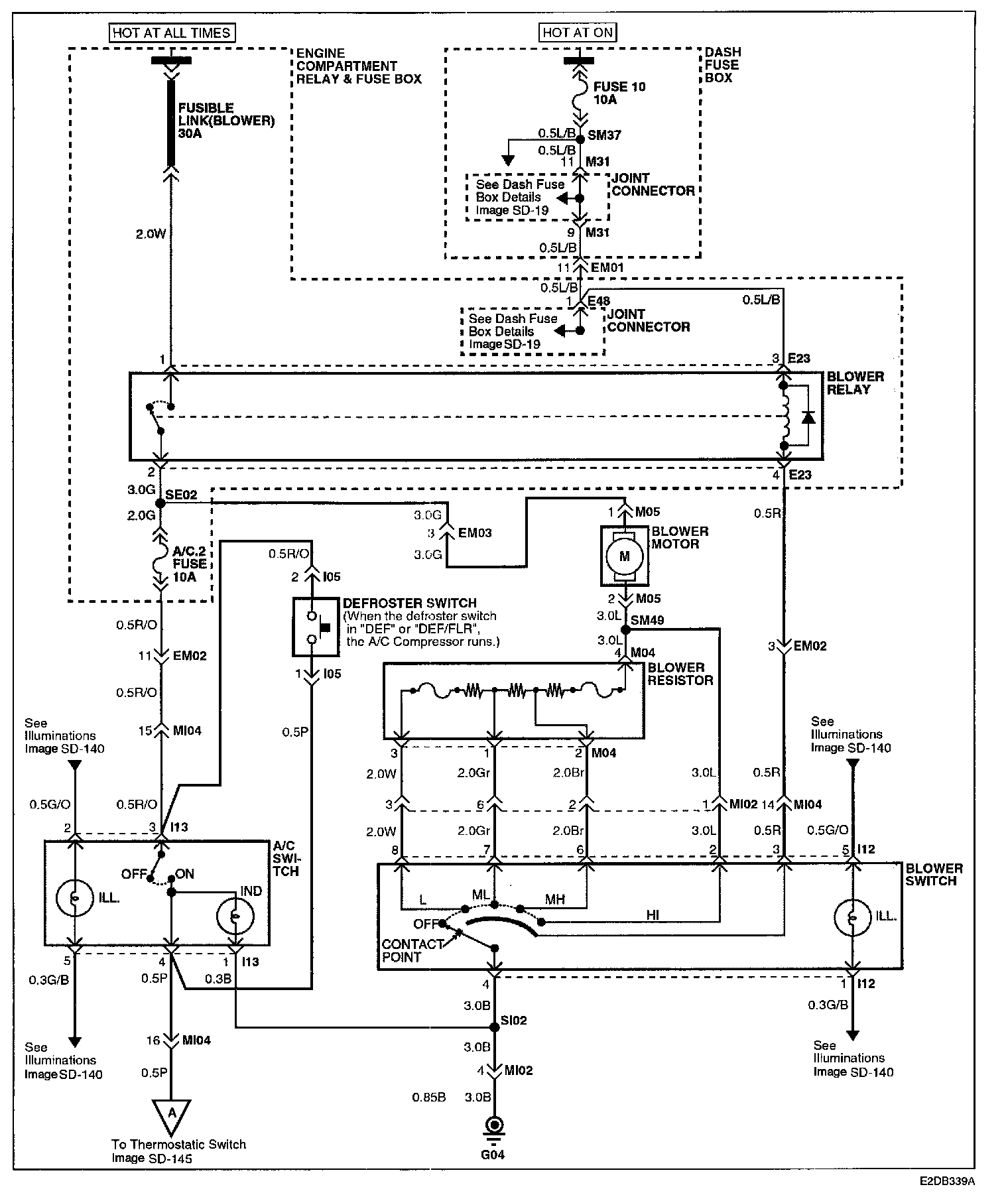

Image SD-144 - Blower And A/C Controls (1):

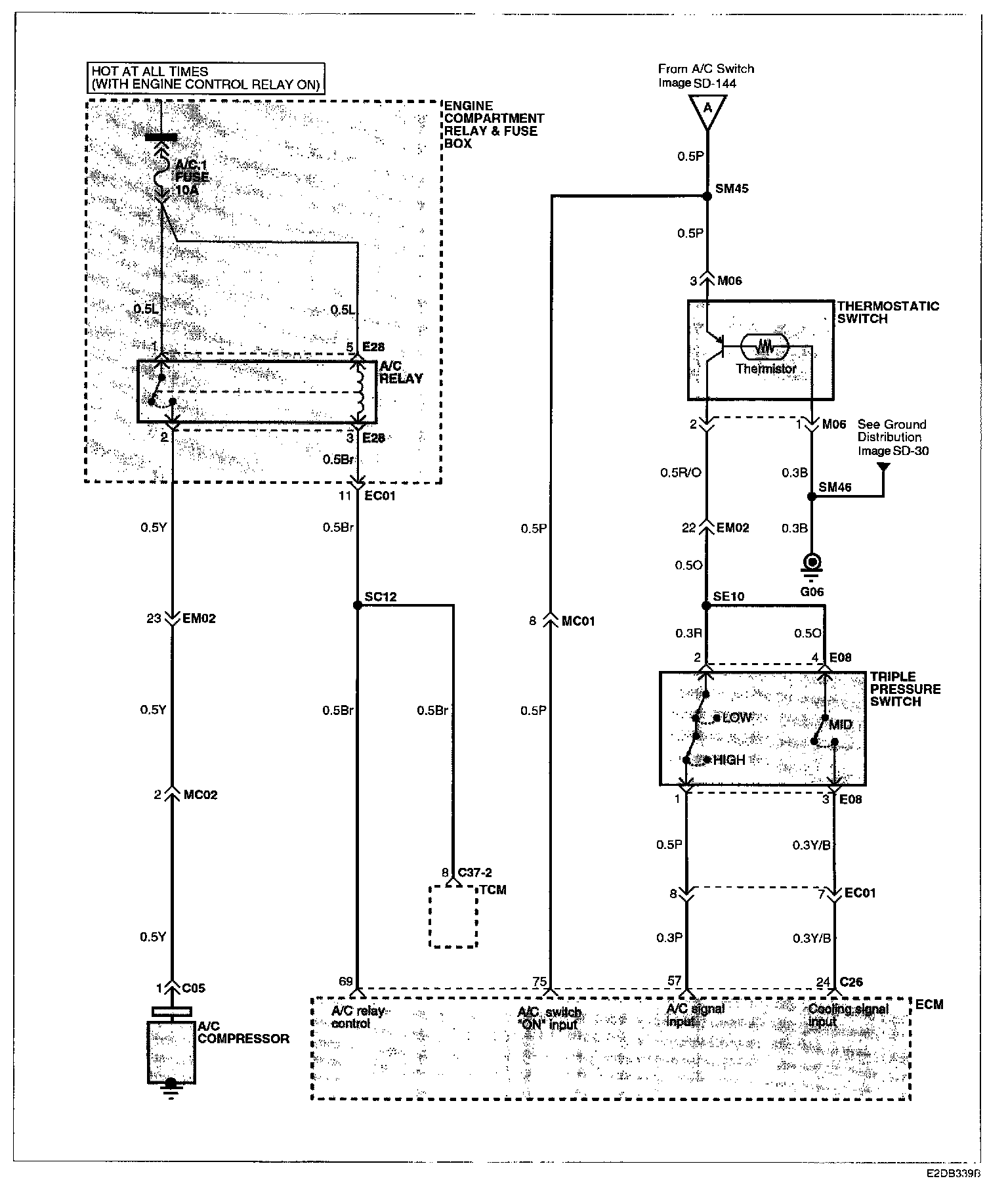

Image SD-145 - Blower And A/C Controls (2):
