Ignition Coil: Testing and Inspection

17 Ignition Coil:




When the ignition power transistor is turned ON by the signal from the ECM. It sends the signal to the ignition coil, then primary current is shut off and a high voltage is induced in the secondary coil.

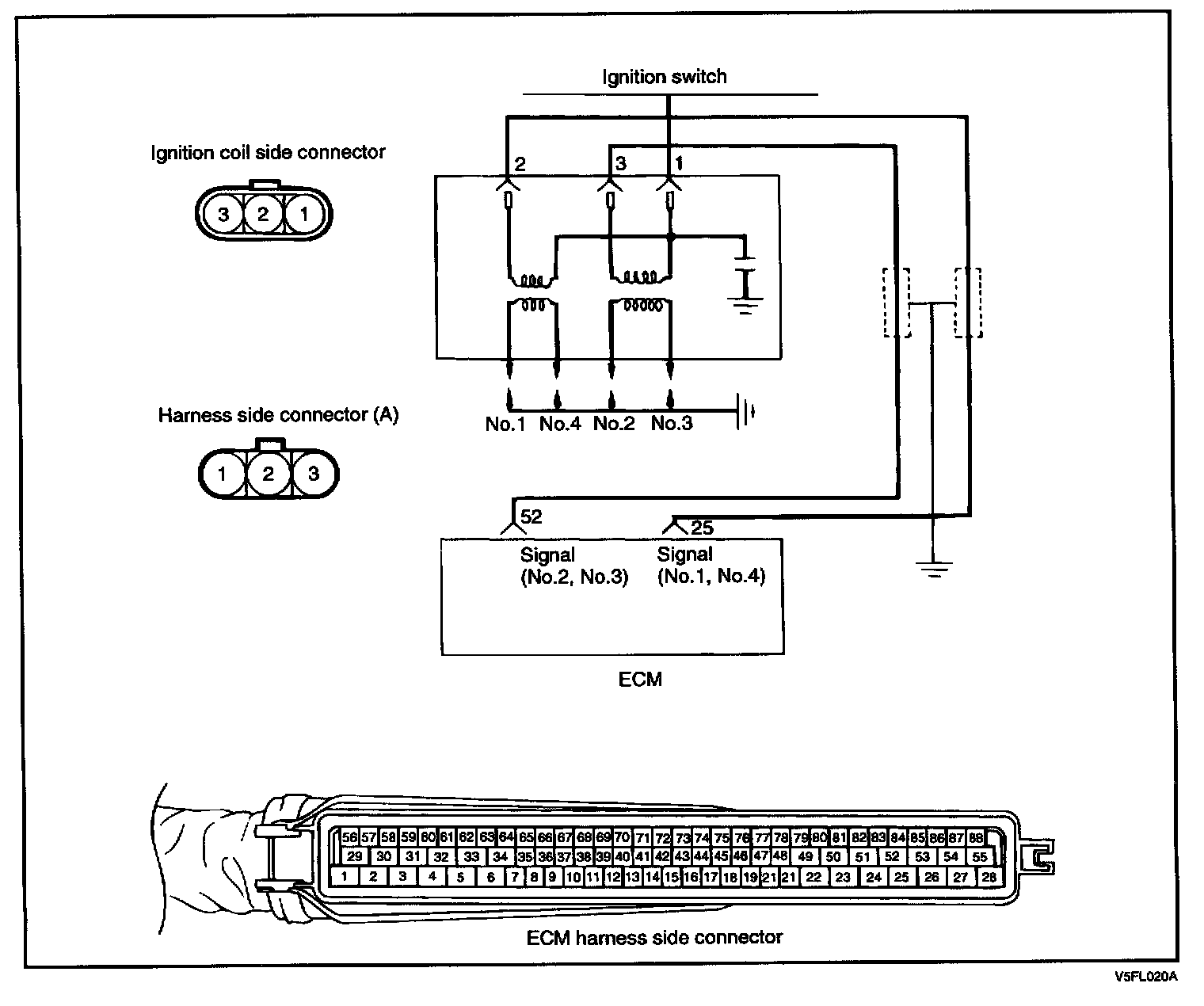

Circuit Diagram:

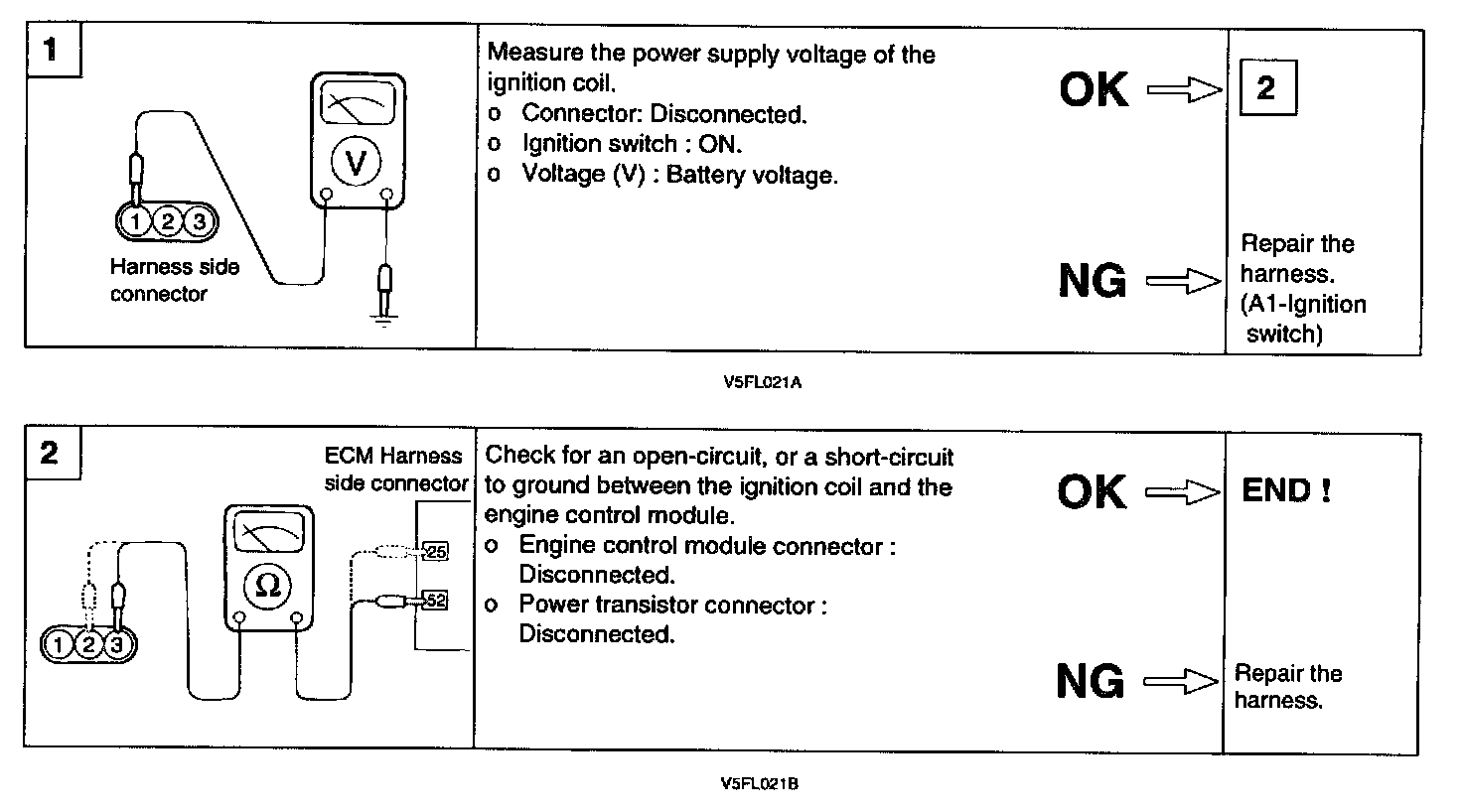

Harness Inspection Procedure (Steps 1 - 2):
