System Diagram

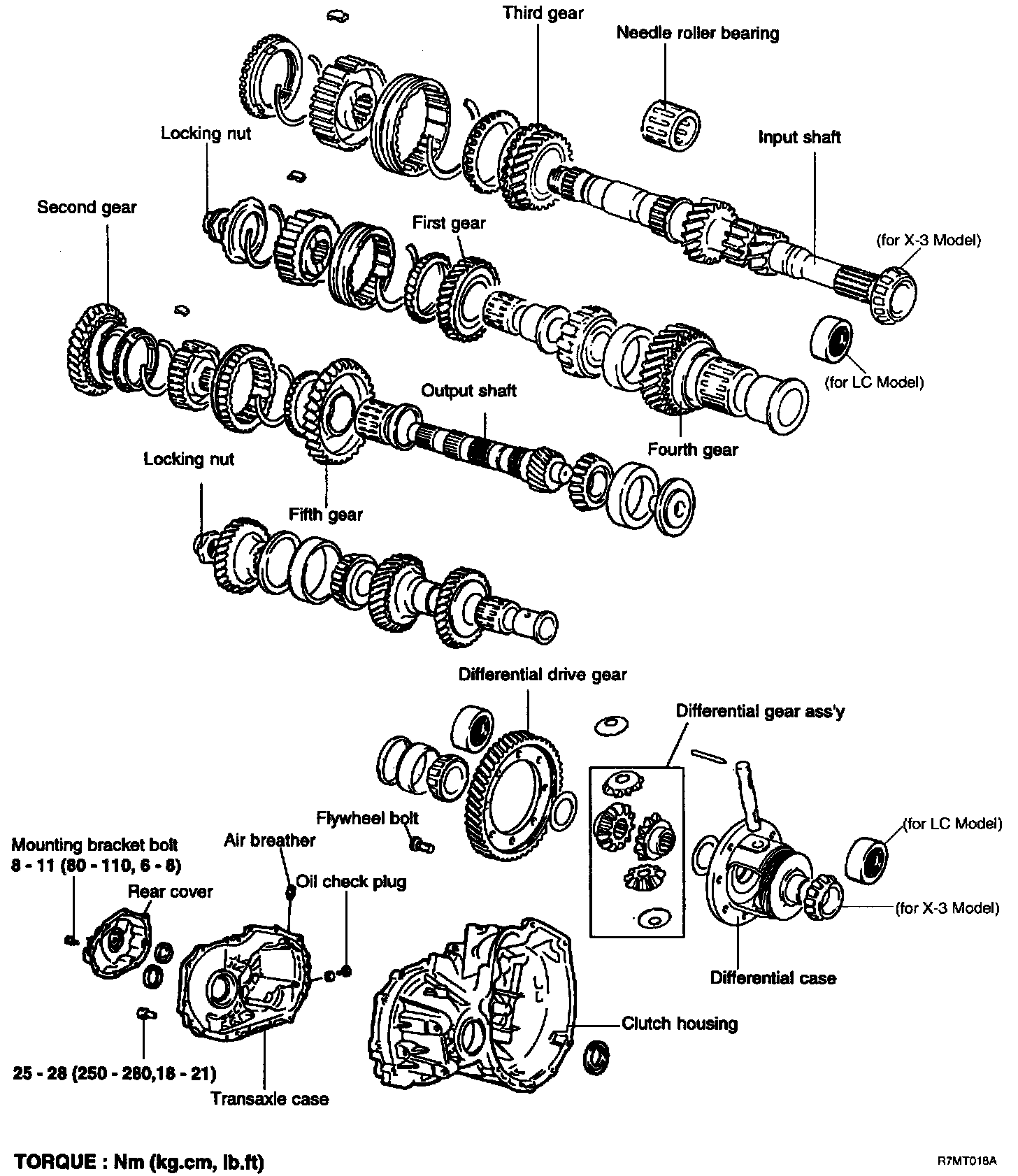

MANUAL TRANSAXLE

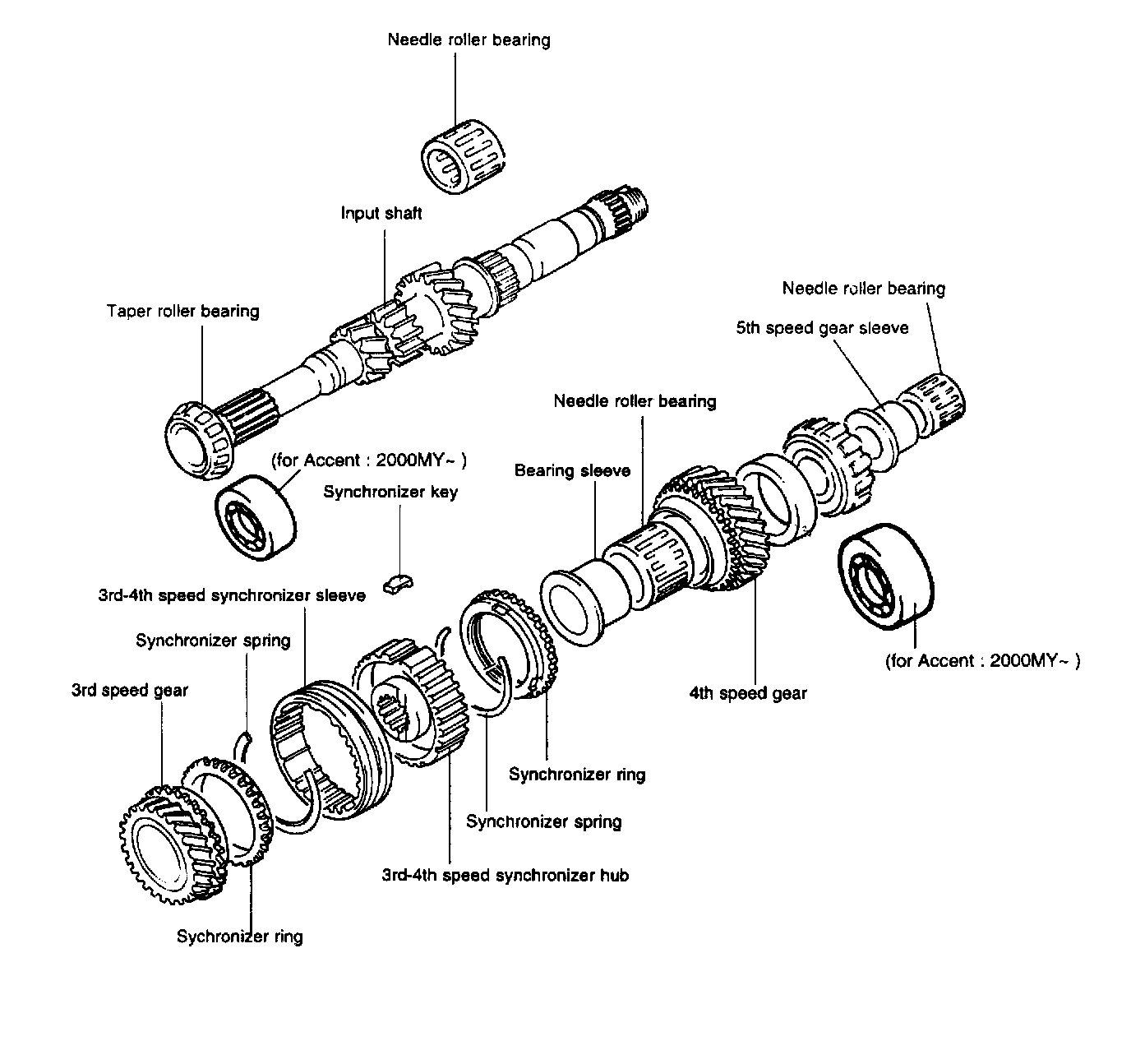

INPUT SHAFT

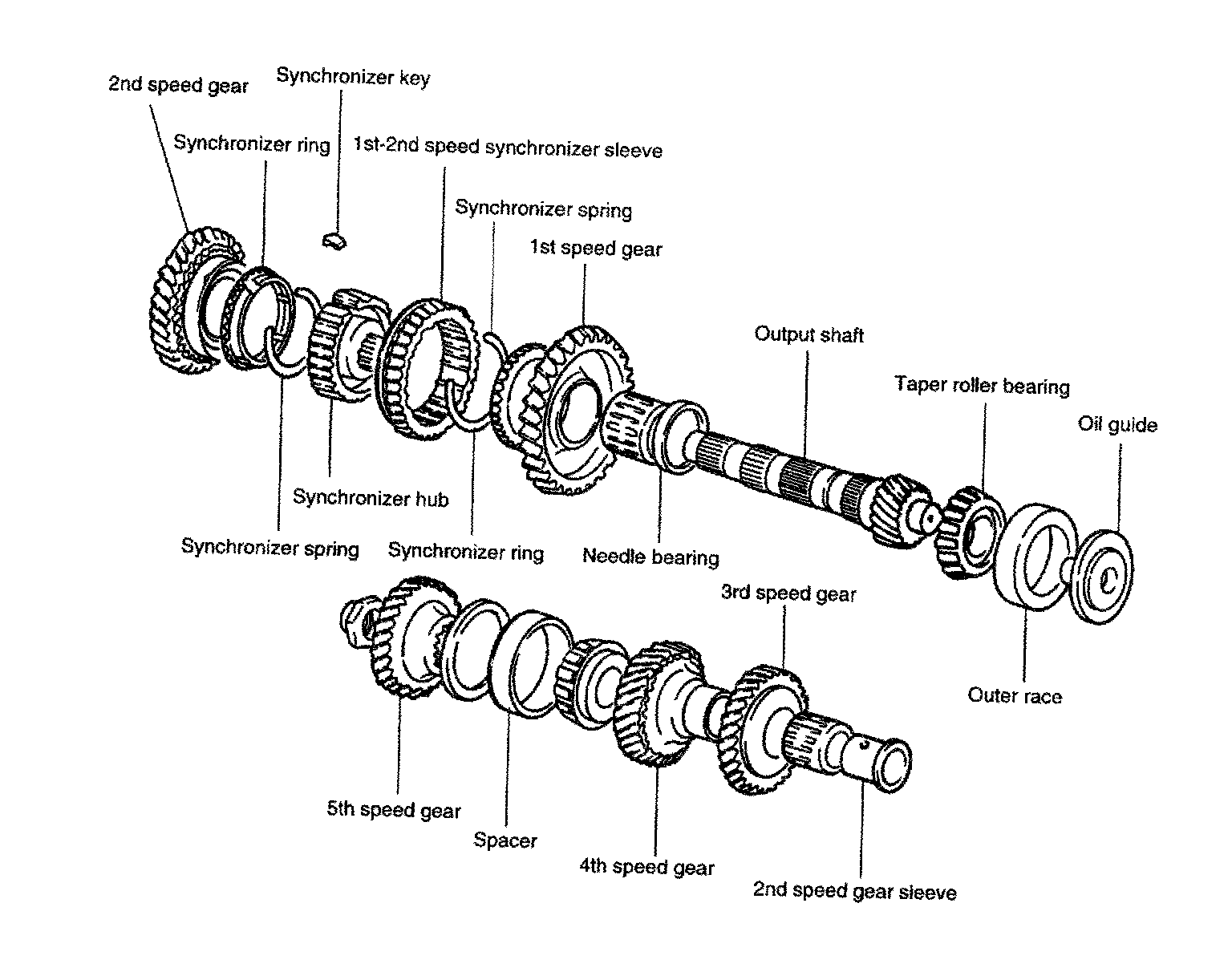

OUTPUT SHAFT

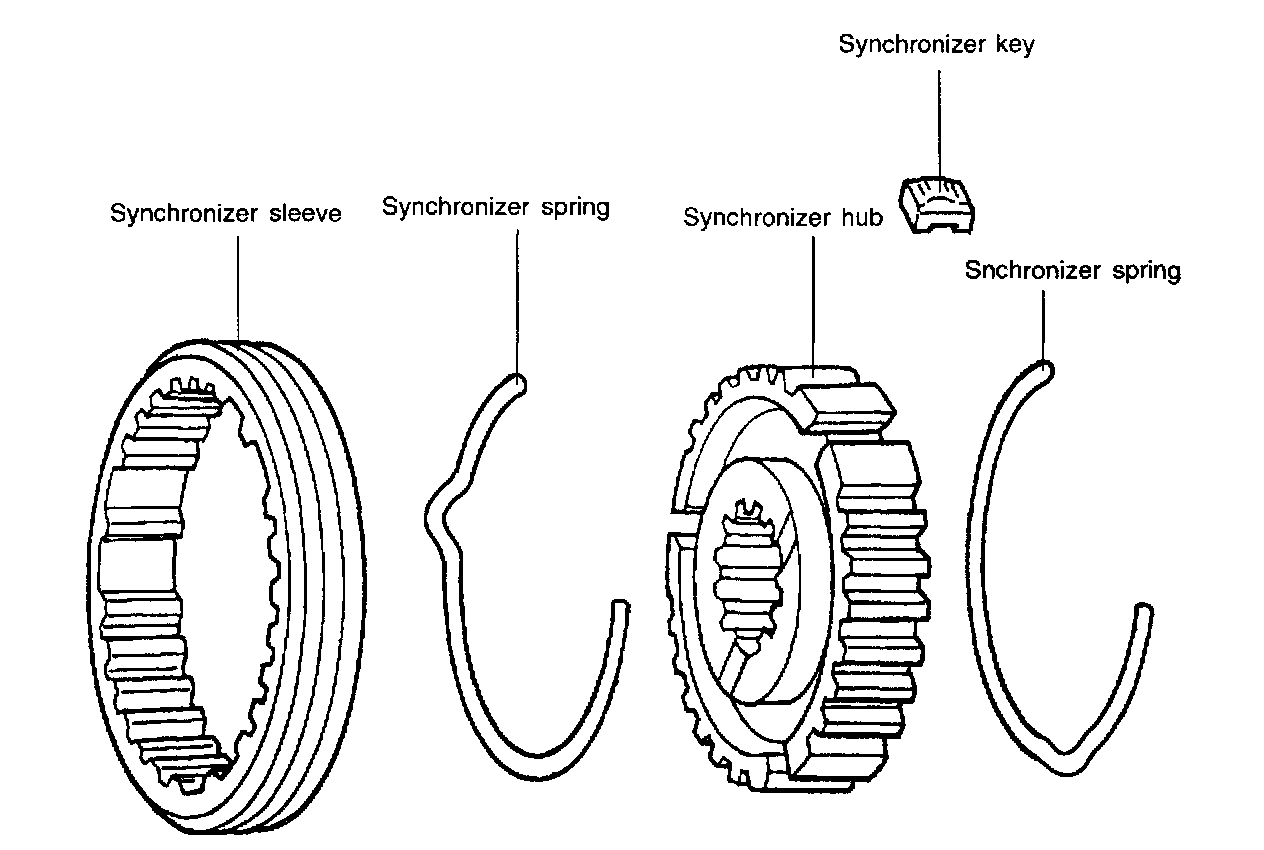

FIFTH SPEED SYNCHRONIZER ASSEMBLY

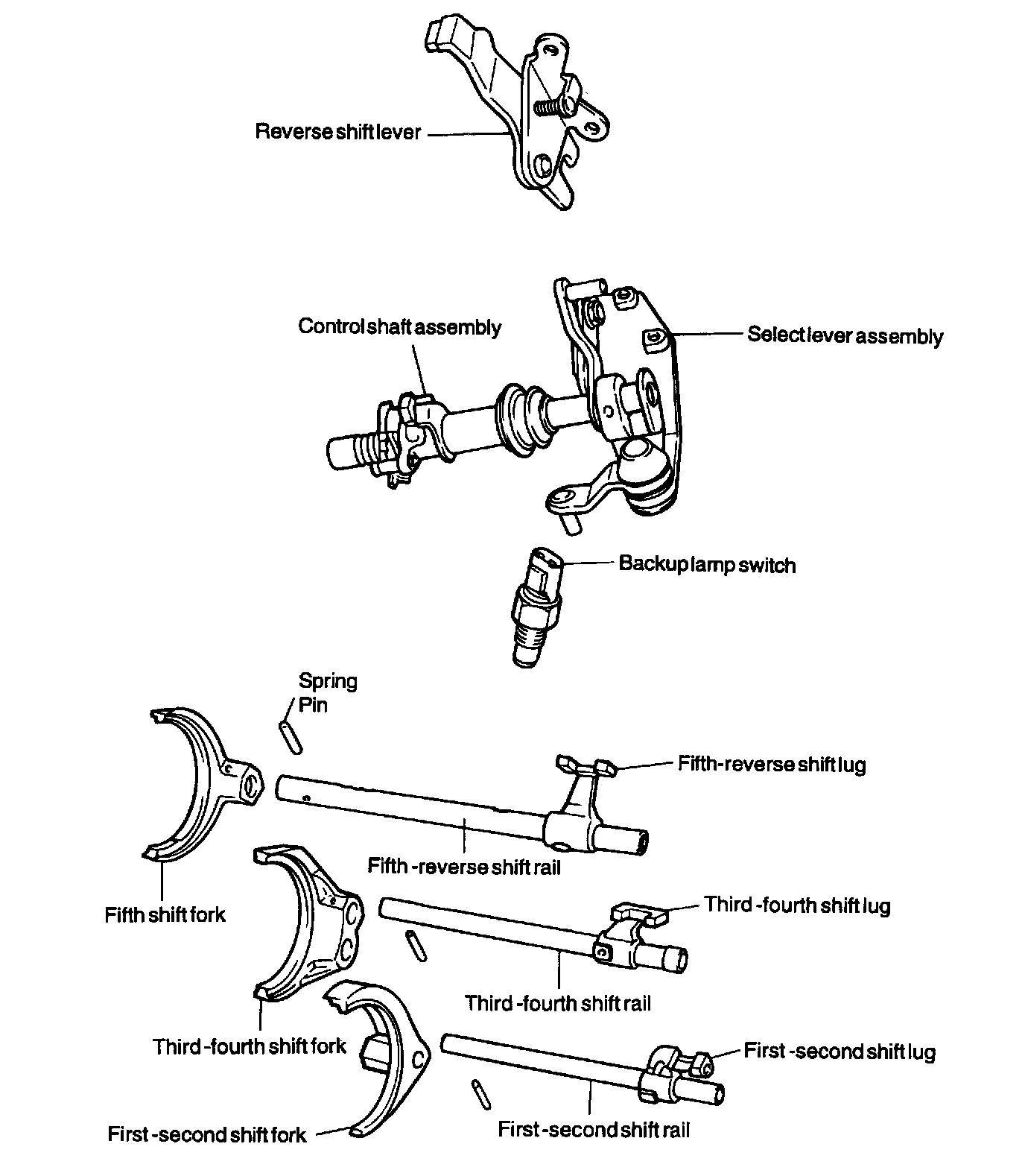

SHIFT FORK AND CONTROL SHAFT ASSEMBLY

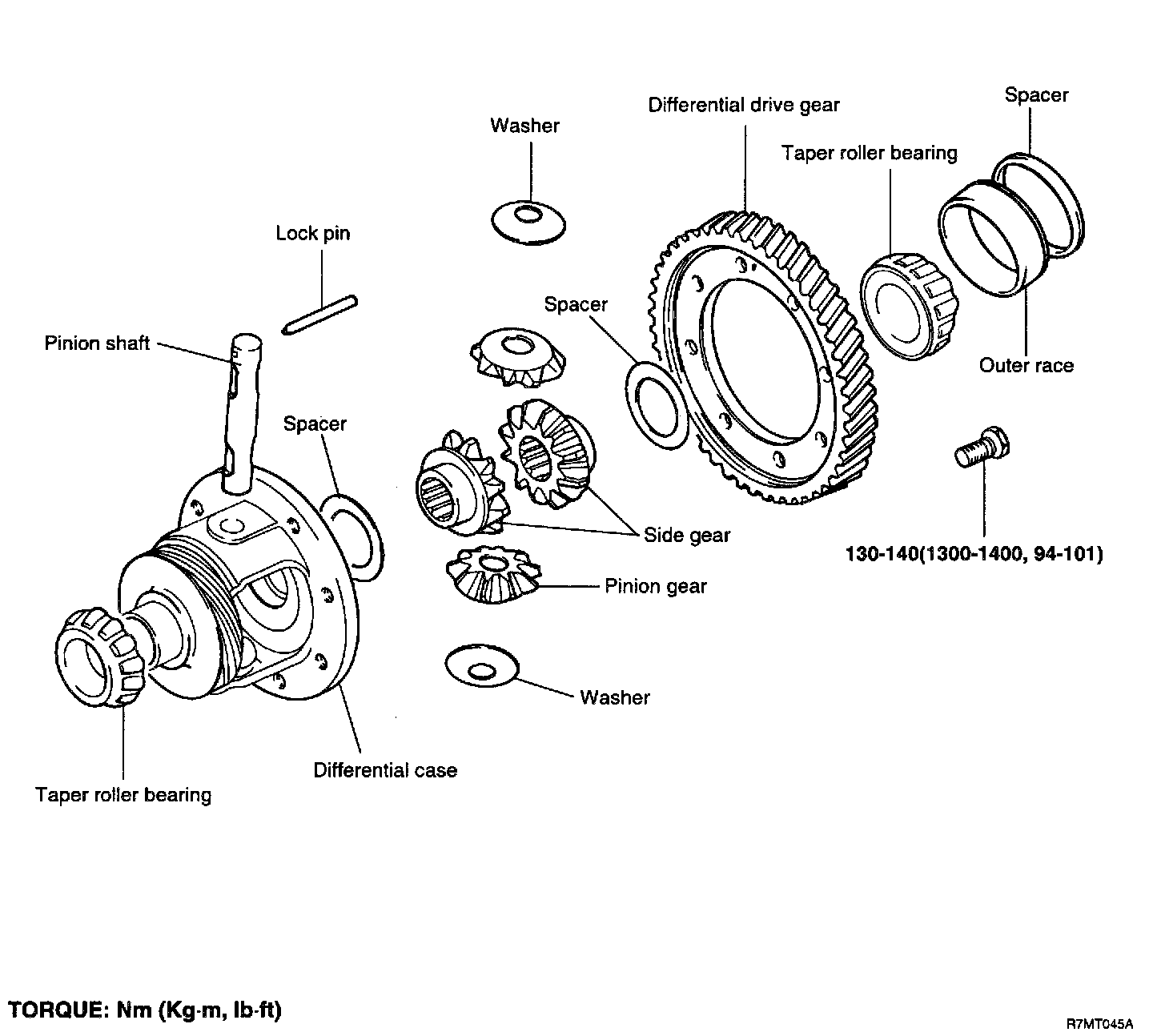

DIFFERENTIAL





SPEEDOMETER DRIVEN GEAR ASSEMBLY
