Home >> Hyundai >> 2000 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> E

E

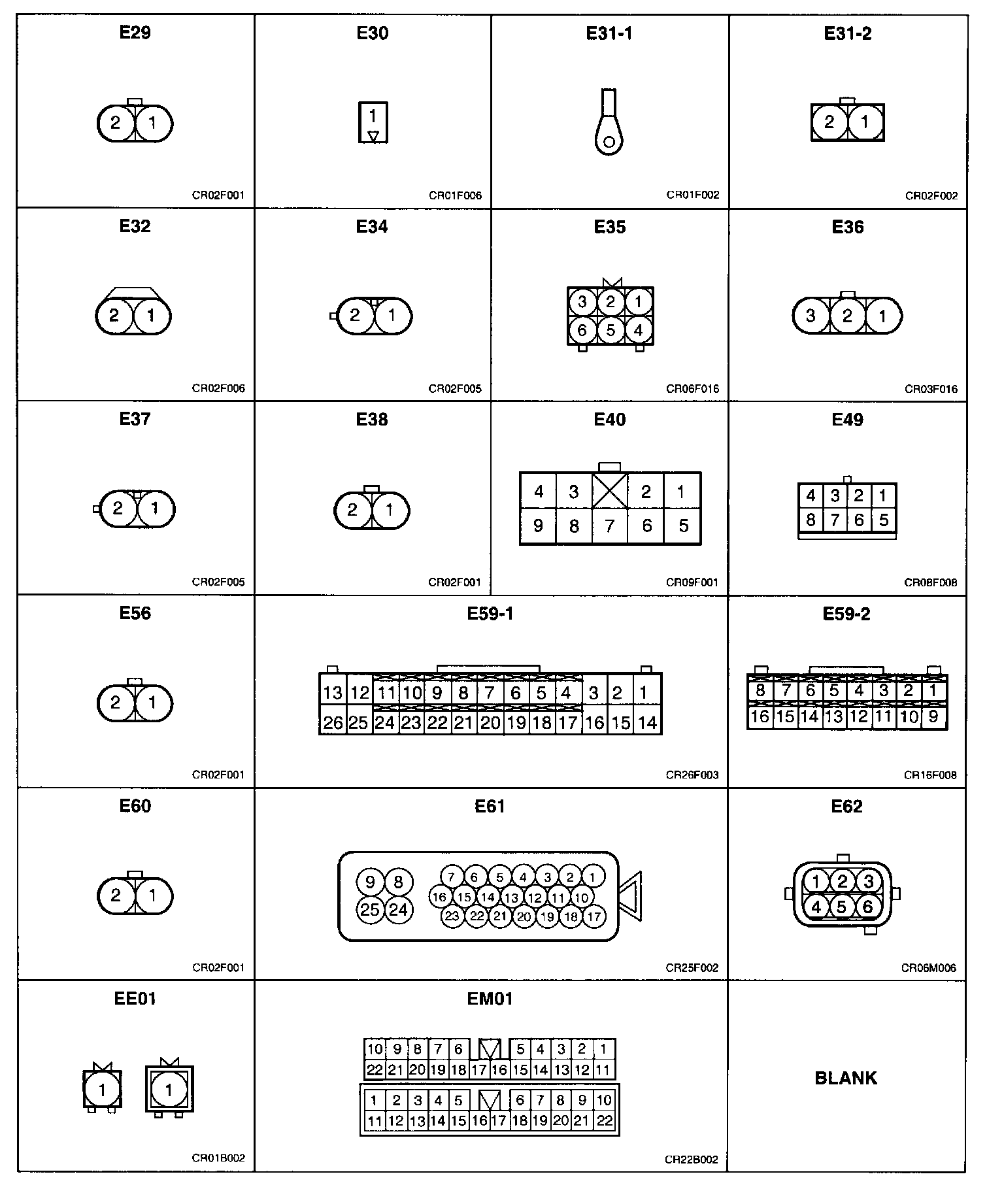

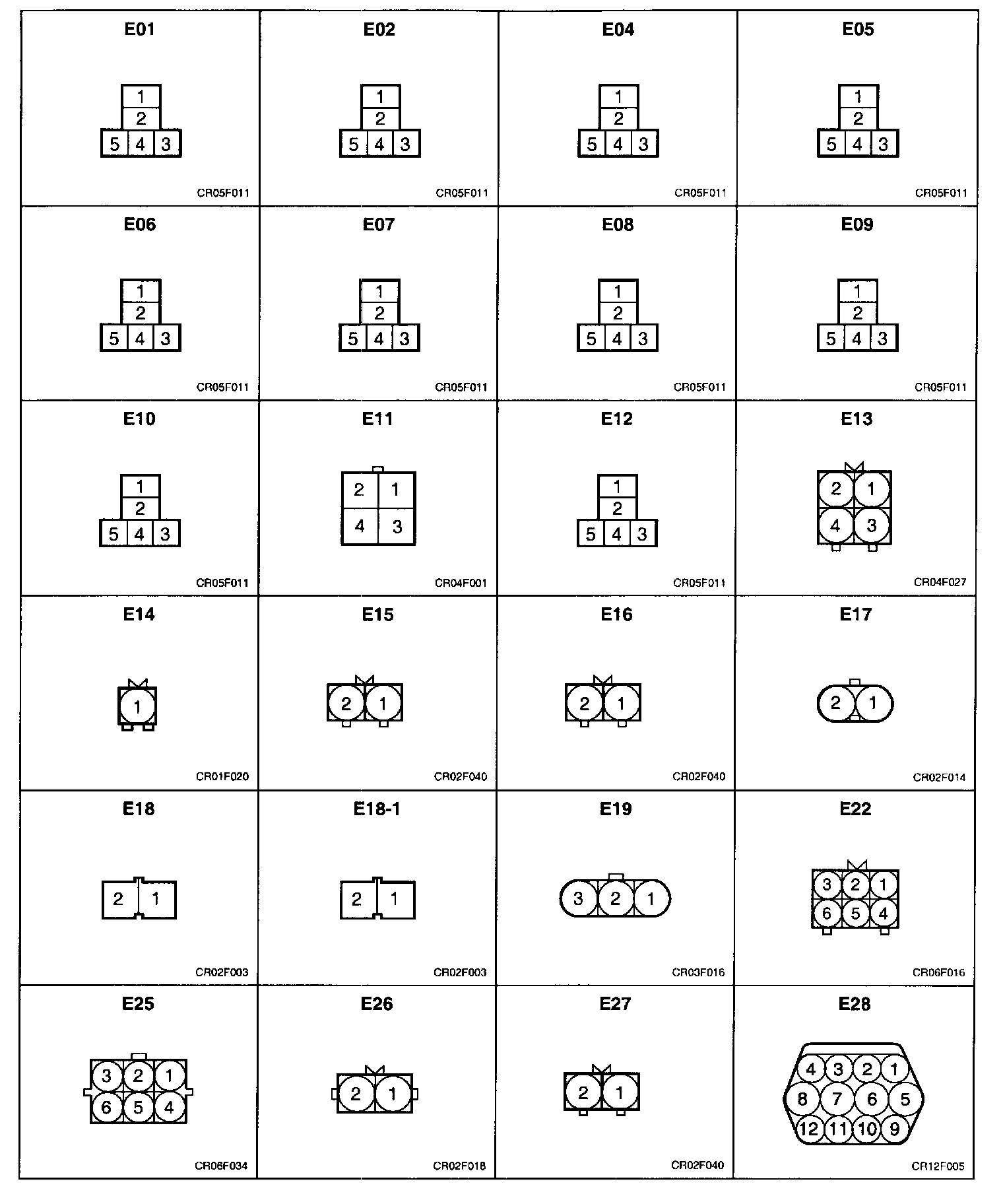

Engine Harness Connectors - Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:
