Home >> Hyundai >> 2000 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C

C

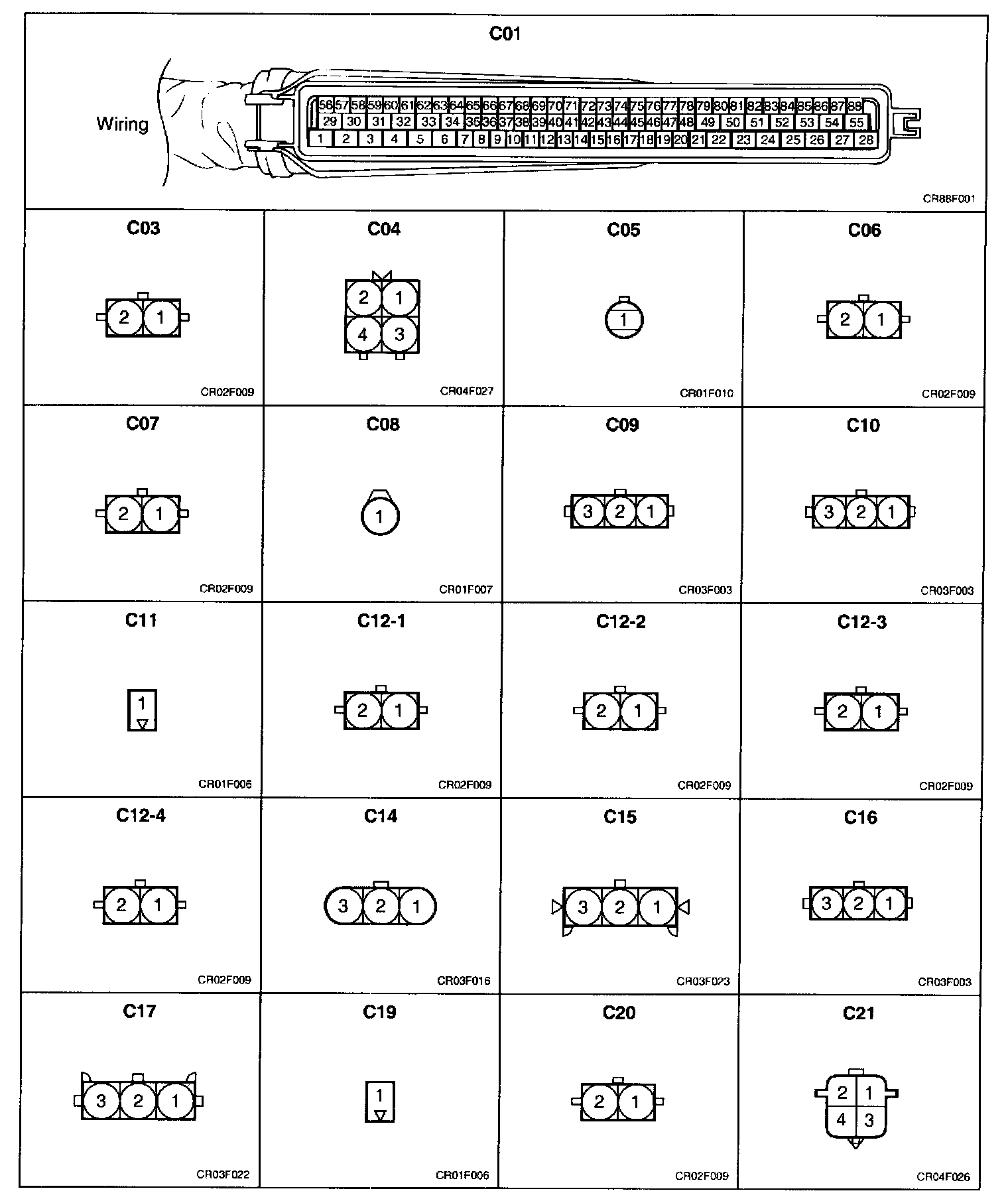

Control Harness Connectors - Part 1 Of 2:

Part 2 Of 2:
