Home >> Hyundai >> 2000 >> Sonata L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Locations

Compressor HVAC: Locations

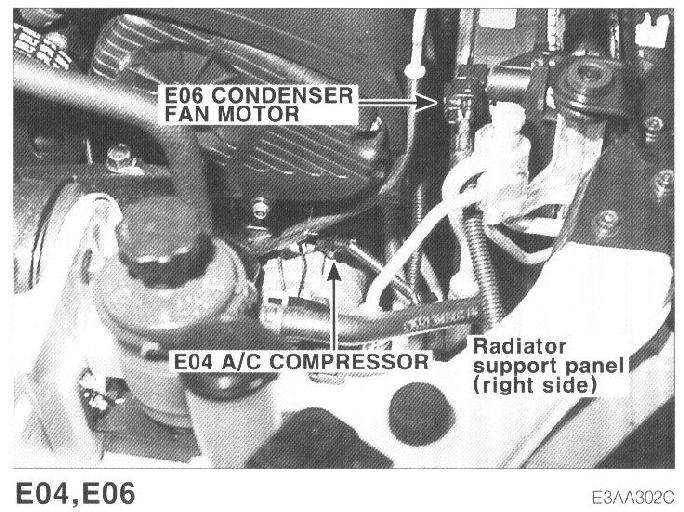

E04 A/C Compressor, E06 Condenser Fan Motor:

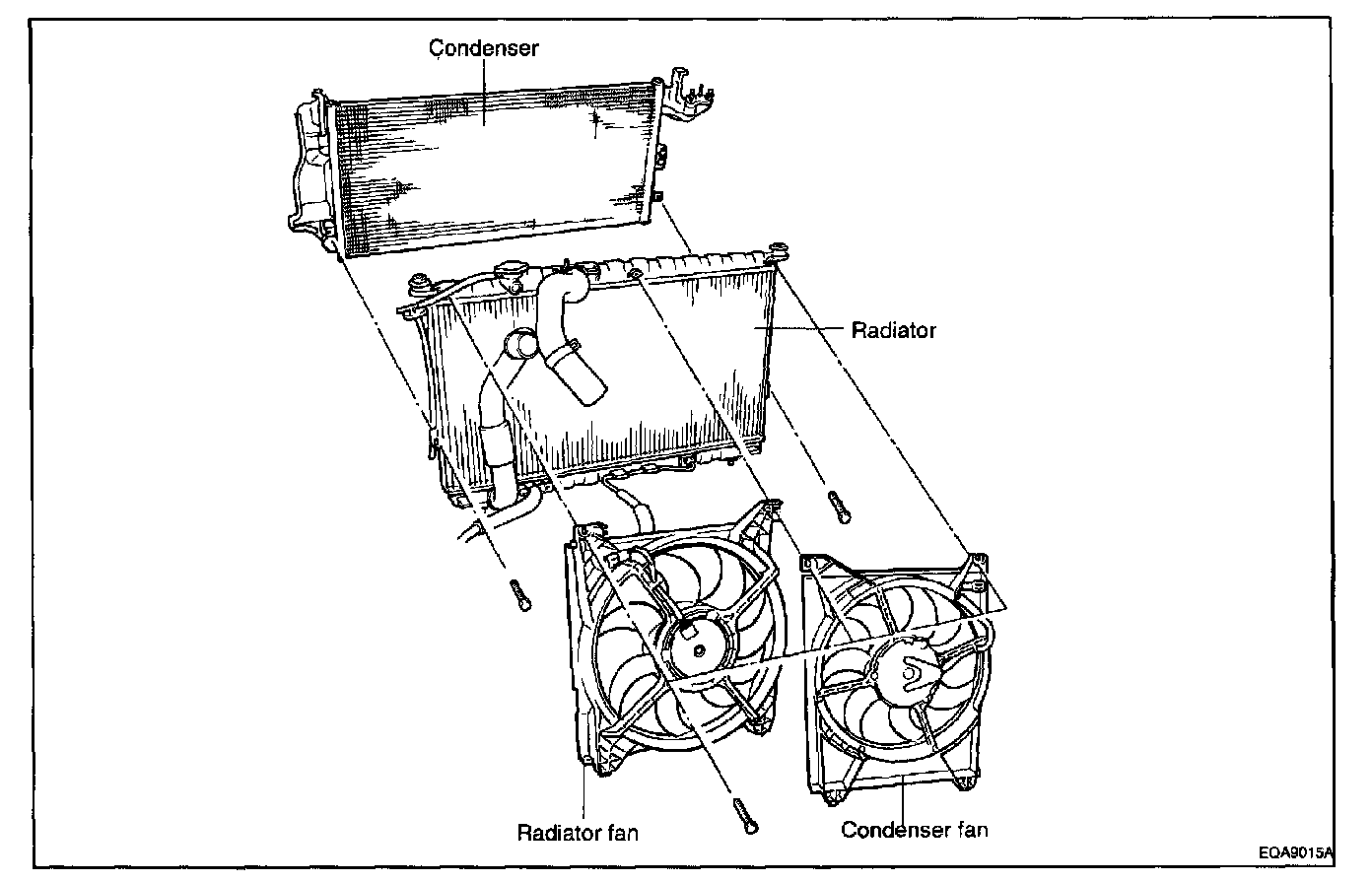

Condenser And Condenser Fan:
