Cruise Control
>>
Testing and Inspection
>>
Flow of Diagnosis
Flow of Diagnosis
System Block Diagram:

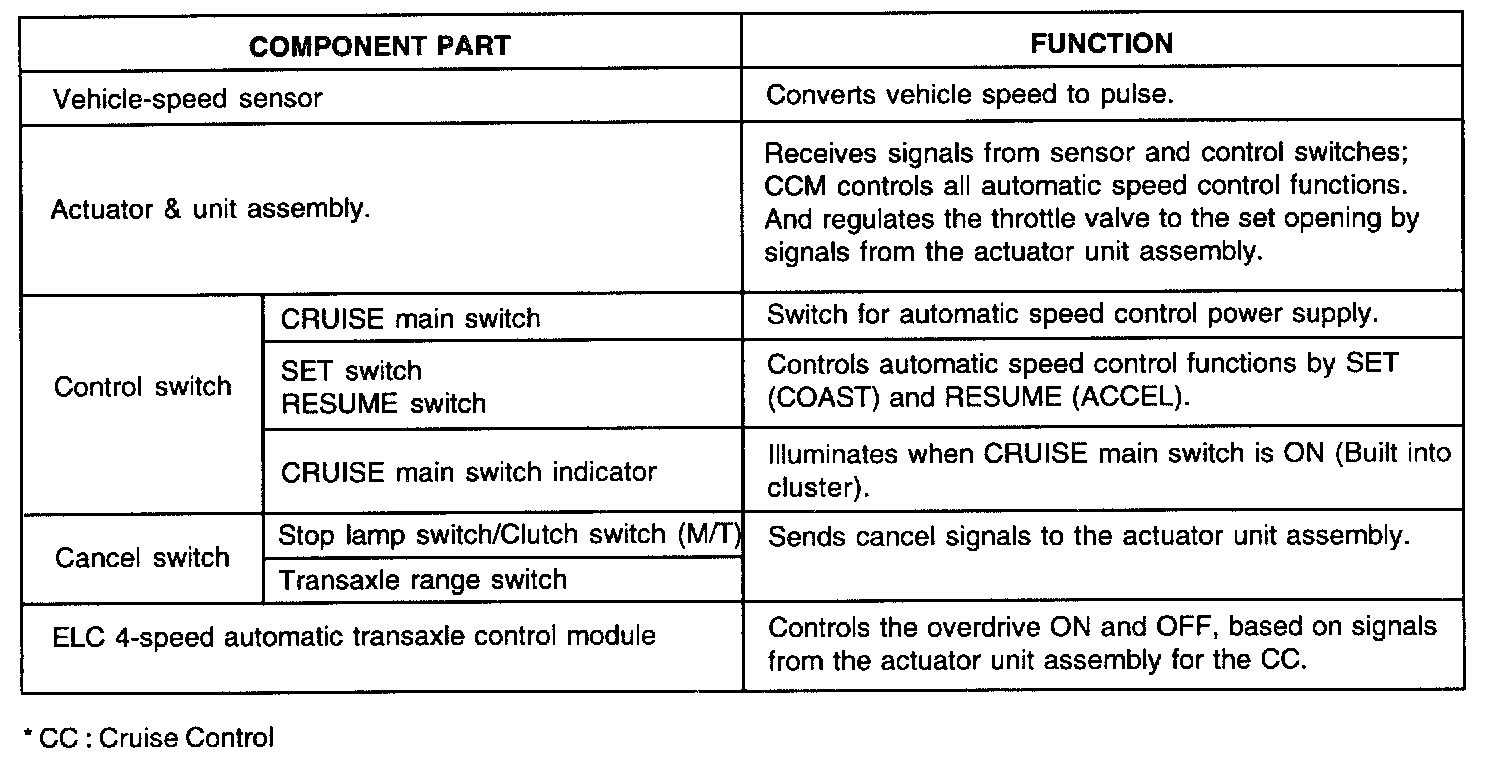

Component Parts And Function Outline:
