Mirrors: Service and Repair

OUTSIDE REARVIEW MIRROR

Outside Rearview Mirror:

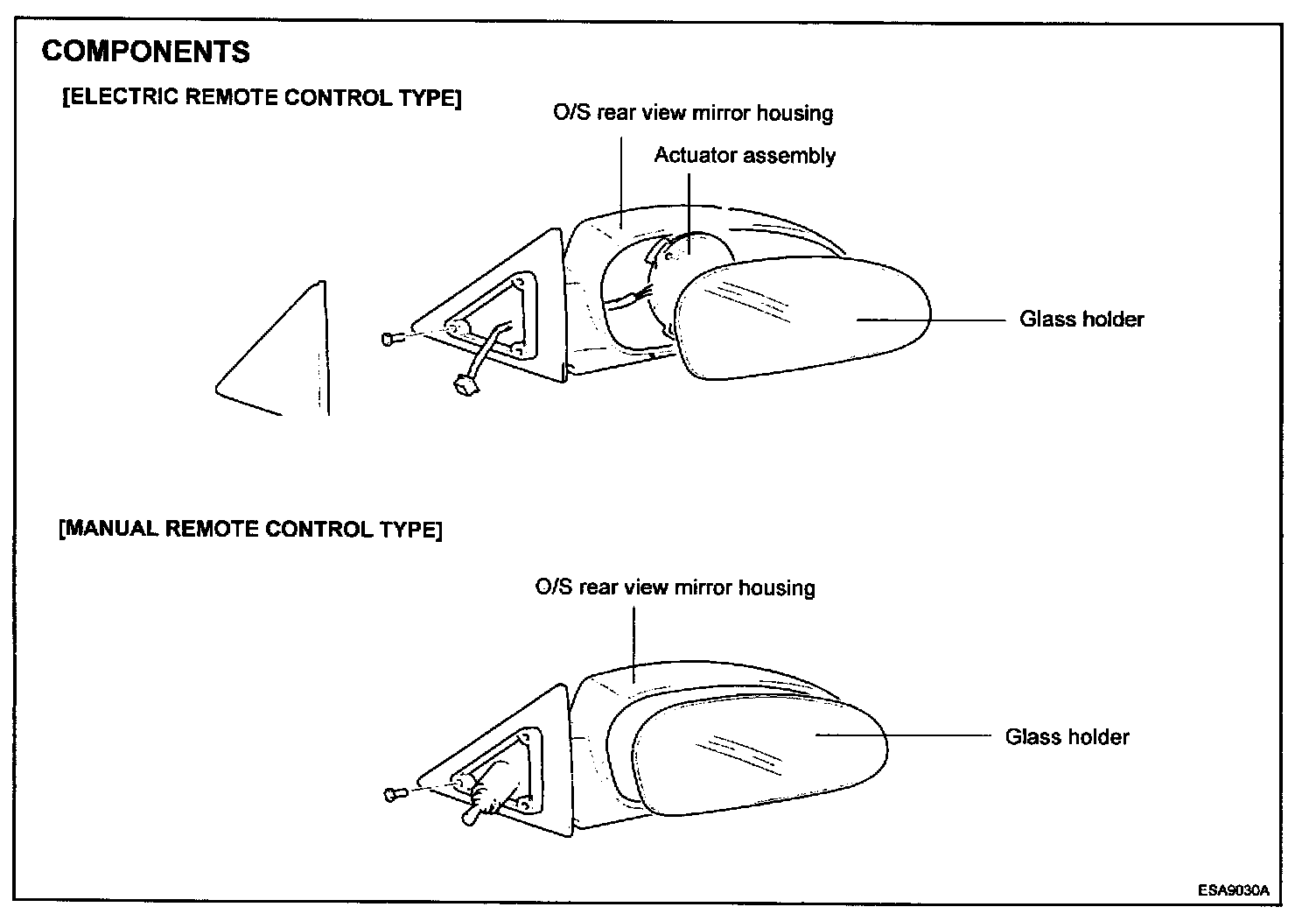

COMPONENTS

CAUTION: Wear gloves to remove and install the mirror holder.




1. Insert a flat tip screwdriver between the outside rearview mirror holder and mirror assembly.

CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.




2. Remove the outside rearview mirror actuator from outside rearview mirror housing.

3. Installation is the reverse of removal.
