Trouble Code Charts

DTC P0130, P0131, P0132, P0137, P0138 - Heated Oxygen Sensor:

DTC P0135, P0141 - Heated Oxygen Sensor:

DTC P0133 - Heated Oxygen Sensor:

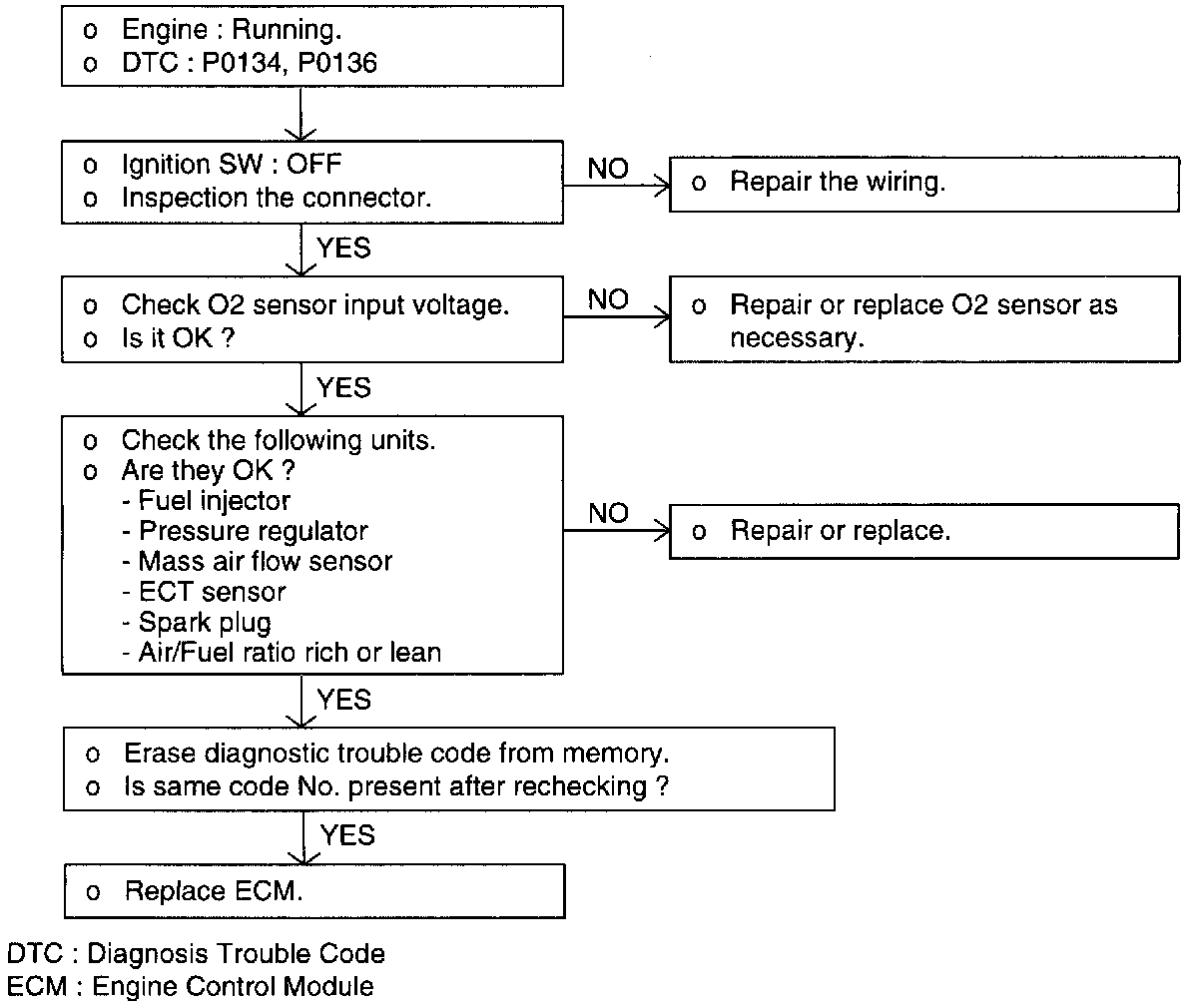

DTC P0134, P0136 - Heated Oxygen Sensor:
