Home >> Hyundai >> 1997 >> Tiburon L4-1.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations



Located in the Engine Compartment Fuse/Relay Box

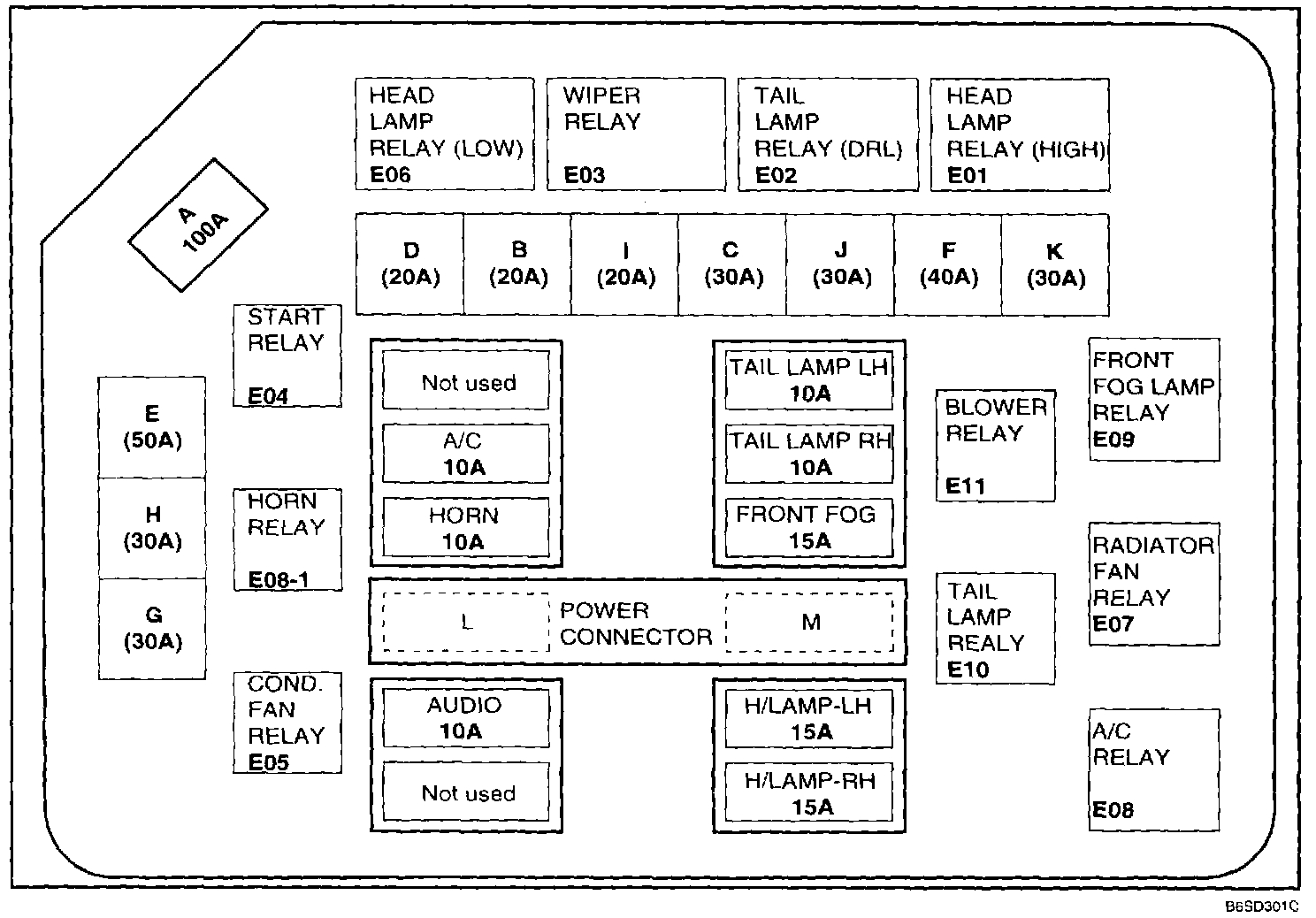

Engine Compartment Relay And Fuse Box Layout:
