Manifold Pressure/Vacuum Sensor: Testing and Inspection

1. At idle, check the voltage using voltmeter.
2. It is important to make sure you are checking the correct pins.
3. Check to make sure the value is within specifications.

Standard value
at idle : 2.0 ± 0.3 V

CAUTION: Do not drop the MDP sensor. If it is dropped, don't reuse it.

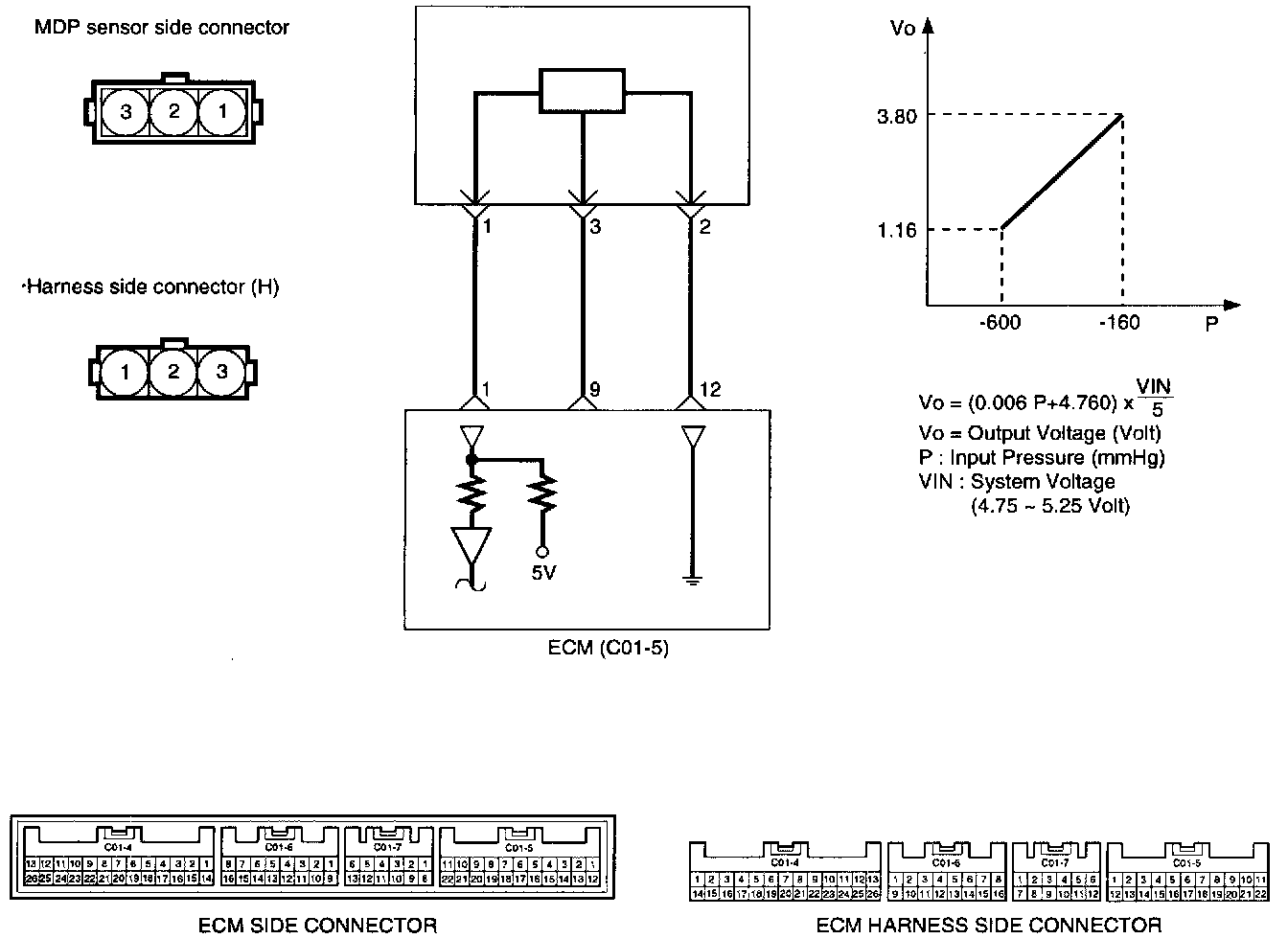

CIRCUIT DIAGRAM











HARNESS INSPECTION
