Camshaft Position Sensor: Testing and Inspection

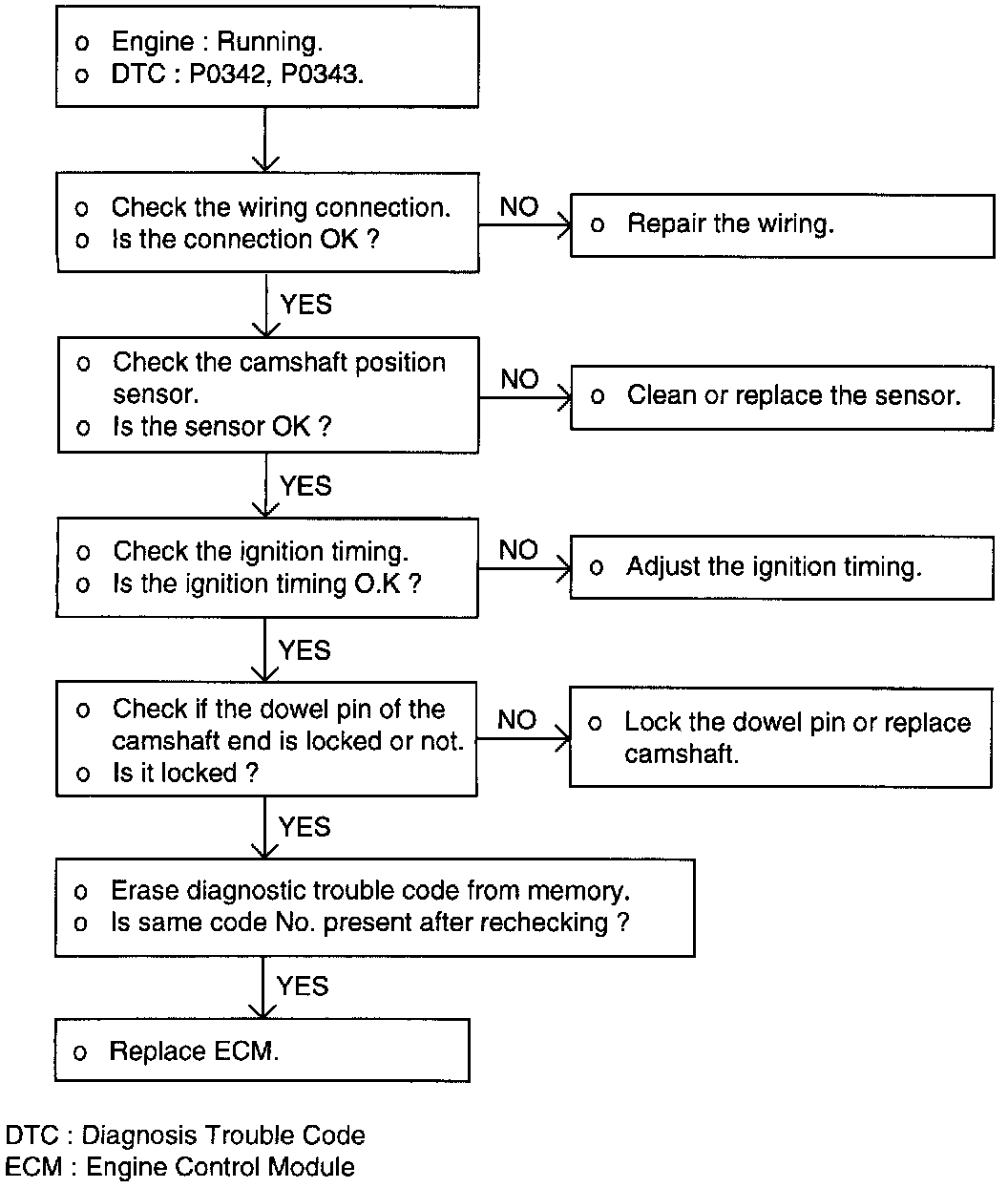

TROUBLESHOOTING PROCEDURES

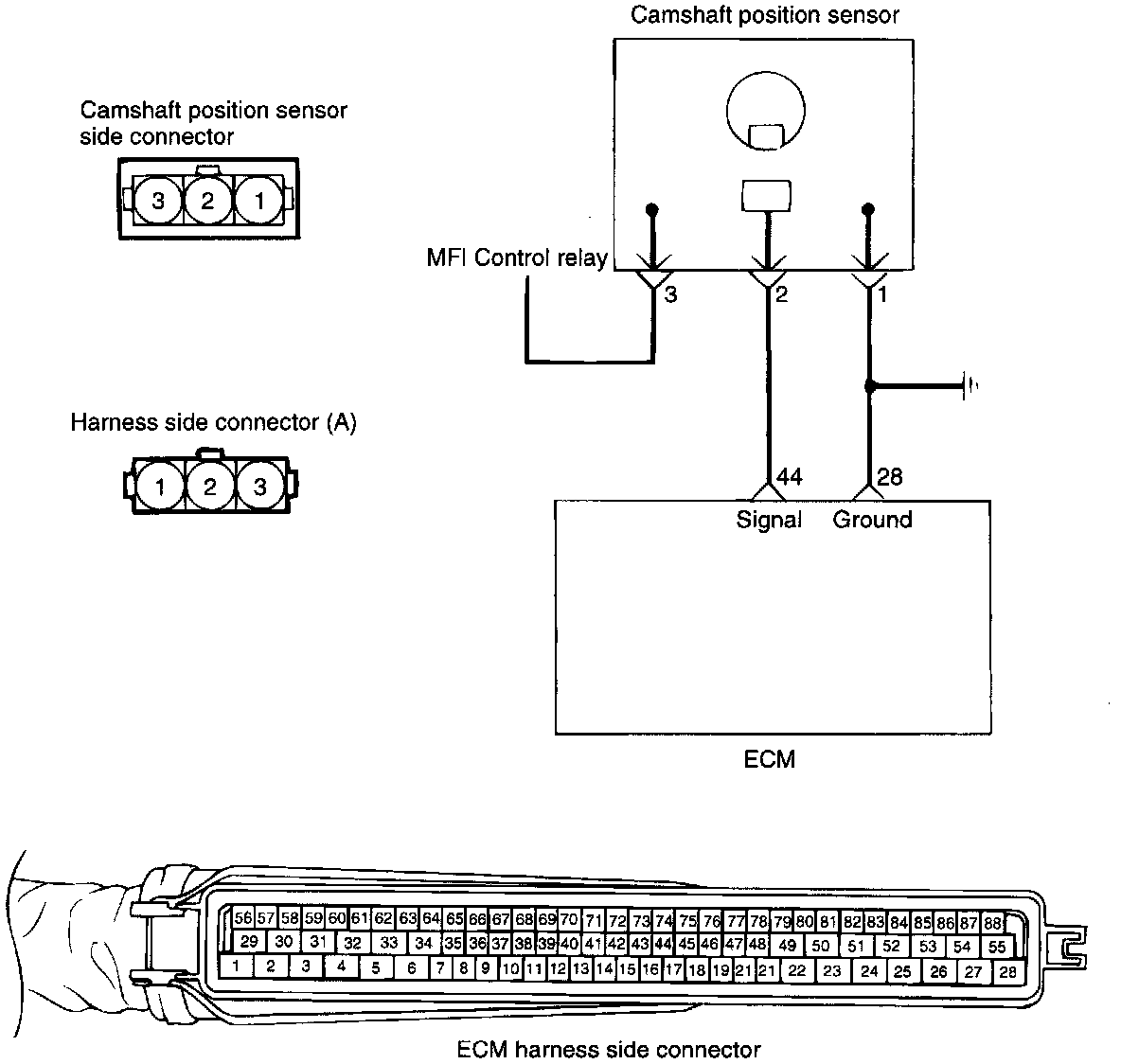

CIRCUIT DIAGRAM










HARNESS INSPECTION PROCEDURES


SENSOR INSPECTION




Using Voltmeter

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct sequential injection does not occur so the engine may stall or run irregularly at idle or fail to accelerate normally.
