Home >> Hyundai >> 1996 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor HVAC

Compressor HVAC

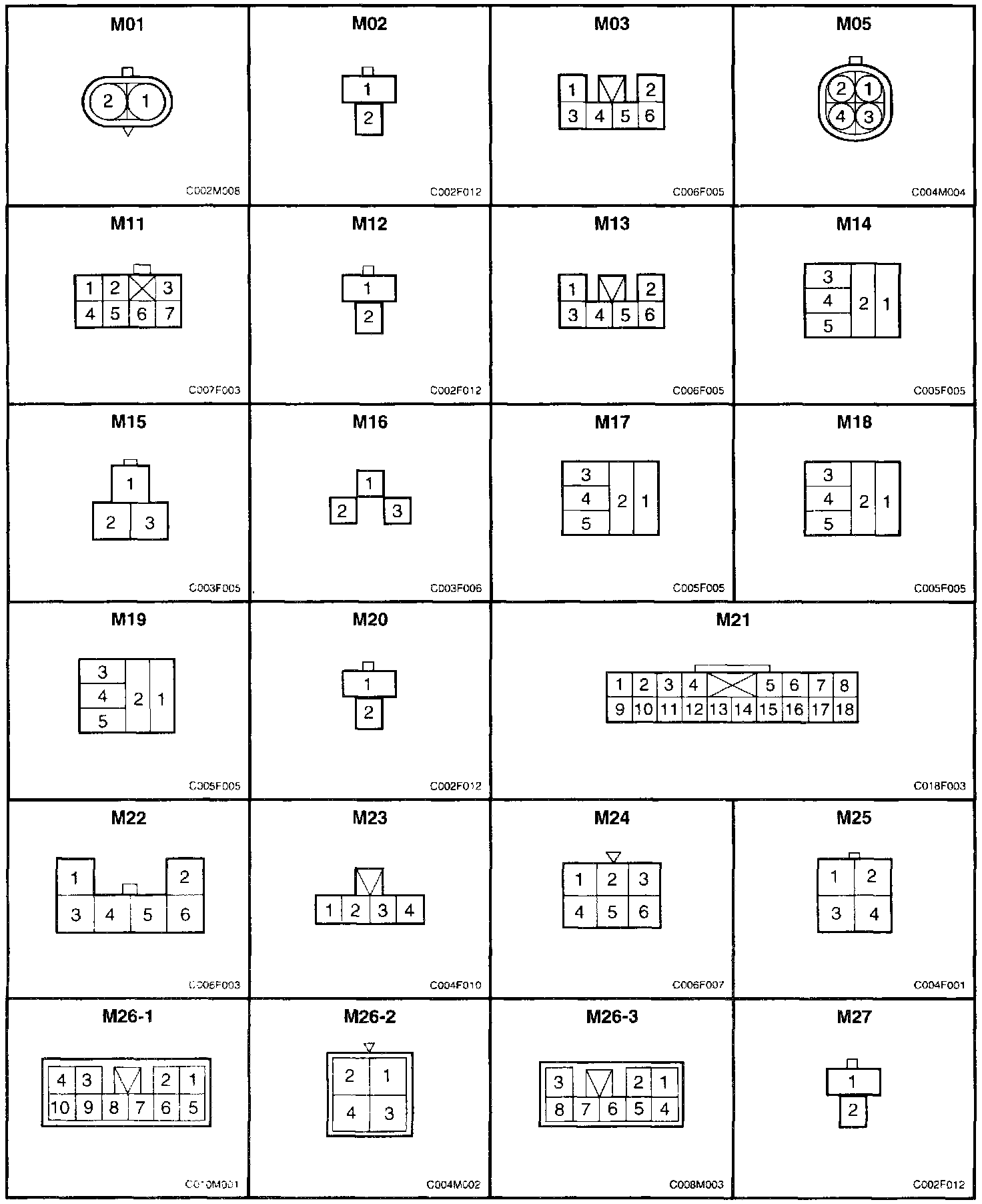

M01 - M27:
