Fuse Block: Locations

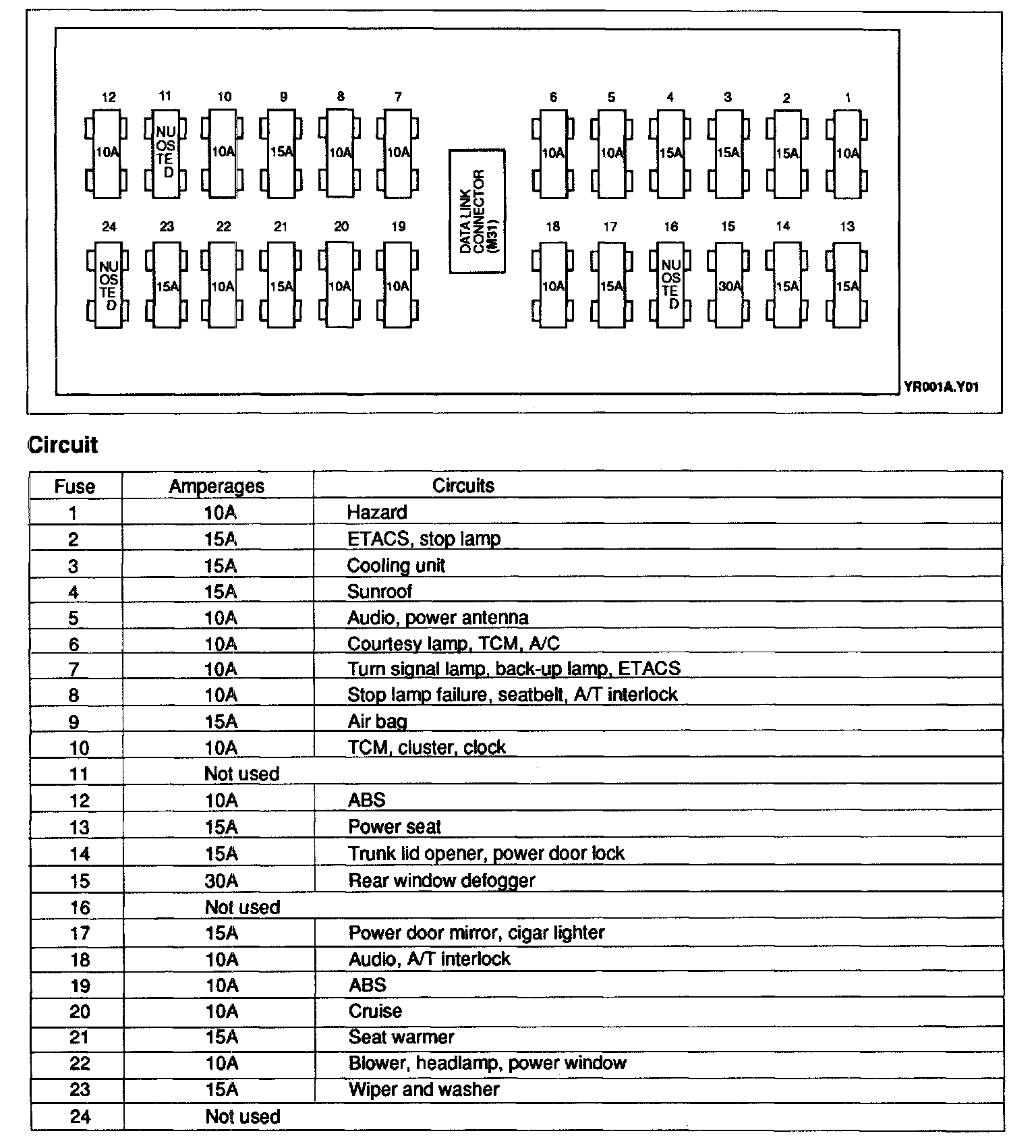

DASH FUSE BOX:



ENGINE COMPARTMENT RELAY AND FUSE BOX:

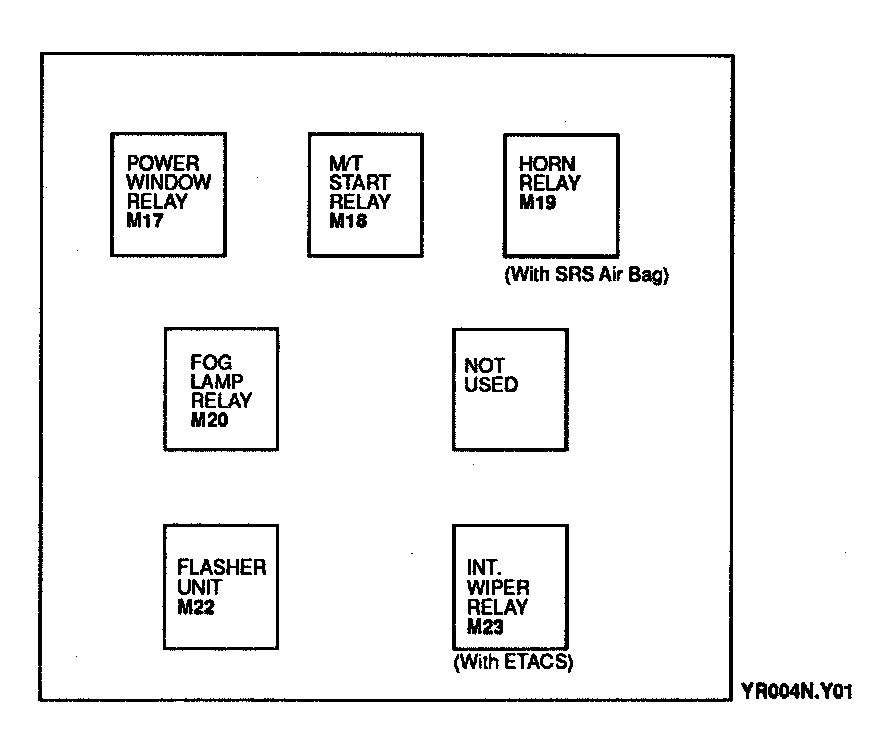

PASSENGER COMPARTMENT RELAY BOX:



Engine Compartment Fuse/Relay Box:
