Engine Compartment Fuse/Relay Box

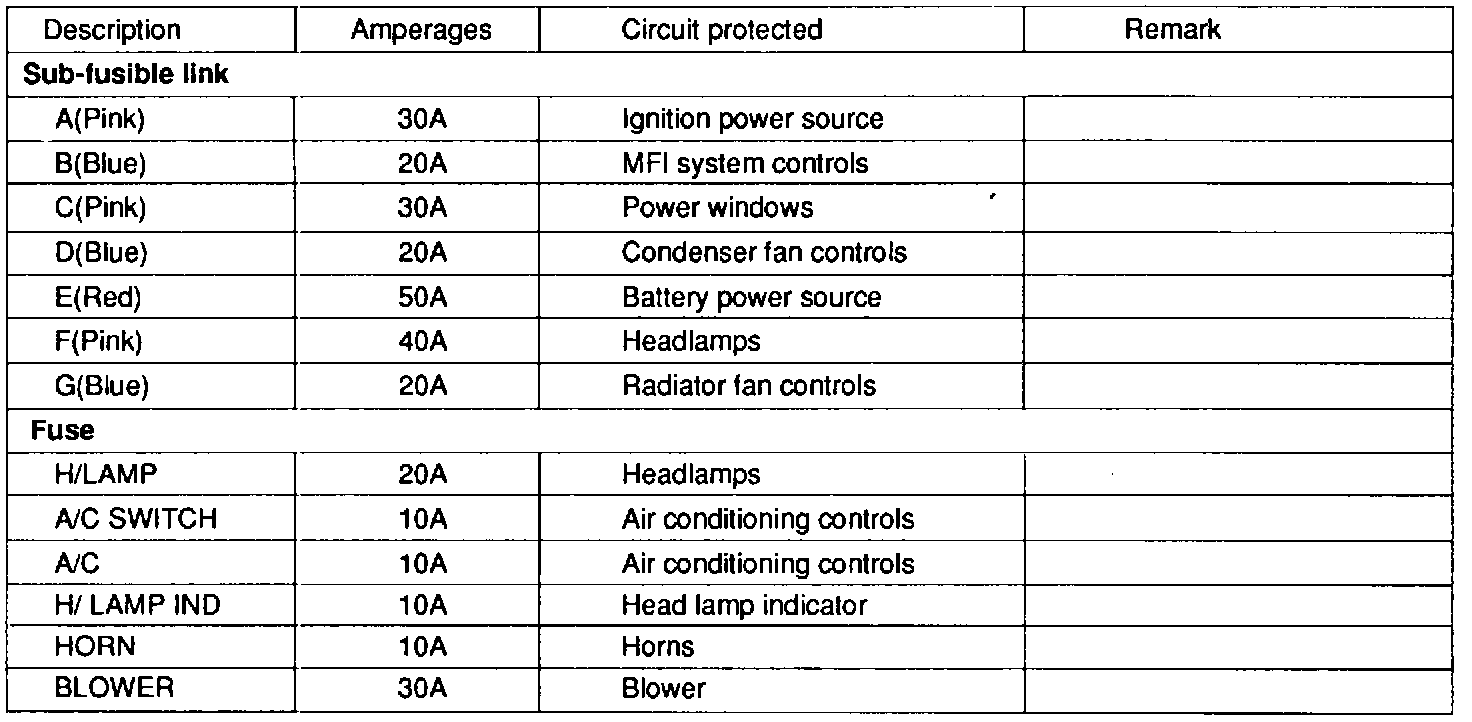

Engine Compartment Relay Box - Layout:






Engine Compartment Relay Box - Circuit:
