Hyundai
>>
1993
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Timer/Control Unit
>>
Diagrams
>>
Connector Views
Connector Views

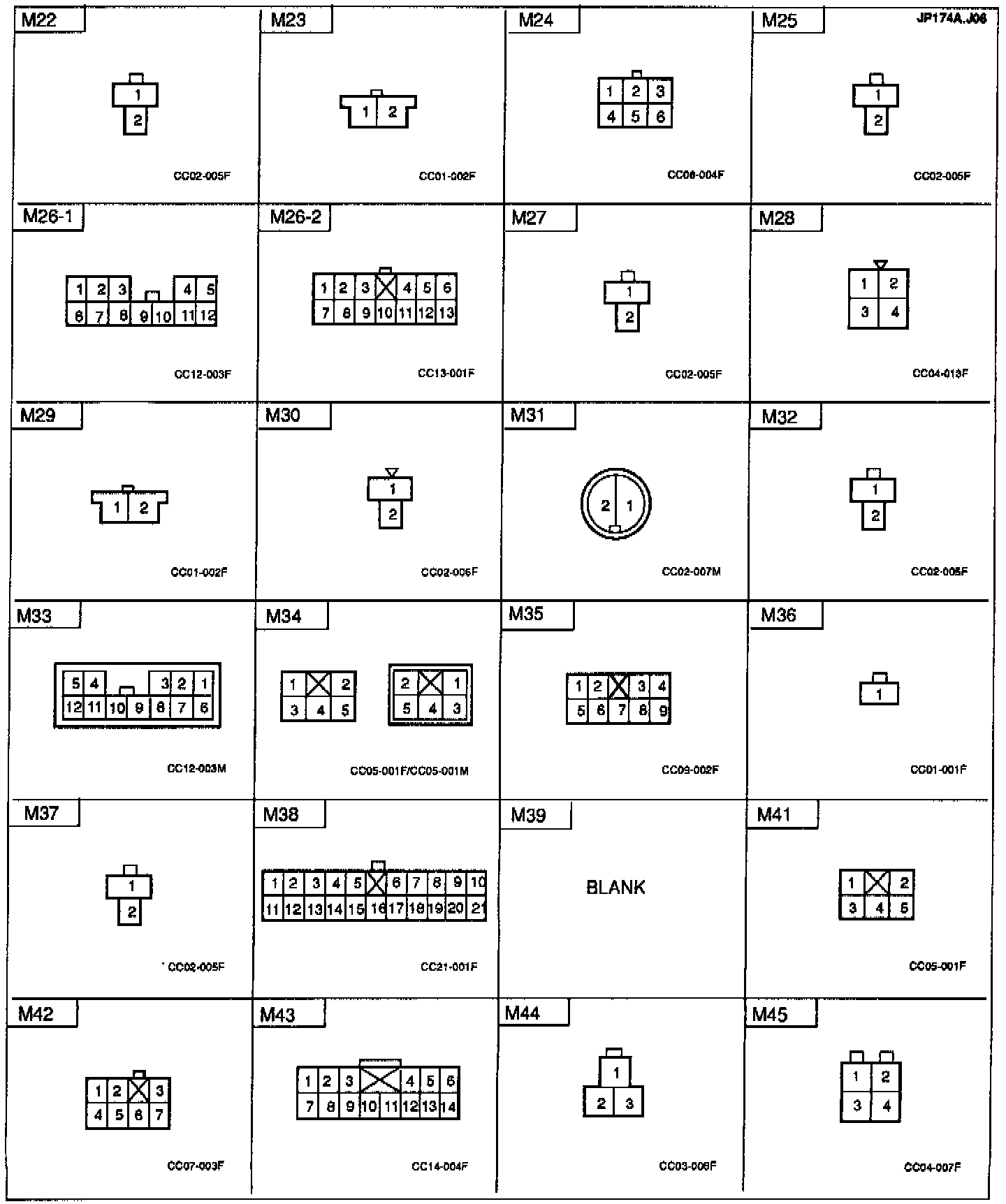

Connector Identification: M22 Thru M45:
