Hyundai
>>
1993
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>

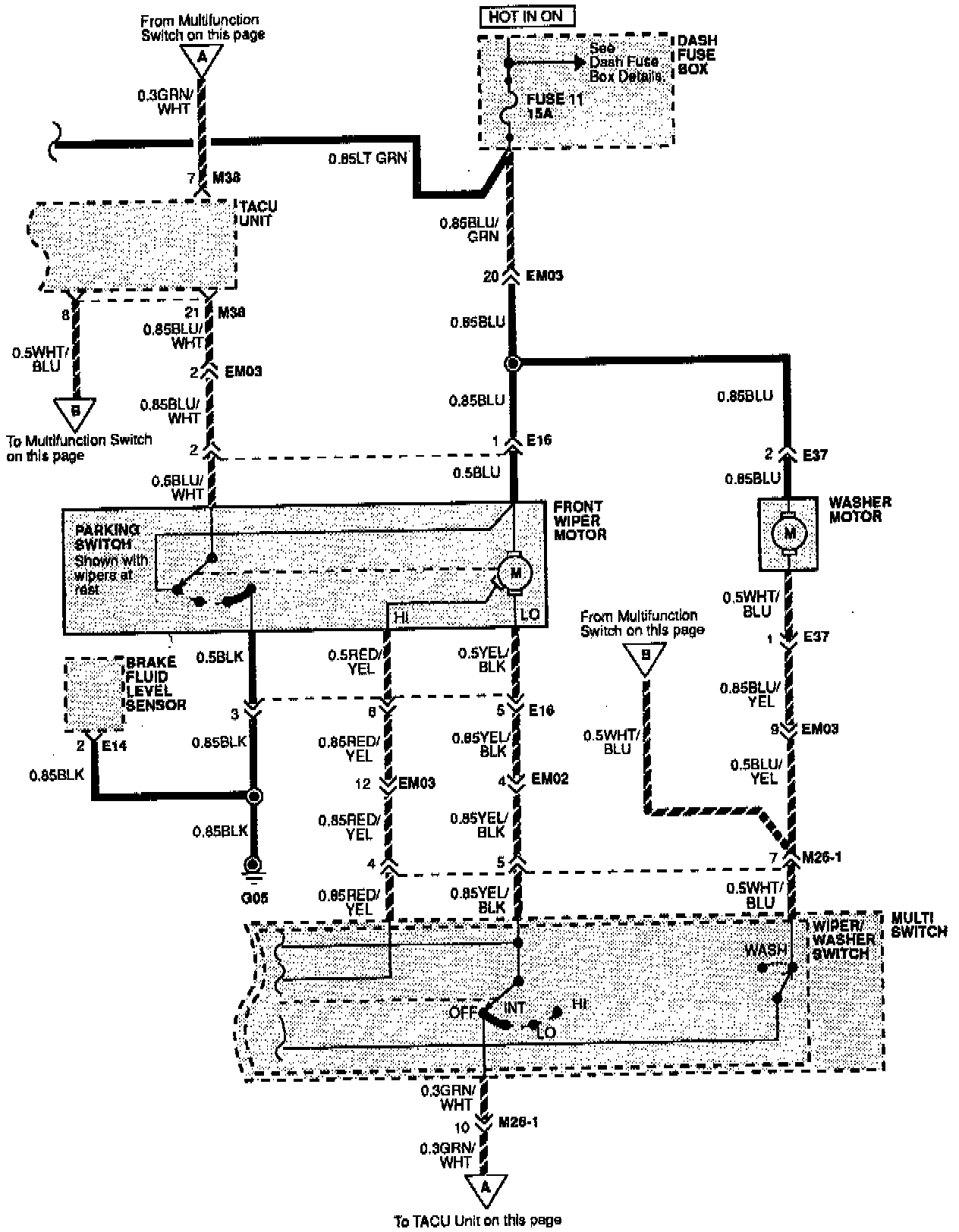

Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

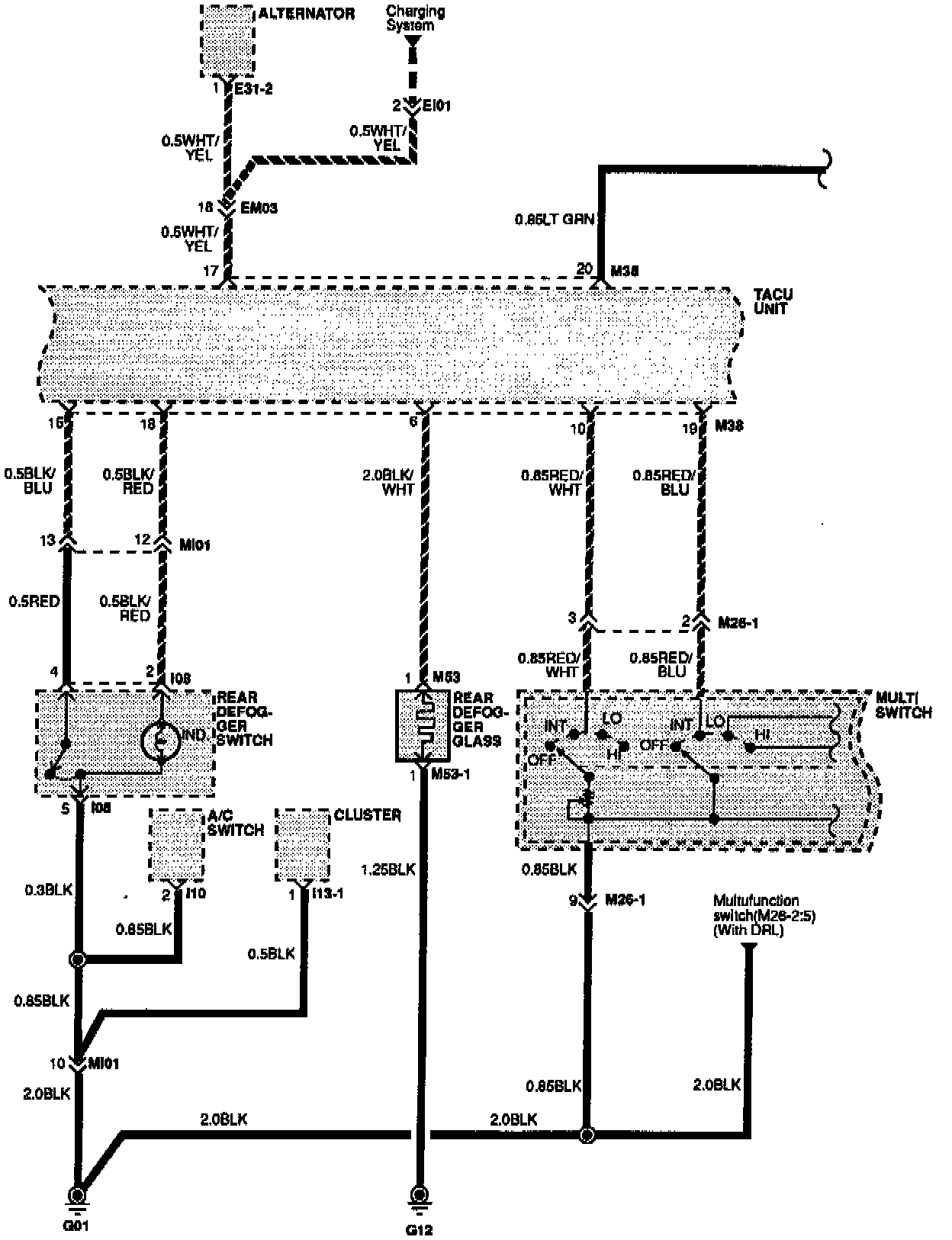

Time Alarm Control Unit (T.A.C.U.):

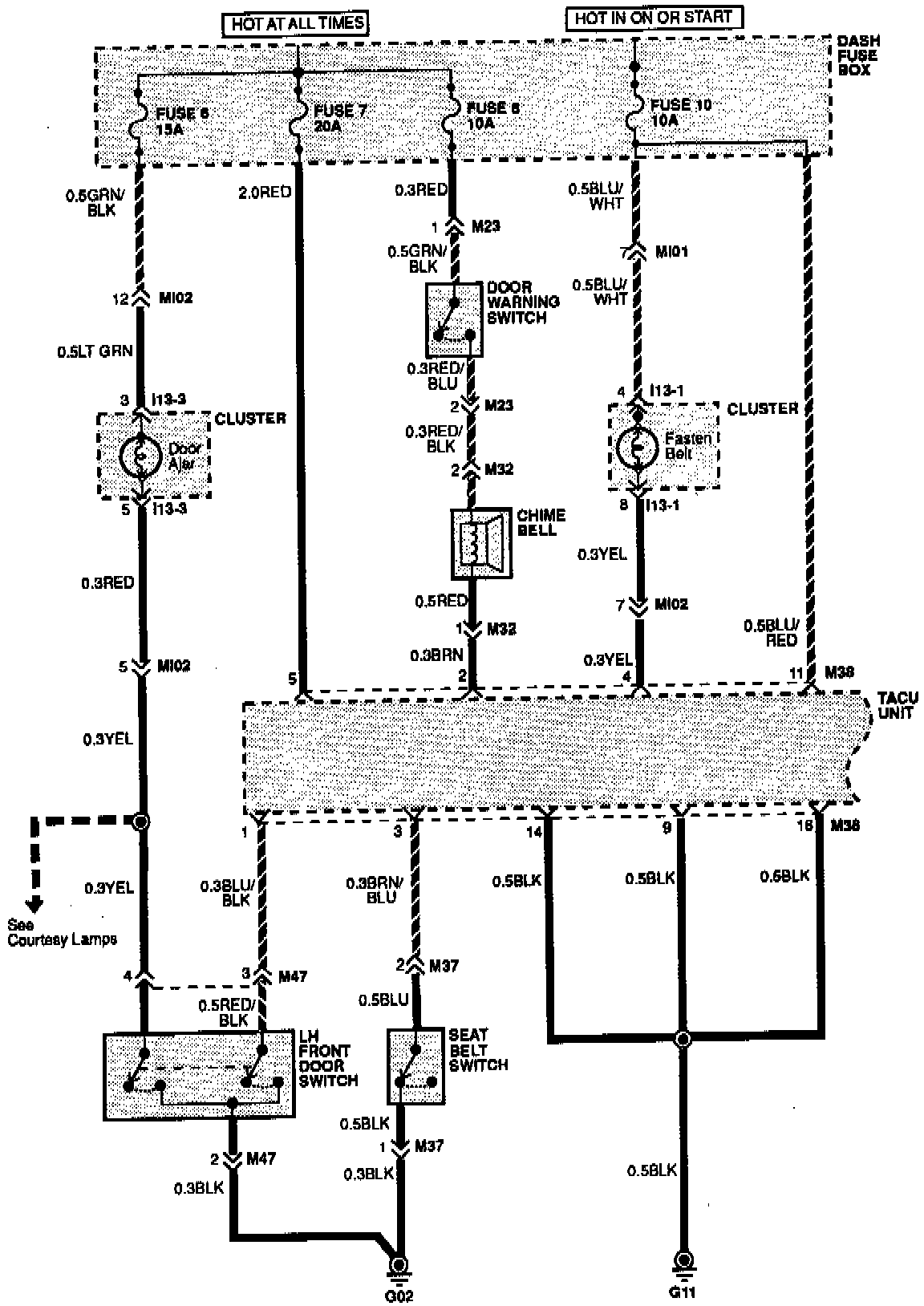

Time Alarm Control Unit (T.A.C.U.):
Time Alarm Control Unit (T.A.C.U.):
