Home >> Hyundai >> 1992 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock Control Module

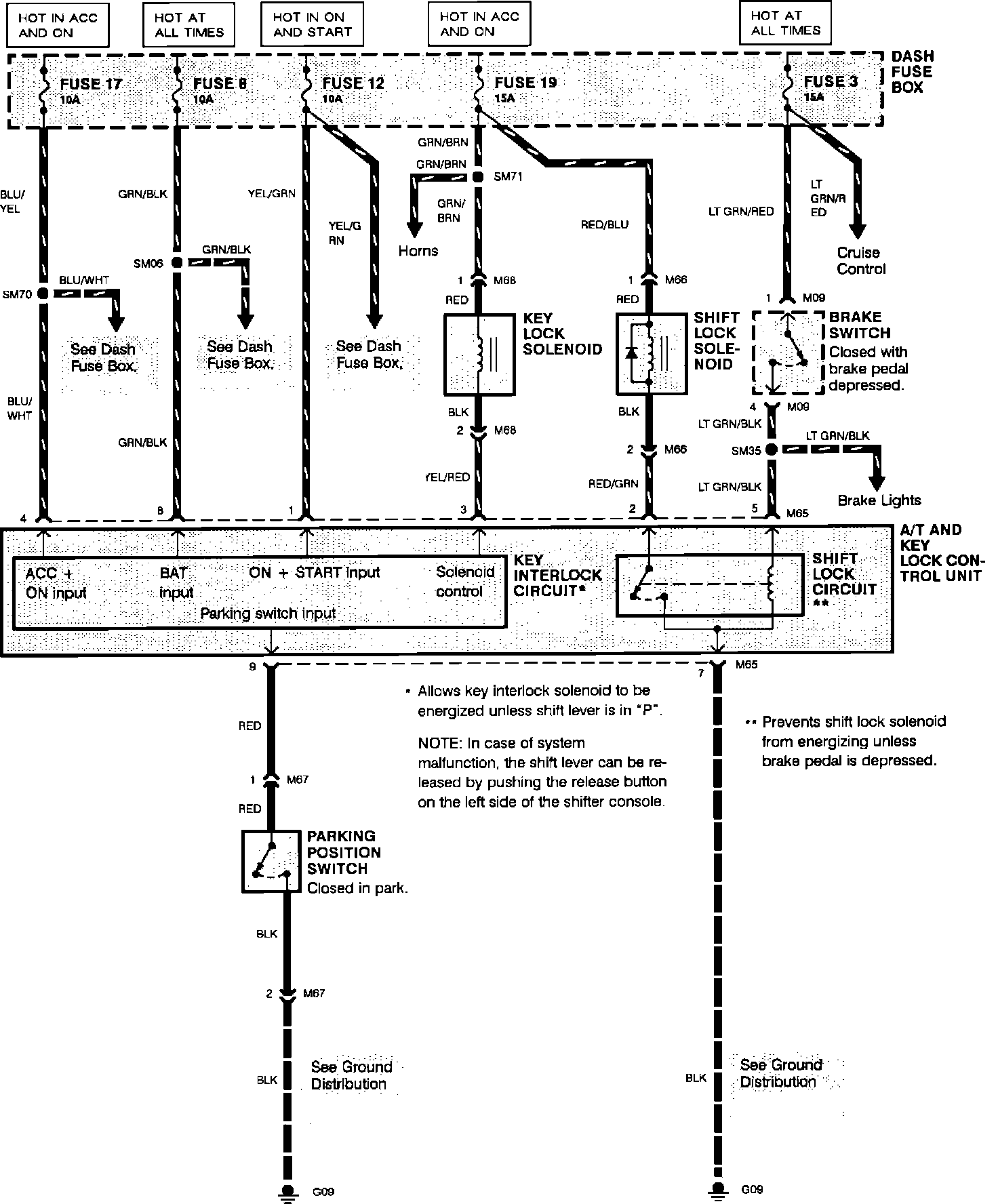

Shift Interlock Control Module

Interlock System:
