Home >> Hyundai >> 1991 >> Sonata L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Connector Views >> Connector Identification

Connector Identification

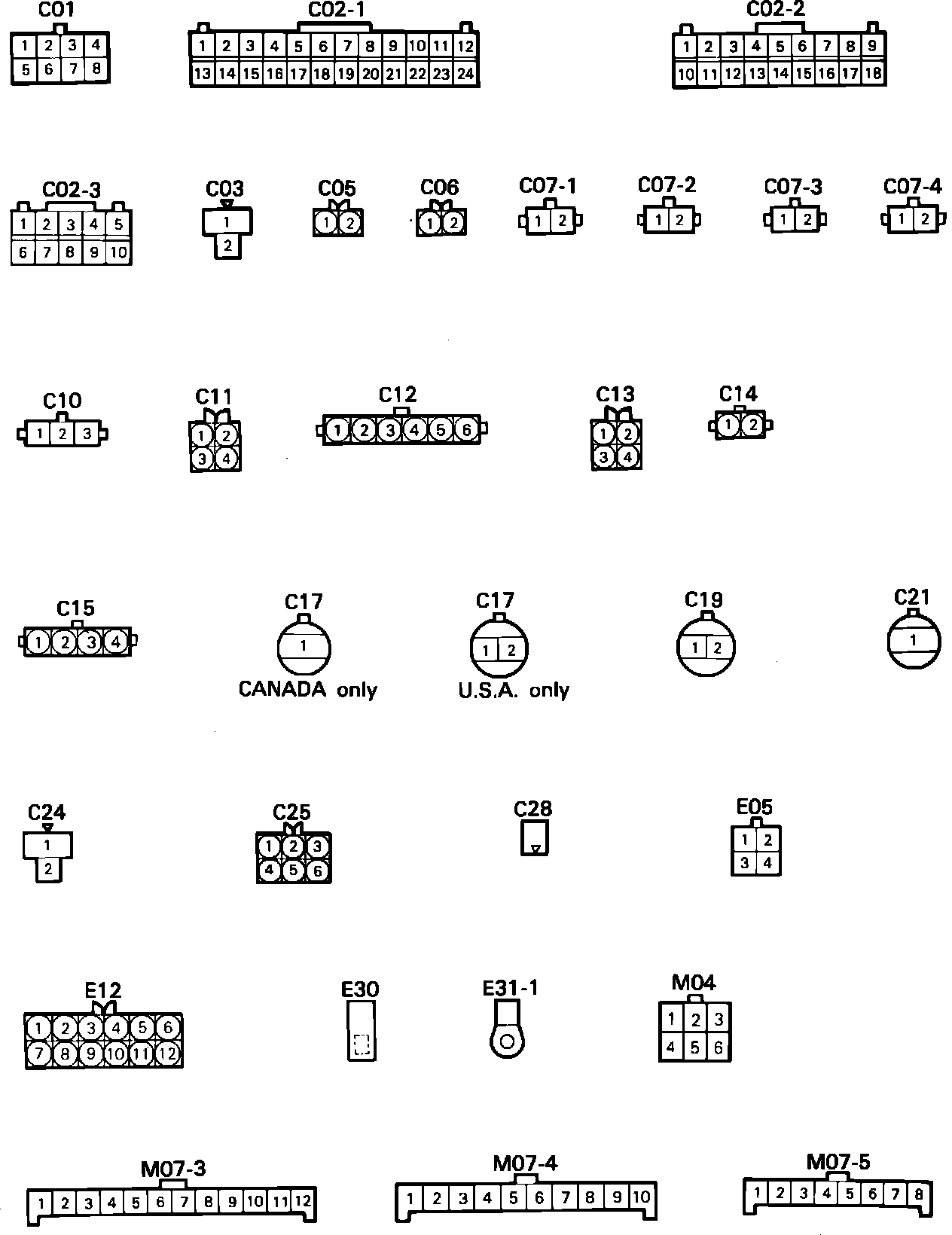

Multi-port Injections System. Connector Identification:



Multi-port Injections System. Connector Identification:
