Variable Valve Timing Solenoid: Diagrams

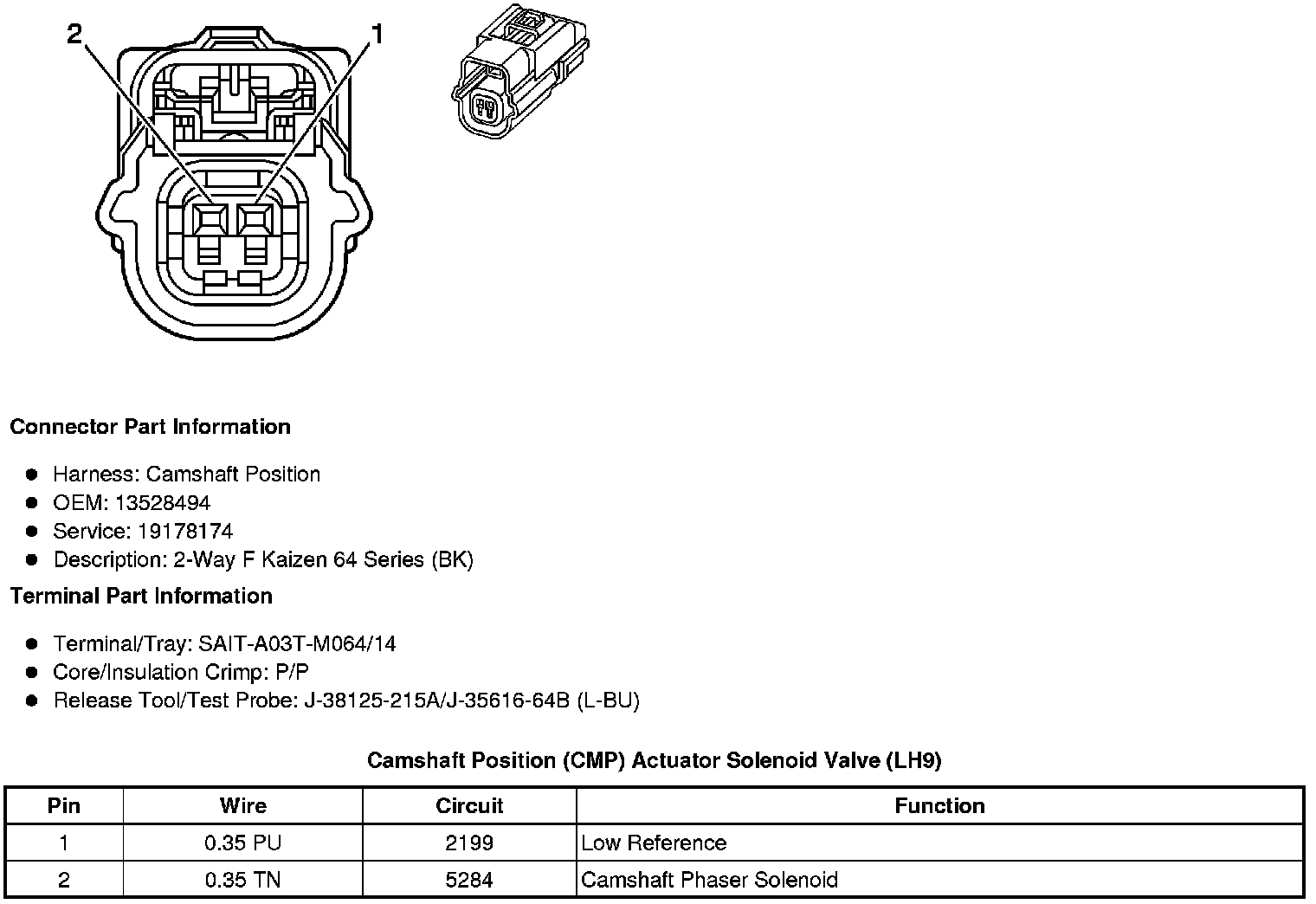

Camshaft Position (CMP) Actuator Solenoid Valve (LH9)





Camshaft Position (CMP) Actuator Solenoid Valve (LLR)
