LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hummer
>>
2010
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
License Plate Lamp
Component Connector End Views
License Lamp (without T89)

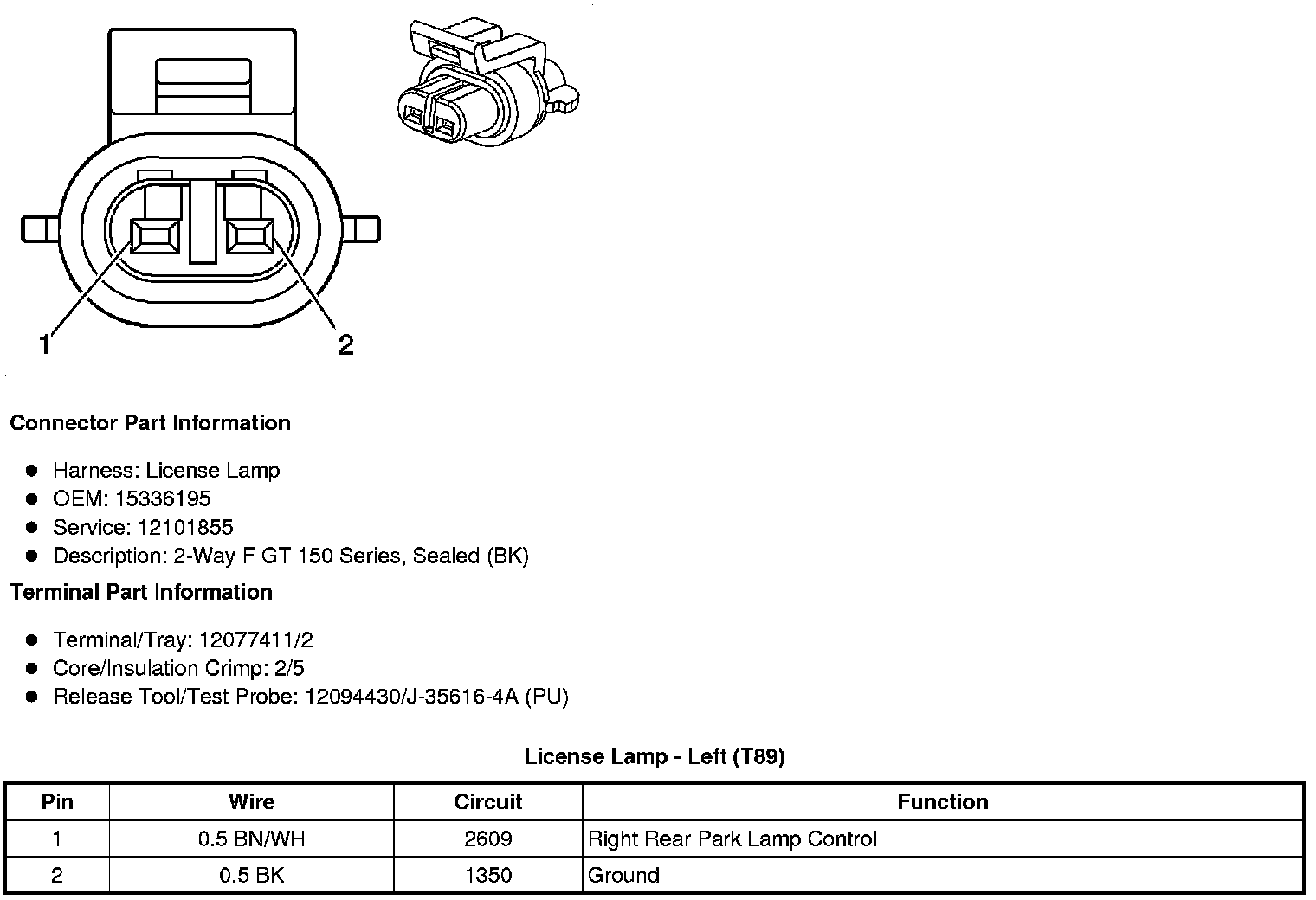

License Lamp - Left (T89)

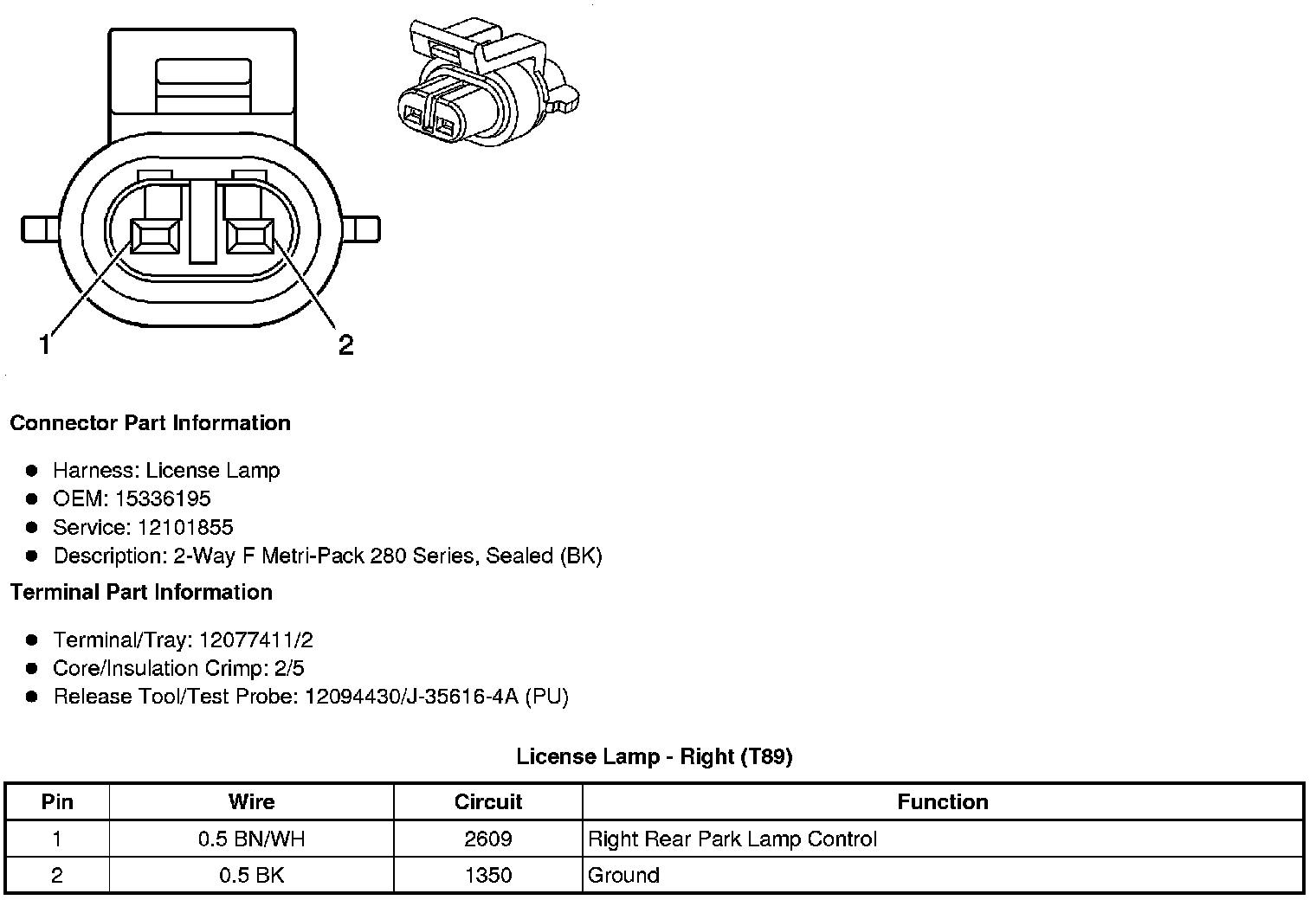

License Lamp - Right (T89)
