Air Injection Pump
Air Injection Pump

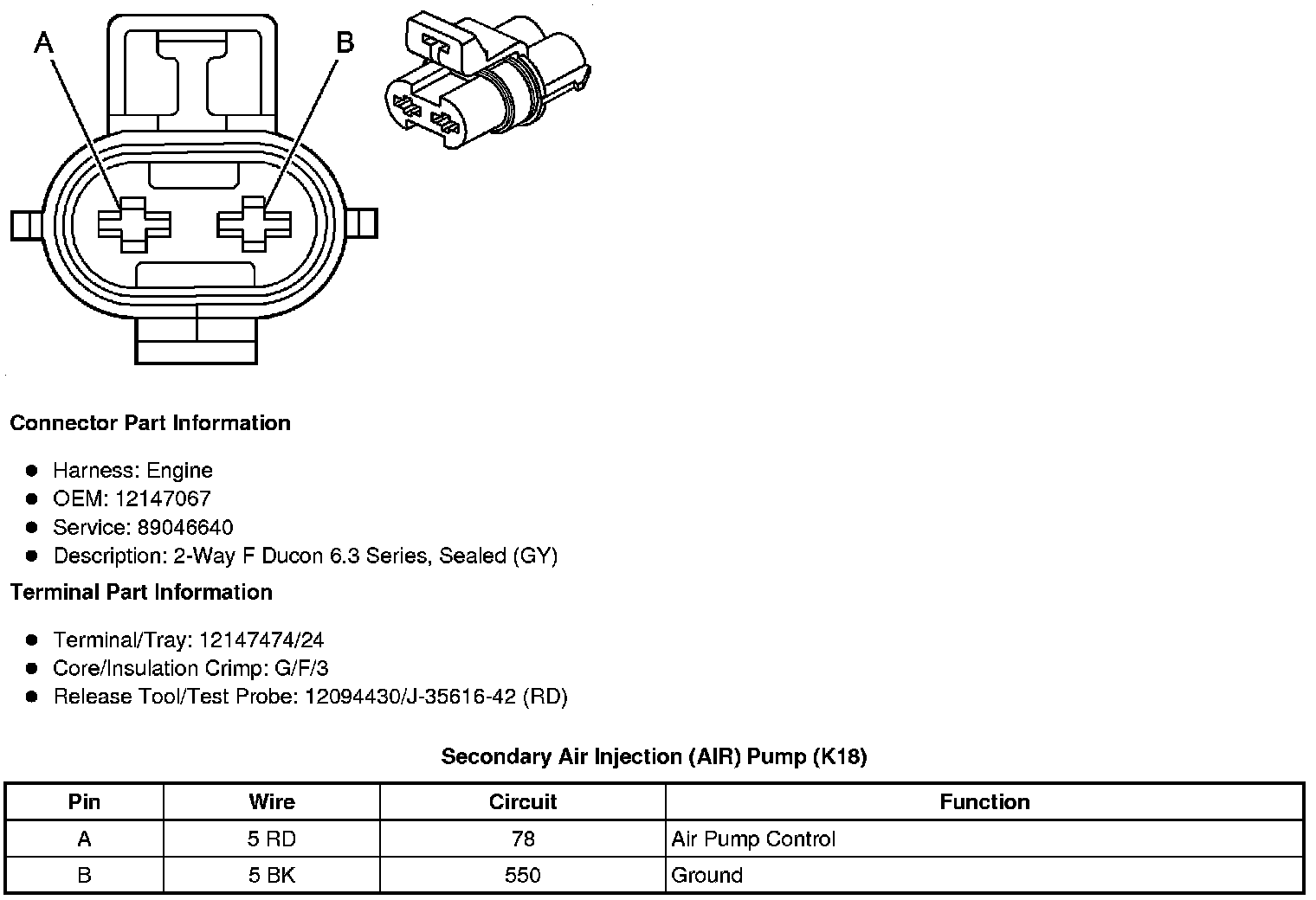

Component Connector End Views
Secondary Air Injection (AIR) Pump (K18)
