Home >> Hummer >> 2009 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Mode Switch, A/T

Transmission Mode Switch, A/T

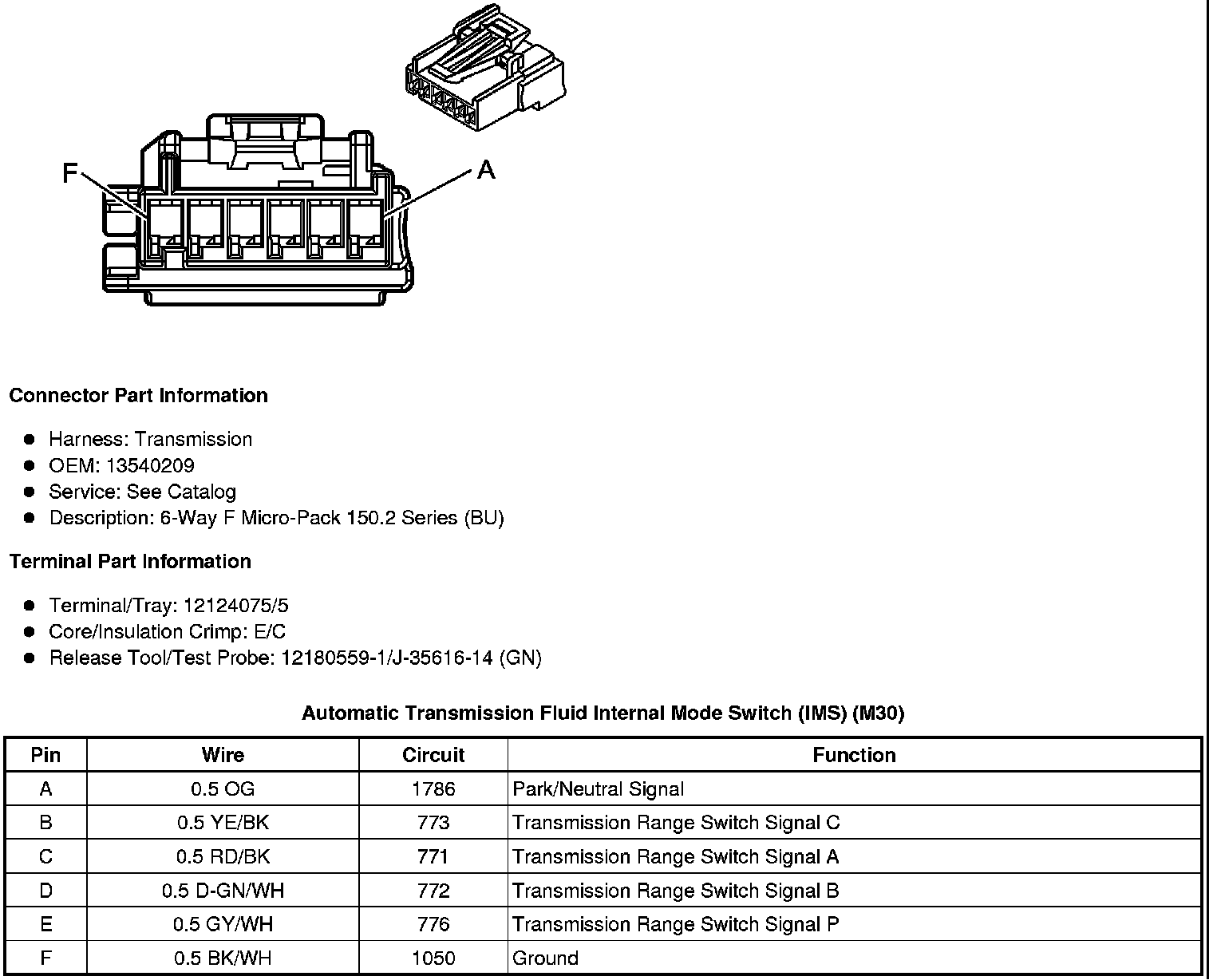

Component Connector End Views

Automatic Transmission Fluid Internal Mode Switch (IMS) (M30)
