Camshaft Gear/Sprocket

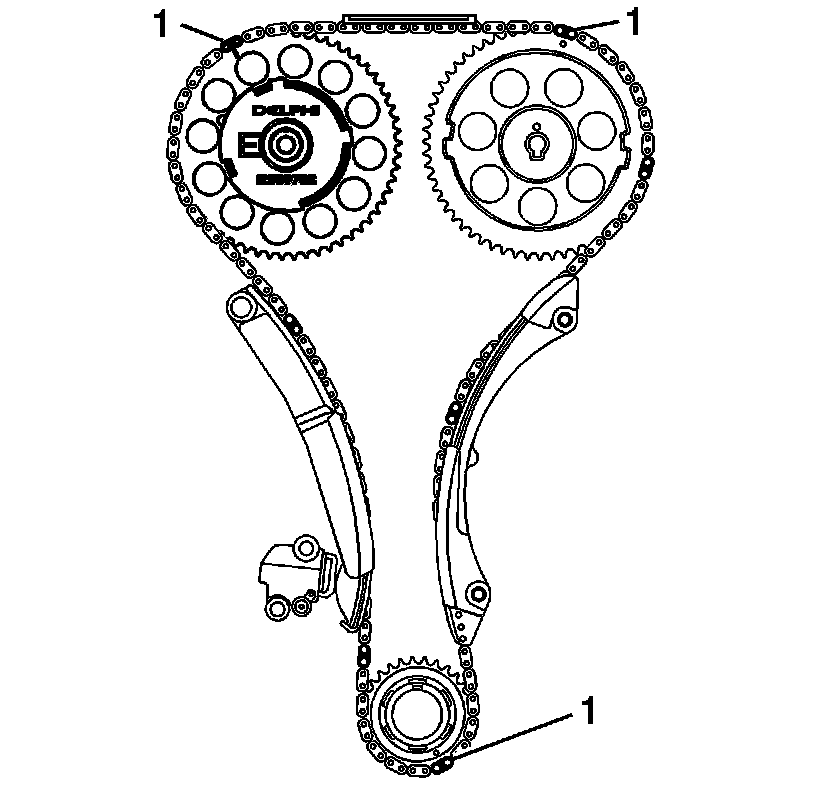

CAMSHAFT GEAR/SPROCKET





Tighten the intake camshaft sprocket bolt a first pass to 20 N.m (15 lb ft). Using the J 45059 rotate the bolt a final pass an additional 100 degrees.

Tighten the exhaust camshaft sprocket bolt a first pass to 25 N.m (18 lb ft). Using the J 45059 rotate the bolt a final pass an additional 135 degrees.
