Air Conditioning and Heater Module Assembly Replacement

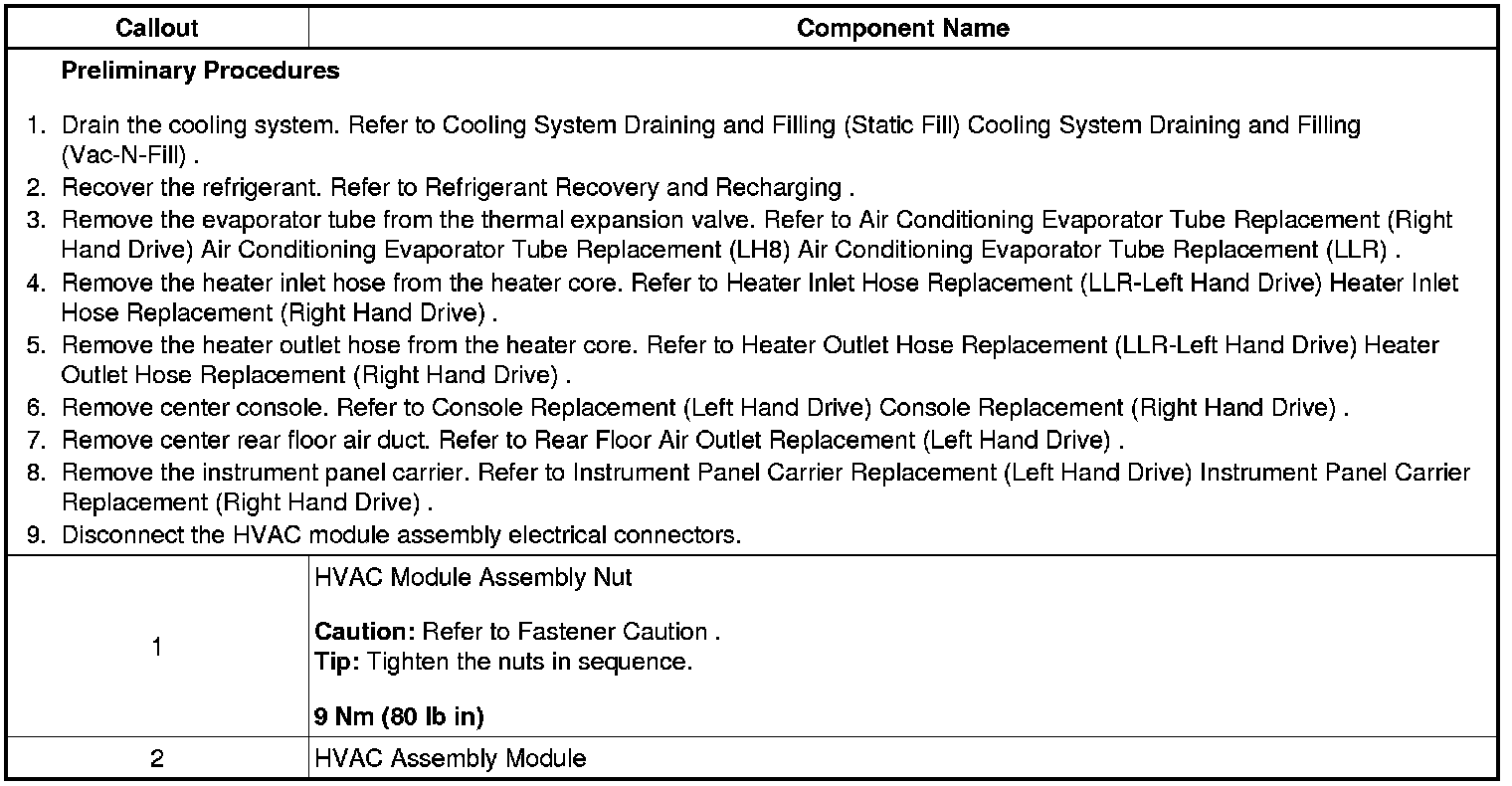

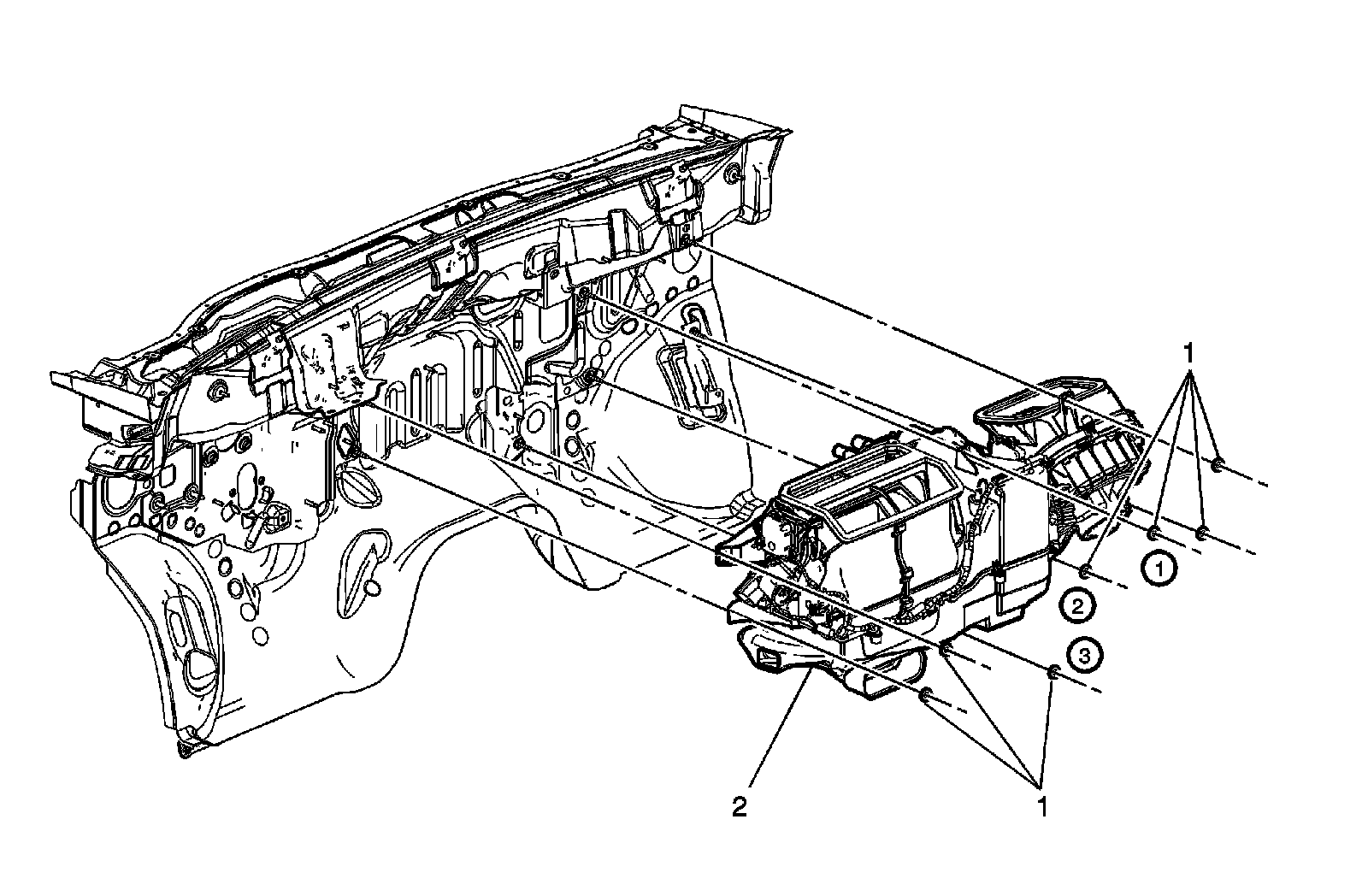

Air Conditioning and Heater Module Assembly Replacement (Left Hand Drive)
