Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
License Plate Lamp
Component Connector End Views
License Lamp (SLA)

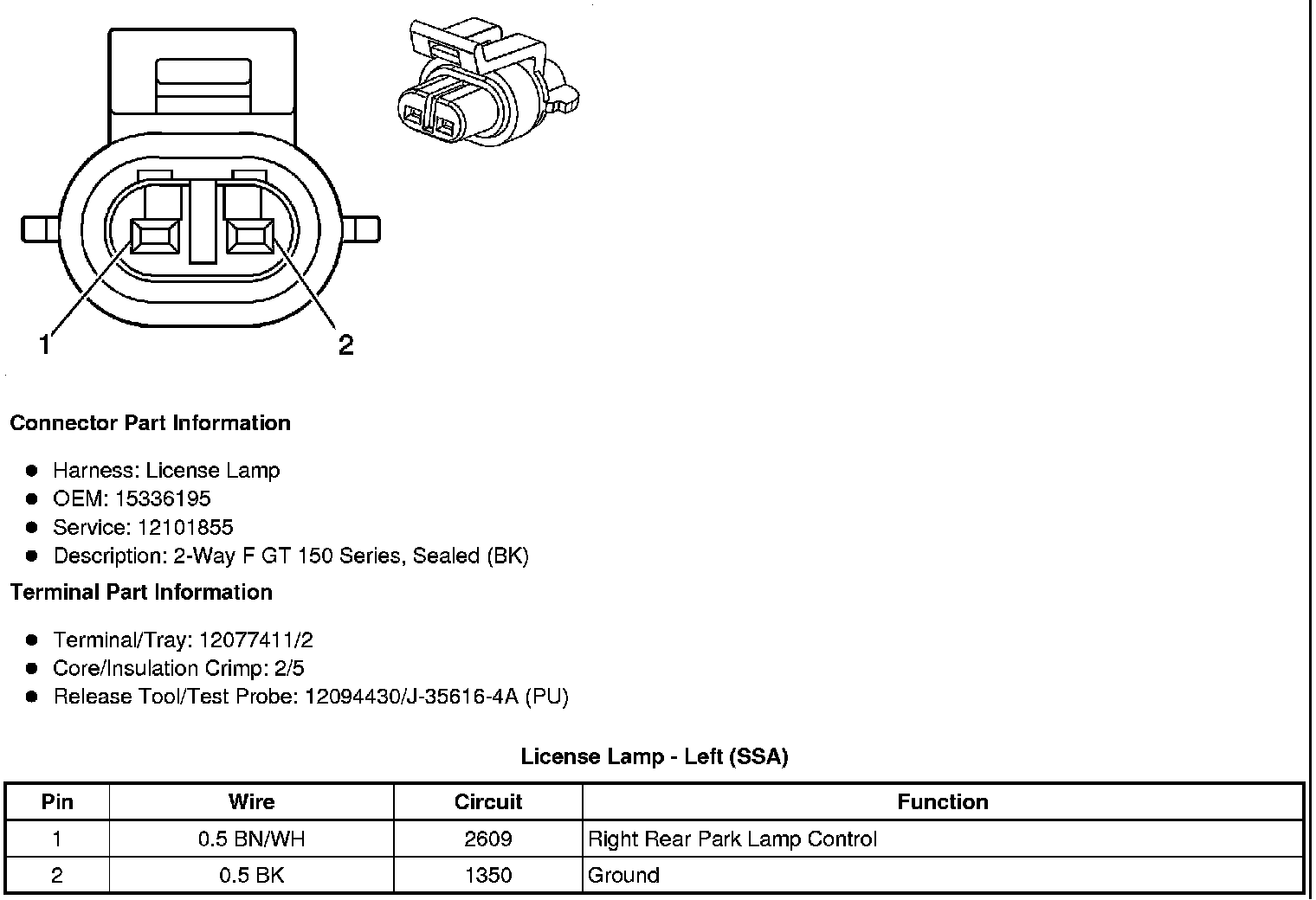

License Lamp - Left (SSA)

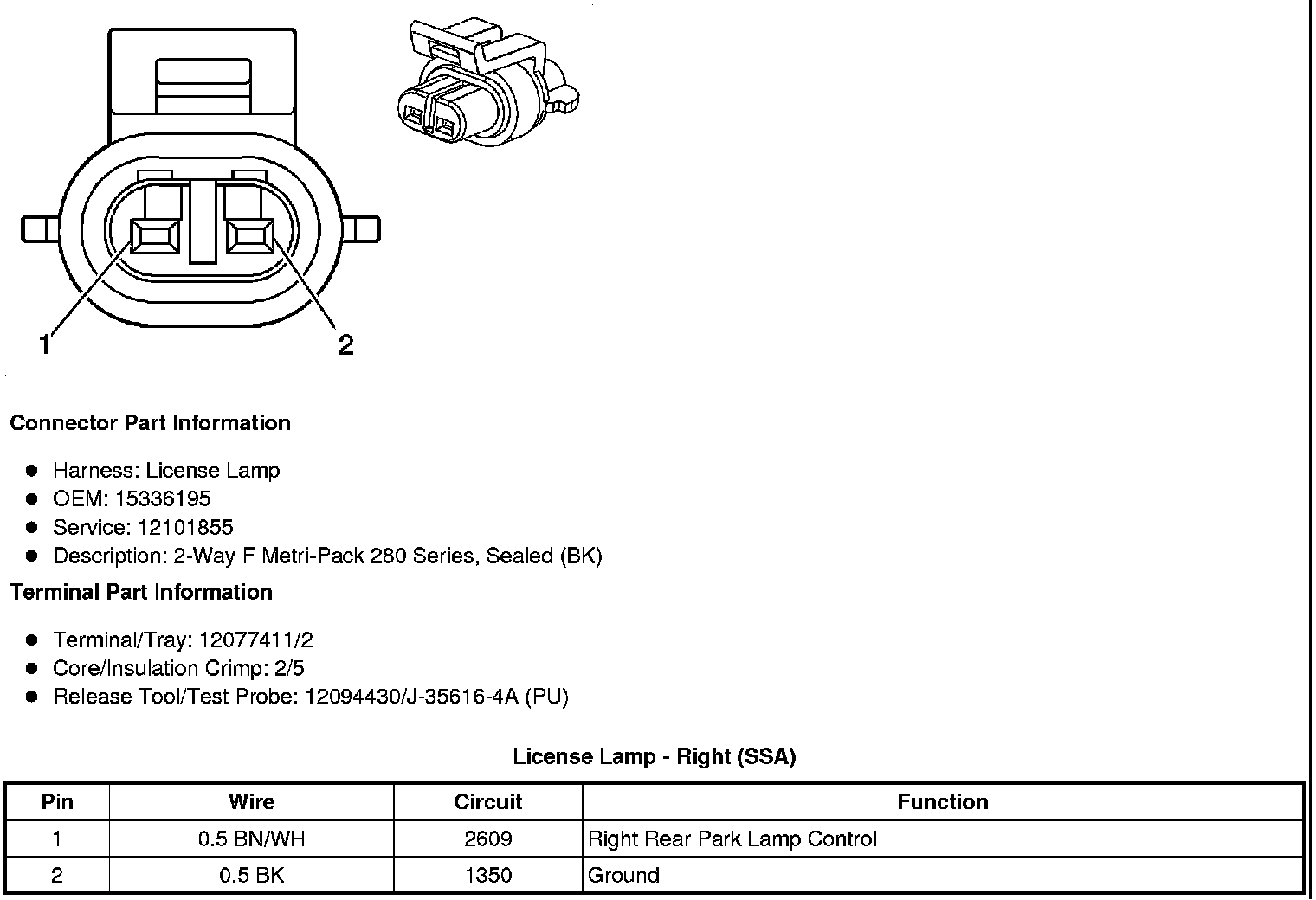

License Lamp - Right (SSA)
