Center Mounted Brake Lamp




Component Connector End Views

Center High Mounted Stop Lamp (CHMSL) (SUV)

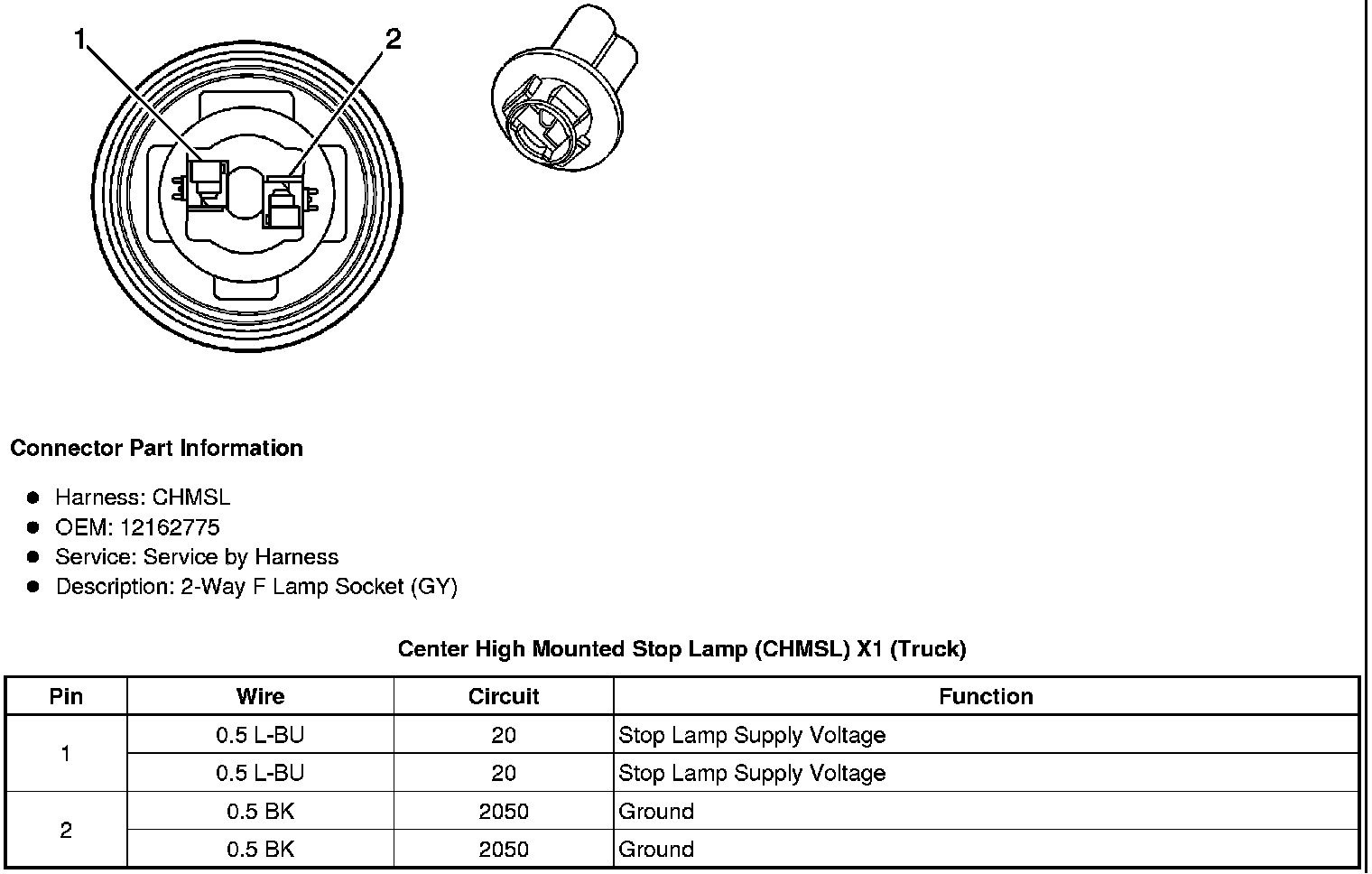

Center High Mounted Stop Lamp (CHMSL) X1 (Truck)

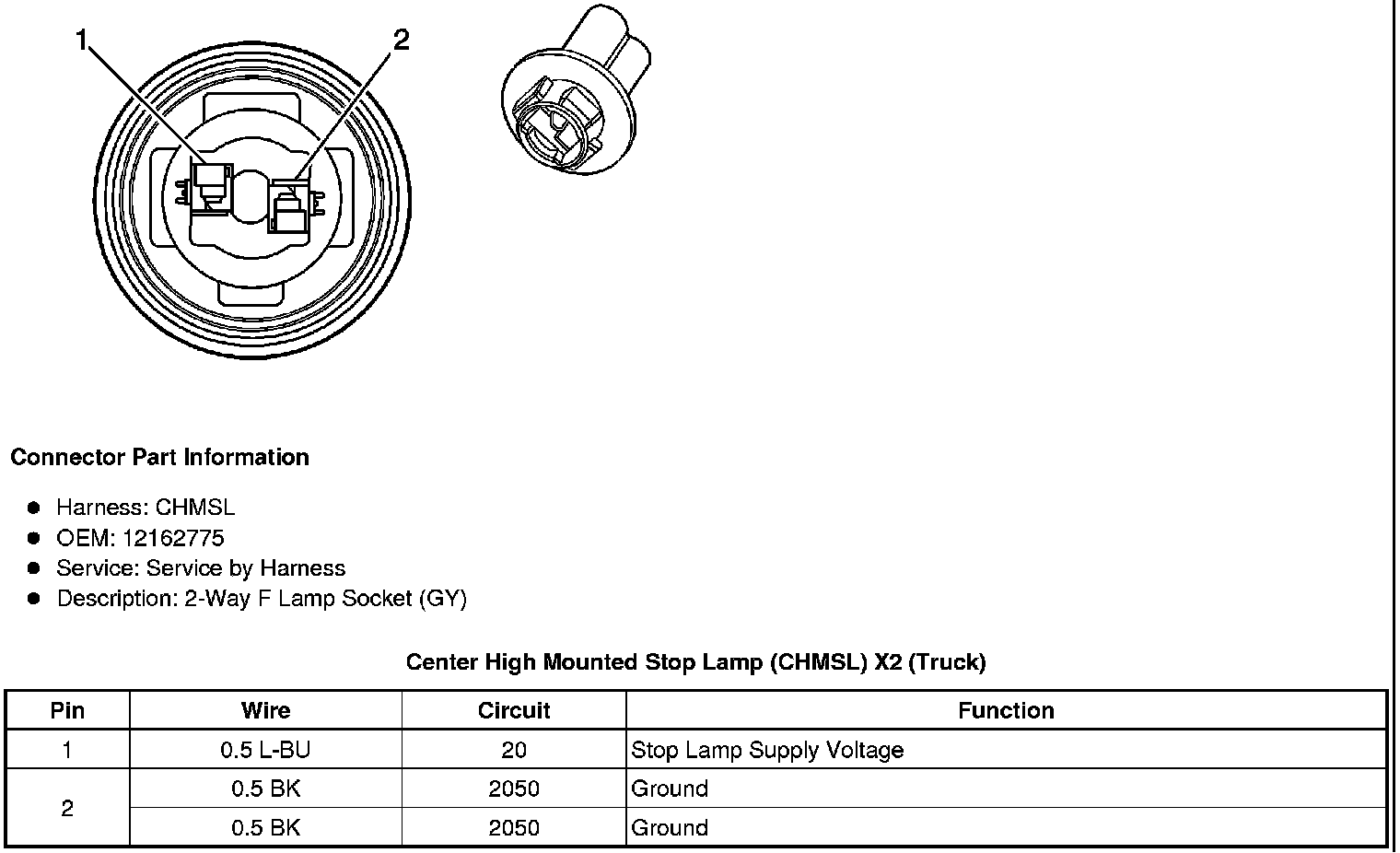

Center High Mounted Stop Lamp (CHMSL) X2 (Truck)

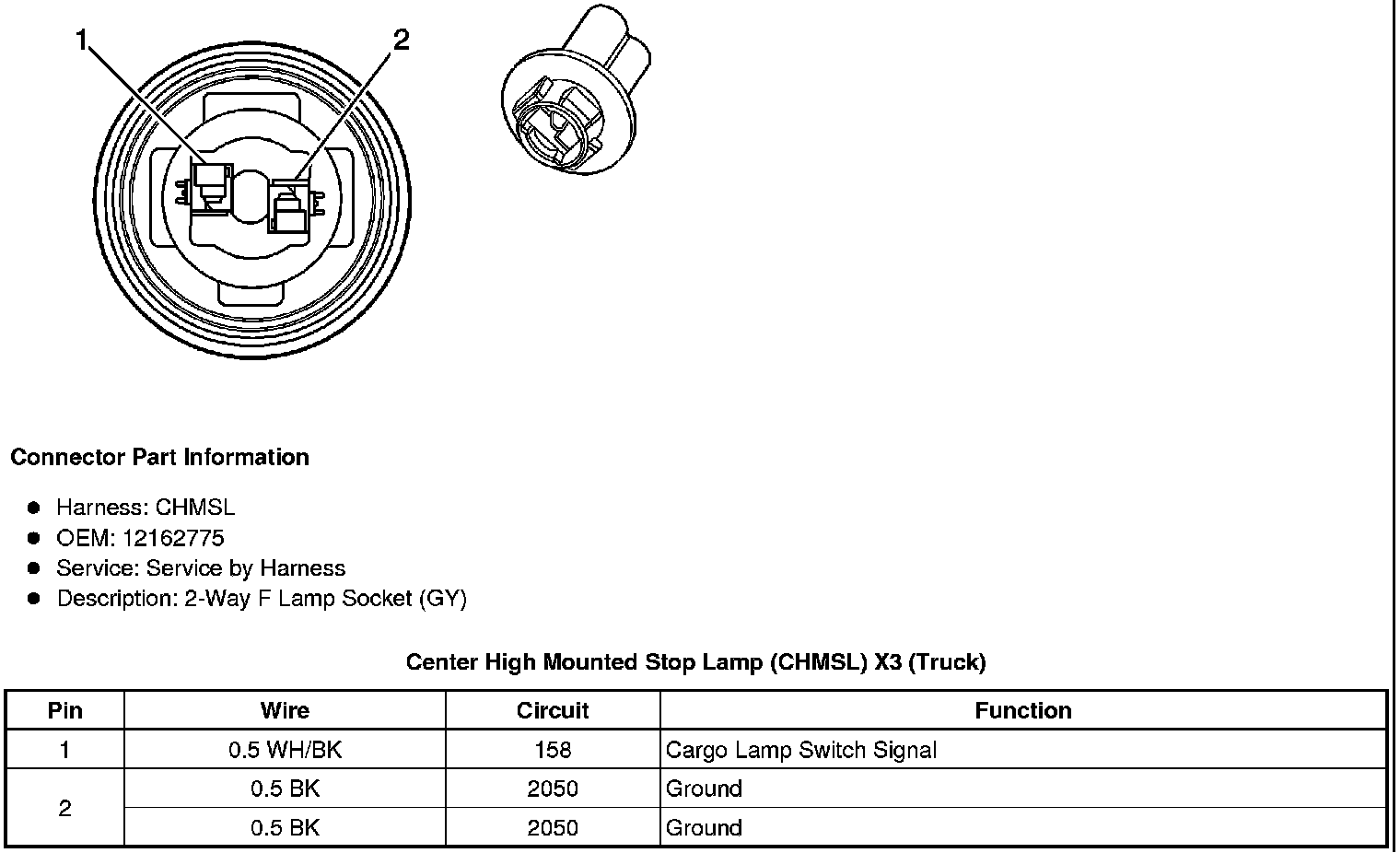

Center High Mounted Stop Lamp (CHMSL) X3 (Truck)

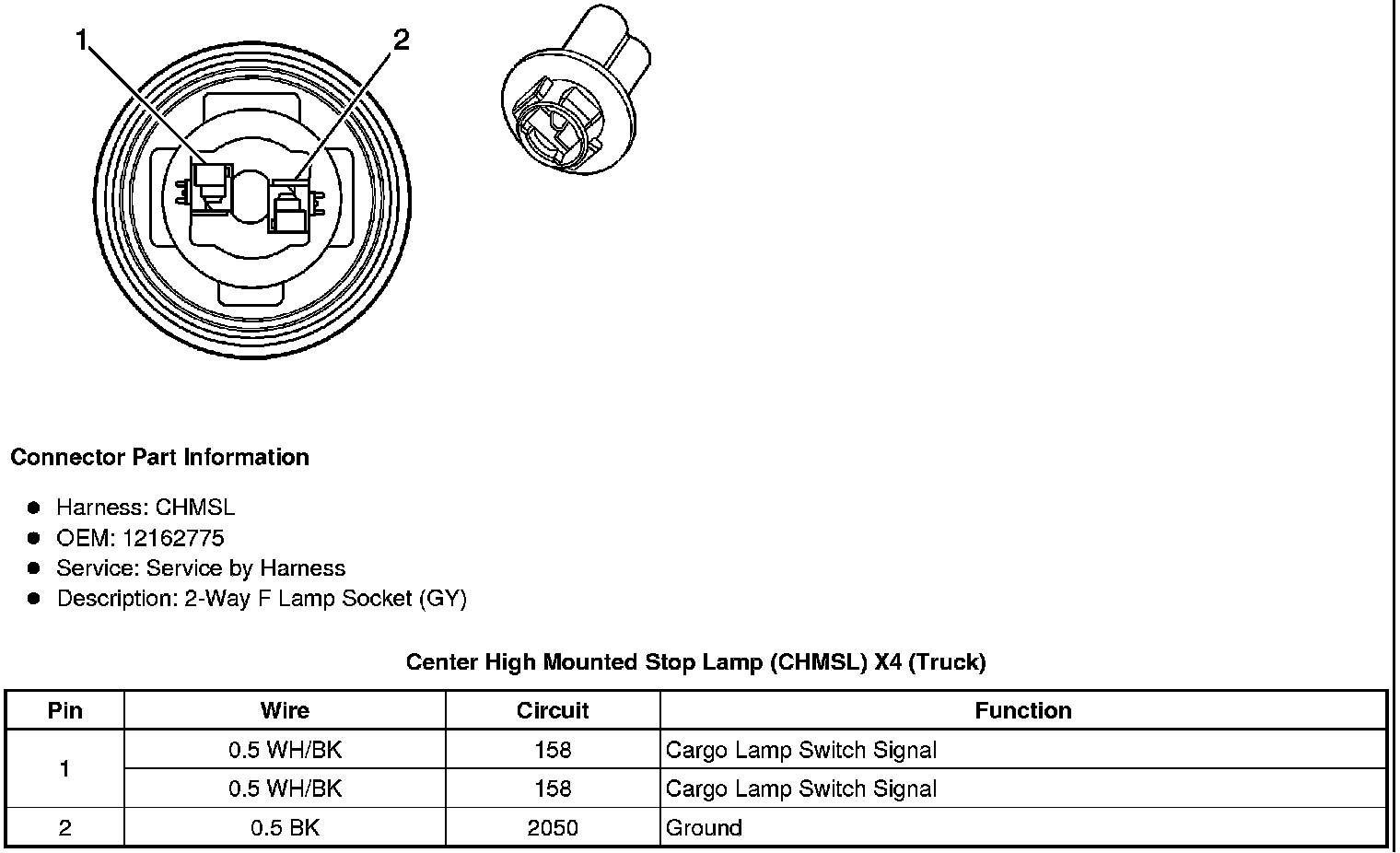

Center High Mounted Stop Lamp (CHMSL) X4 (Truck)
