Variable Valve Timing Solenoid: Diagrams




Component Connector End Views

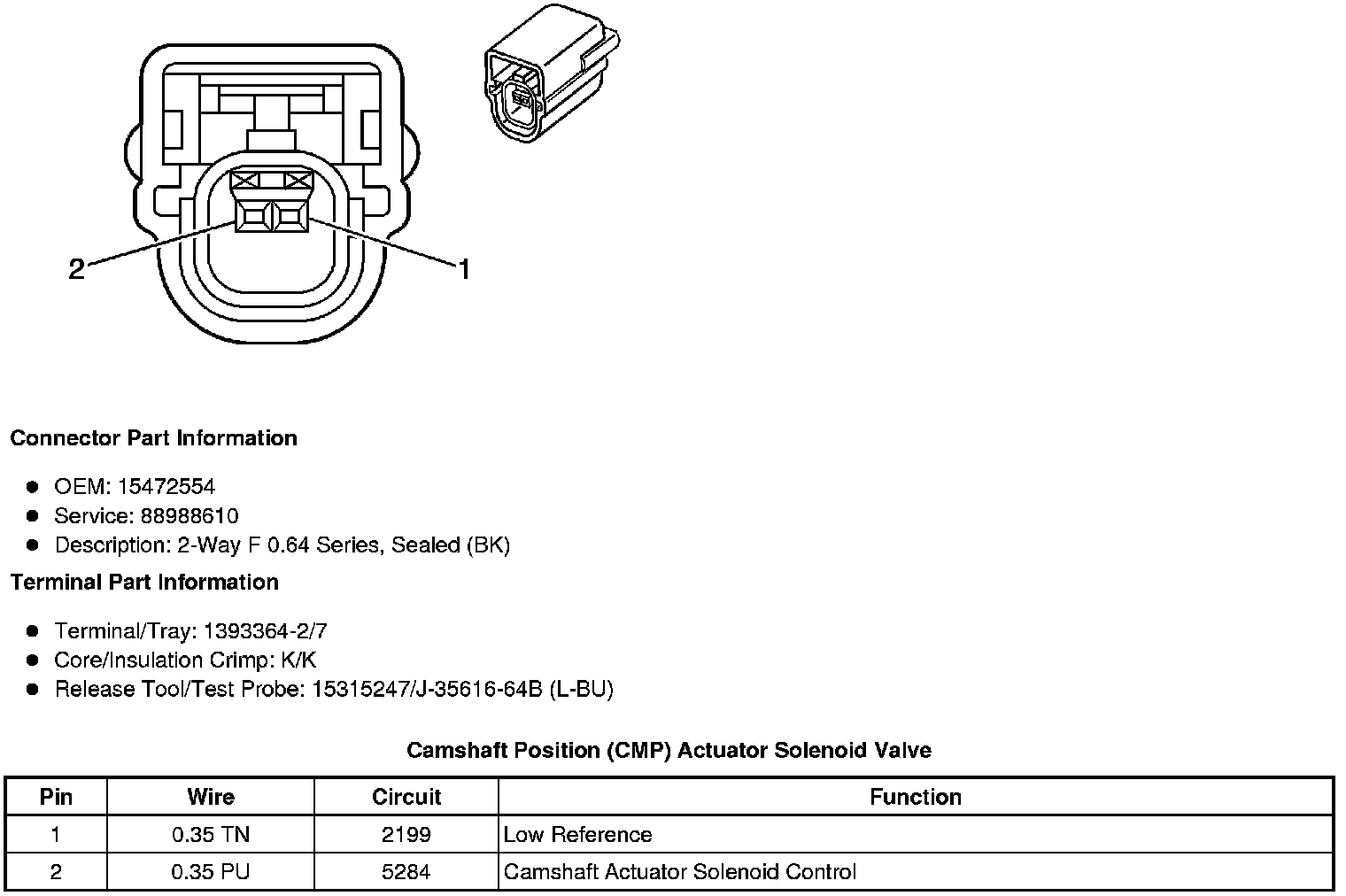

Camshaft Position (CMP) Actuator Solenoid Valve
