Power Window Switch
>>
Door Lock/Window Switch - Driver X3
Door Lock/Window Switch - Driver X3

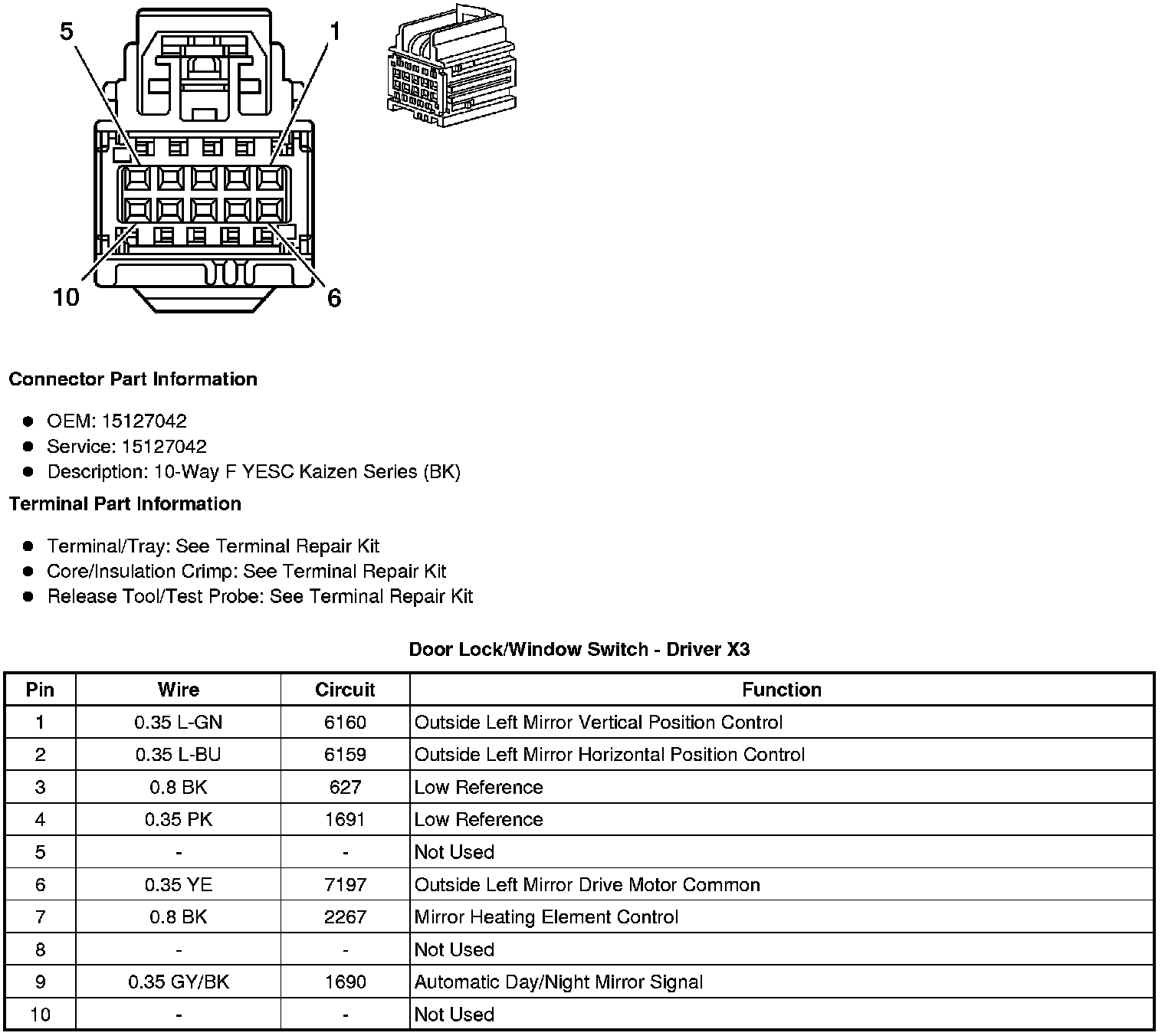

Component Connector End Views
Door Lock/Window Switch - Driver X3
