Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Door Lock/Window Switch - Driver X2
Door Lock/Window Switch - Driver X2

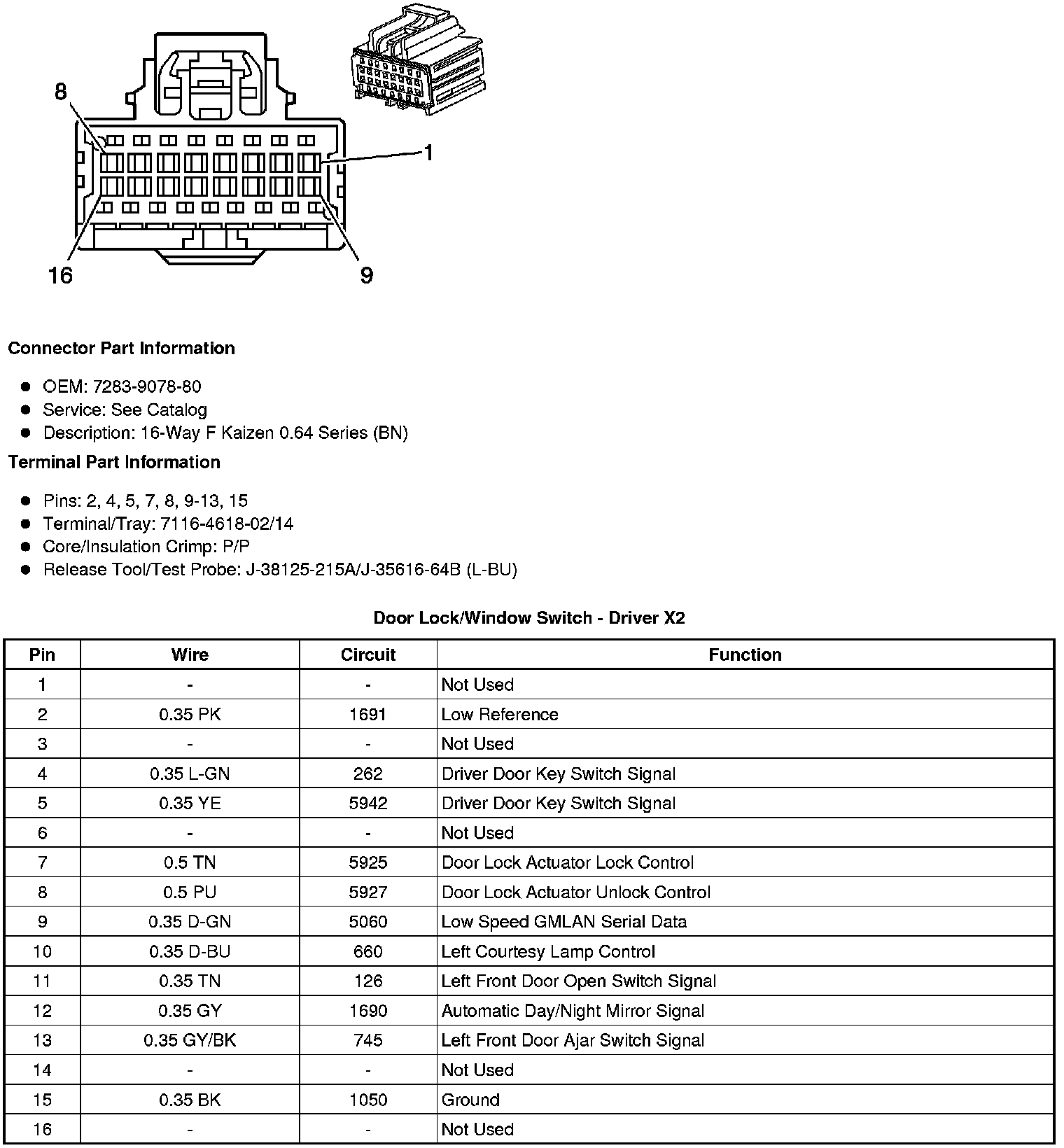

Component Connector End Views
Door Lock/Window Switch - Driver X2
