Impact Sensor
>>
Inflatable Restraint Side Impact Sensor (SIS) - Left Front

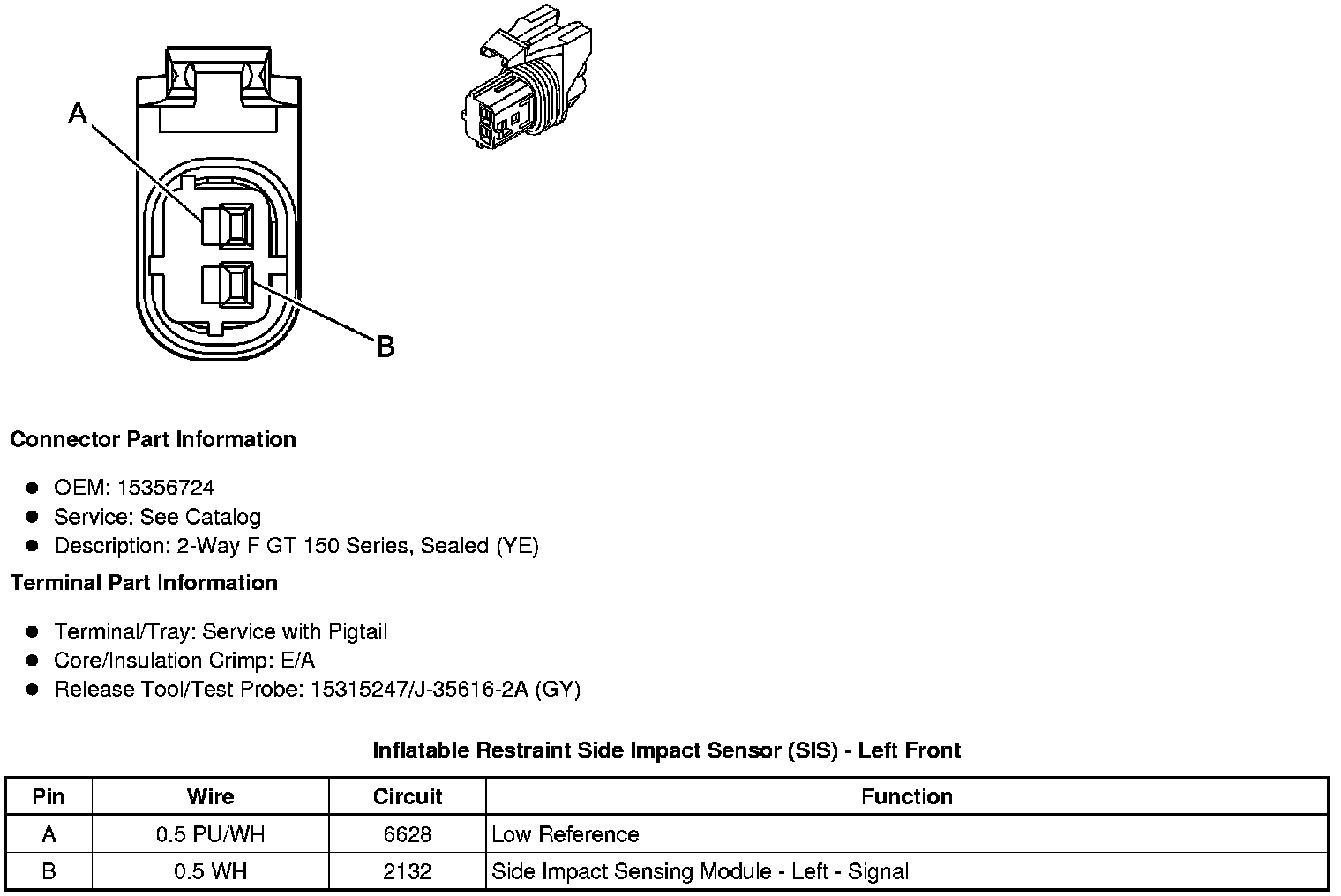

Inflatable Restraint Side Impact Sensor (SIS) - Left Front
Component Connector End Views
Inflatable Restraint Side Impact Sensor (SIS) - Left Front
