Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>
Fuel Injector 4
Fuel Injector 4

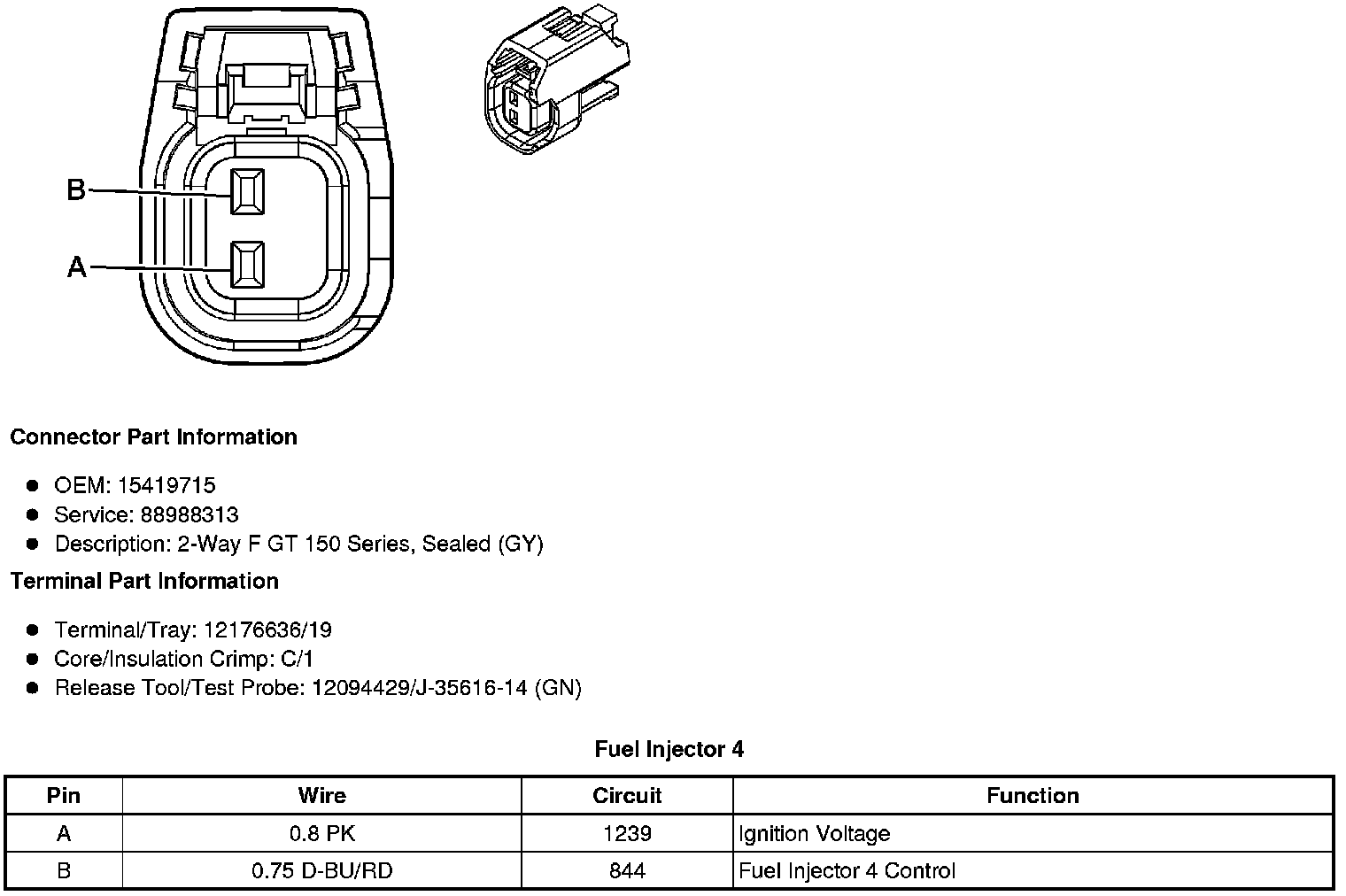

Component Connector End Views
Fuel Injector
4
