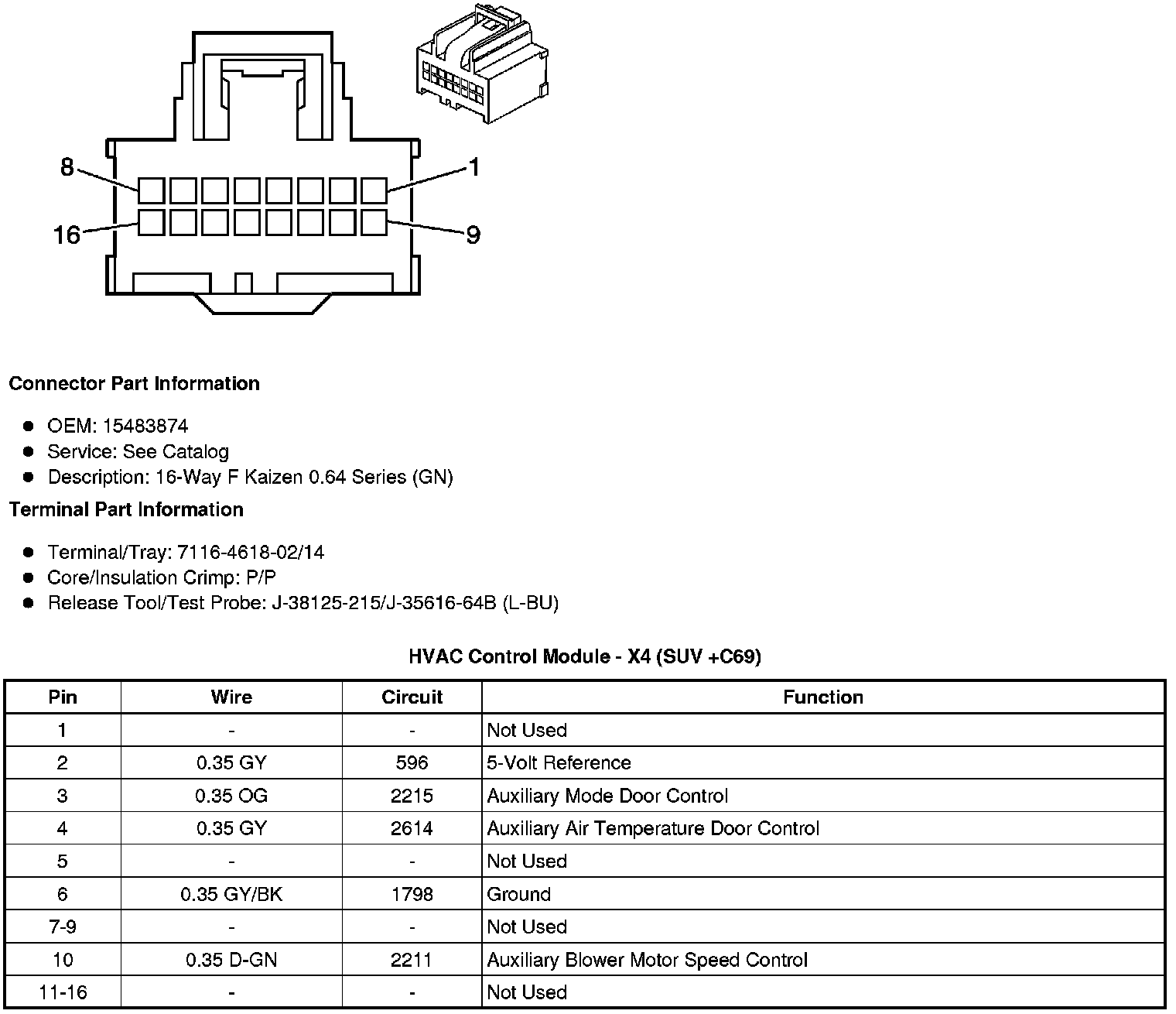

HVAC Control Module - X4 (SUV +C69)




Component Connector End Views

HVAC Control Module - X4 (SUV +C69)
