Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System
Component Connector End Views

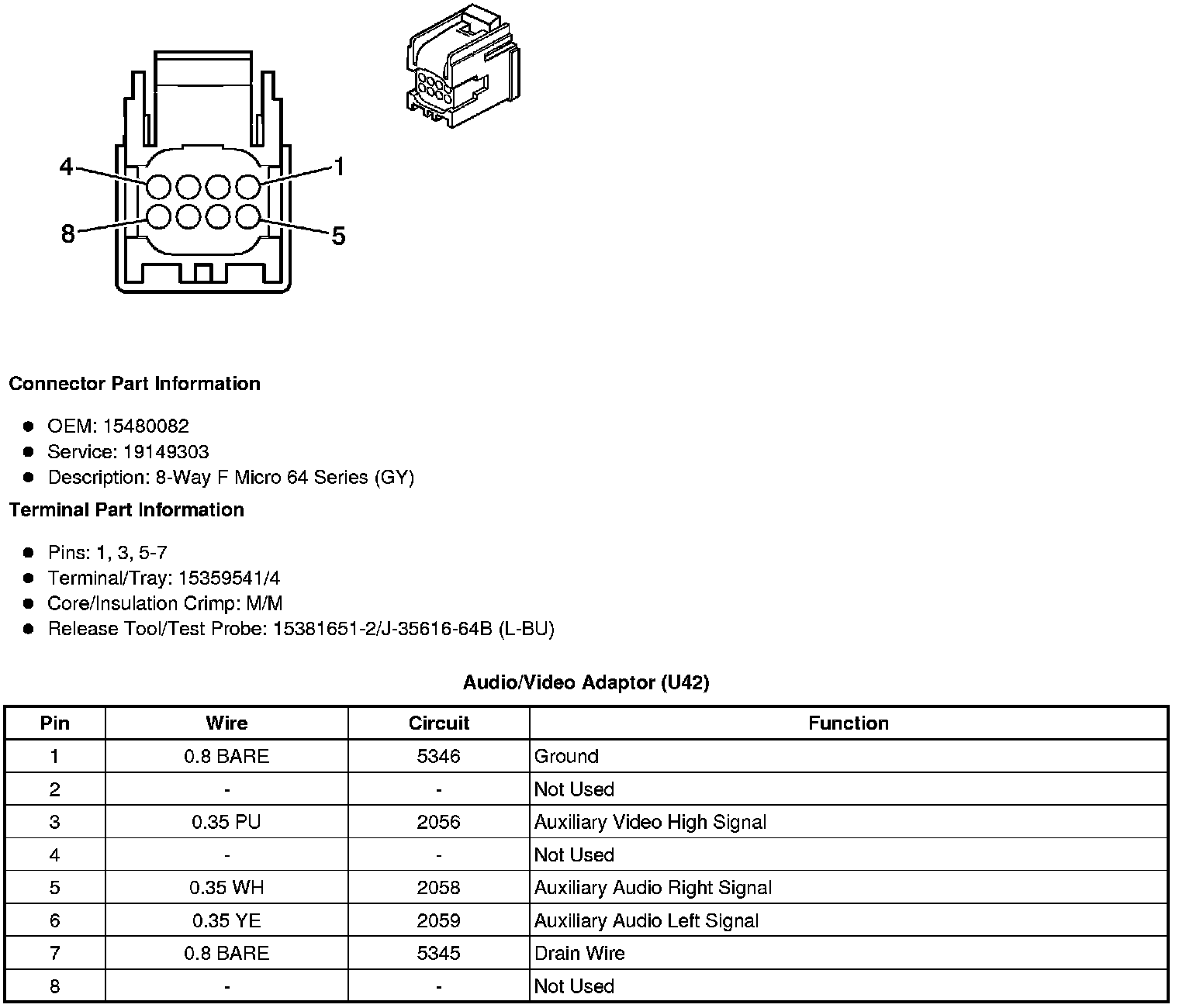

Audio/Video Adaptor (U42)
