Seat Temperature Element

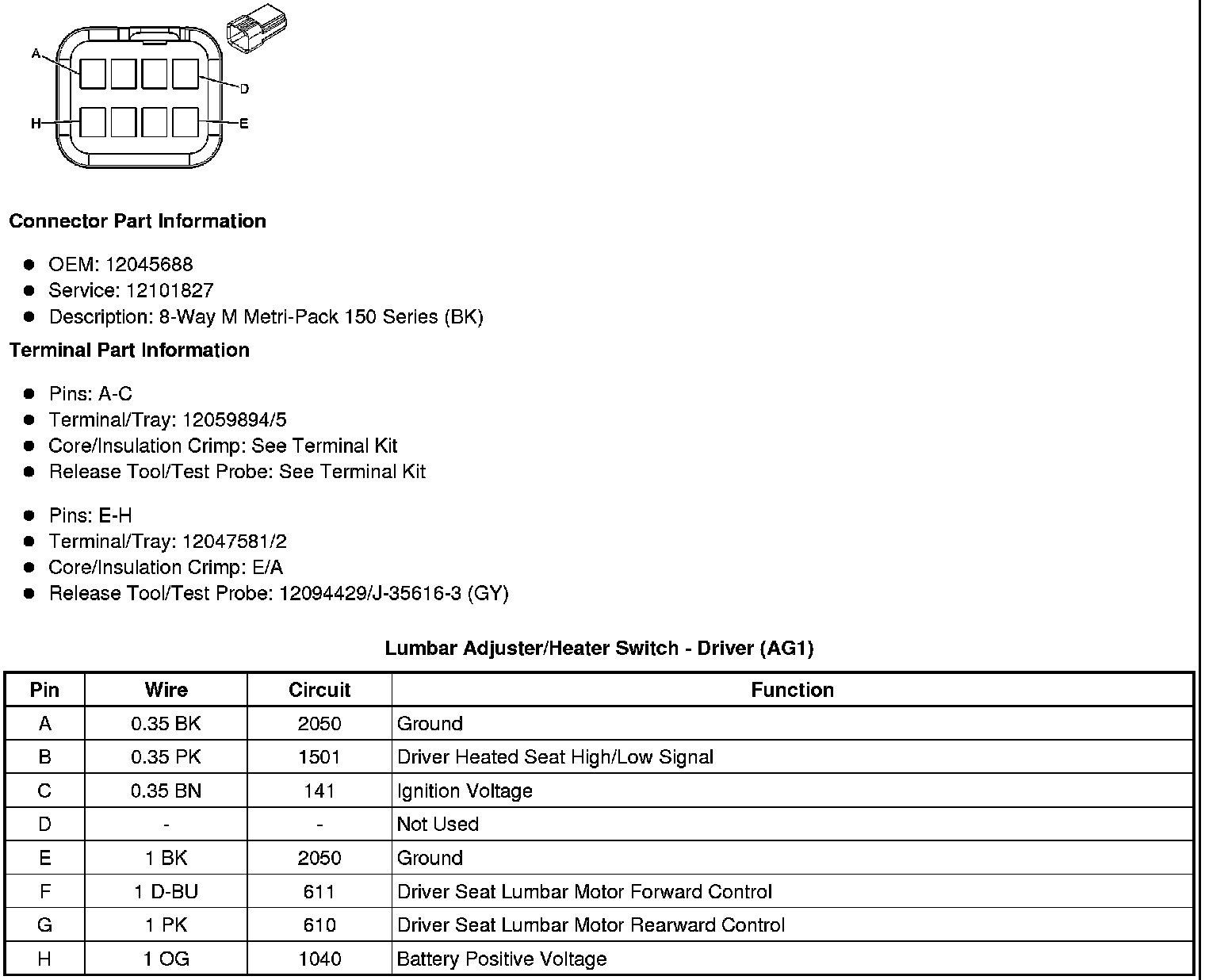

Lumbar Adjuster/Heater Switch - Driver (AG1)

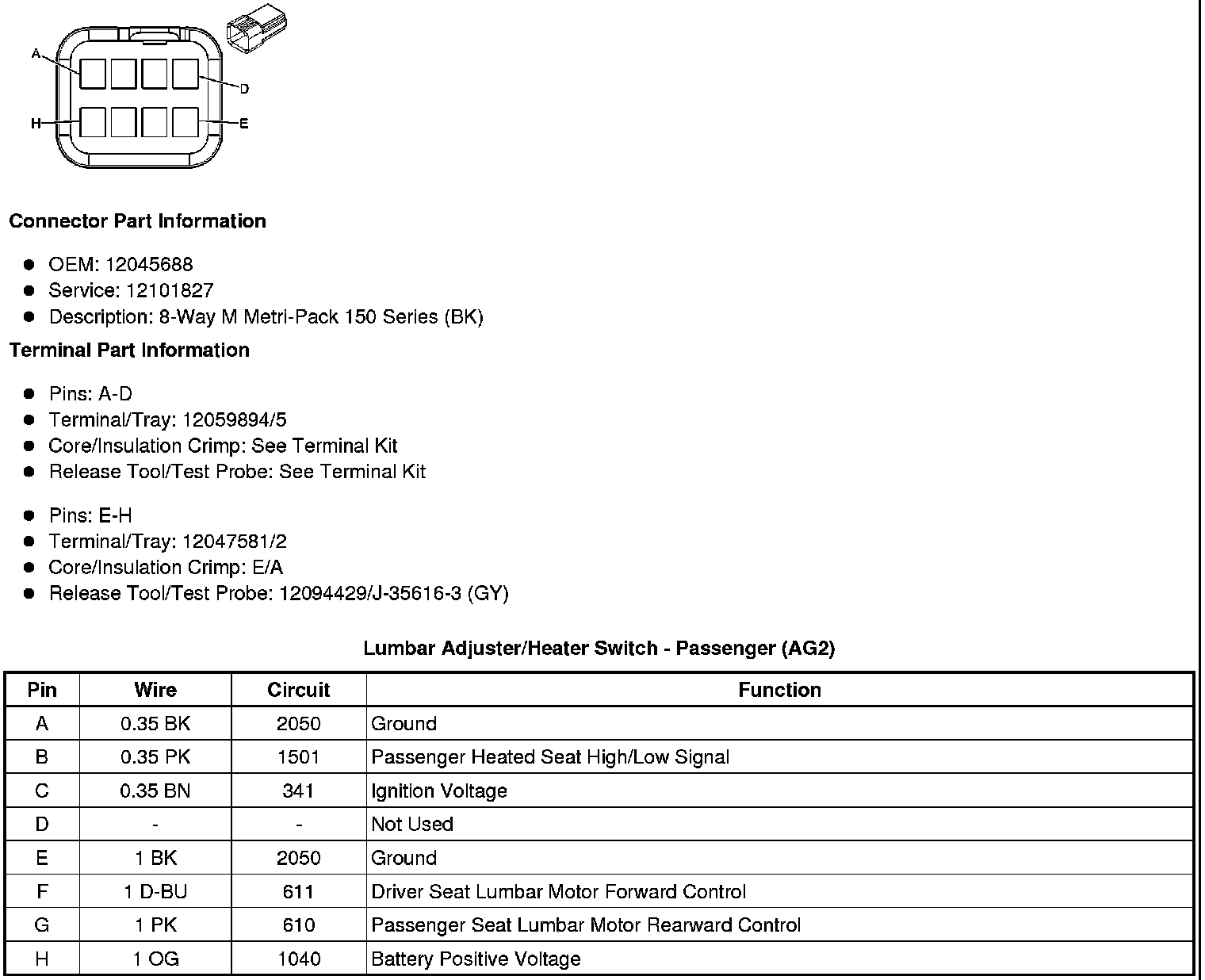

Lumbar Adjuster/Heater Switch - Passenger (AG2)





Heated Seat Element - Driver Back (KA1)






Heated Seat Element - Passenger Back (KA1)
