Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Injection Pump
Air Injection Pump

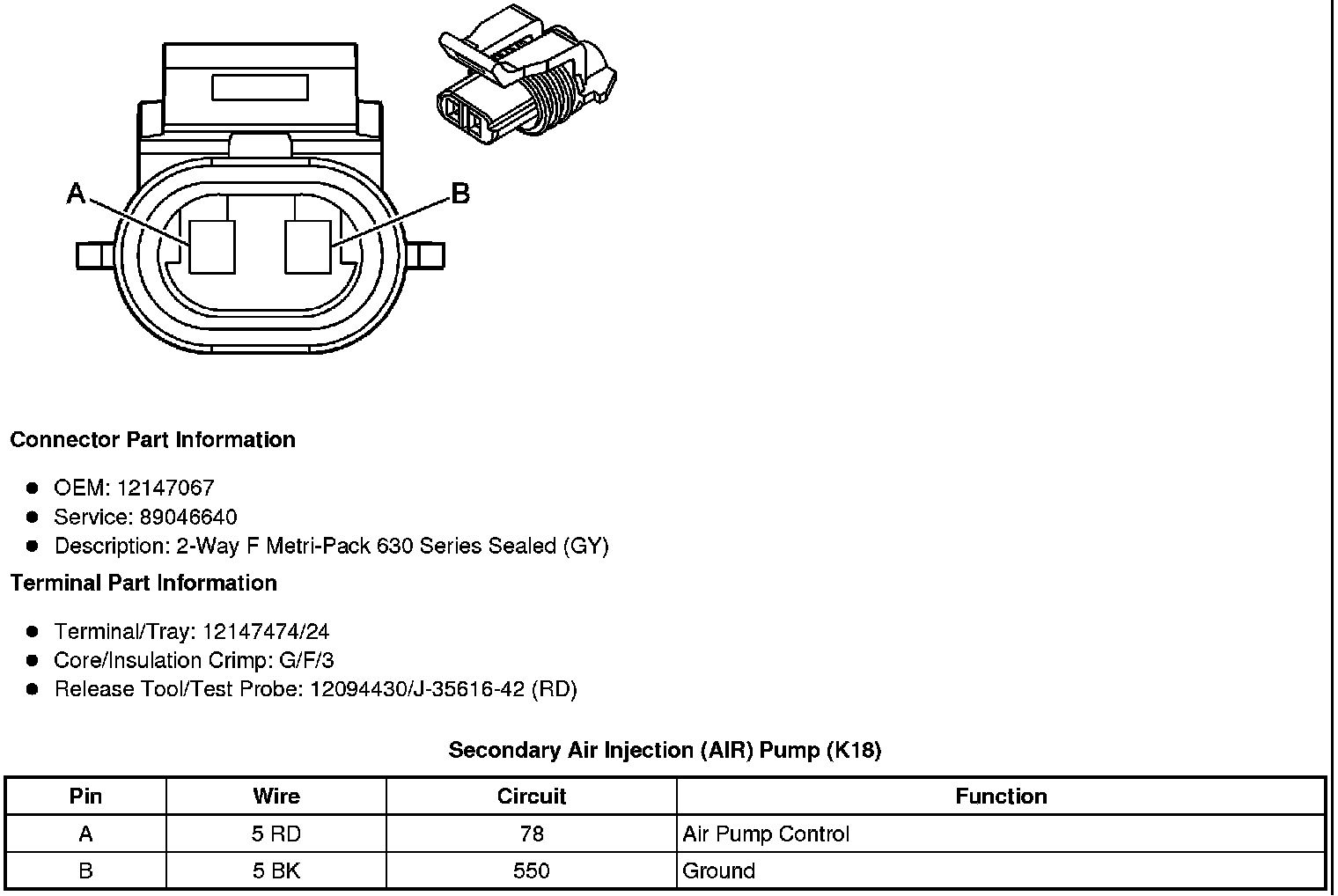

Secondary Air Injection (AIR) Pump (K18)
