Steering Column Tilt Spring Replacement

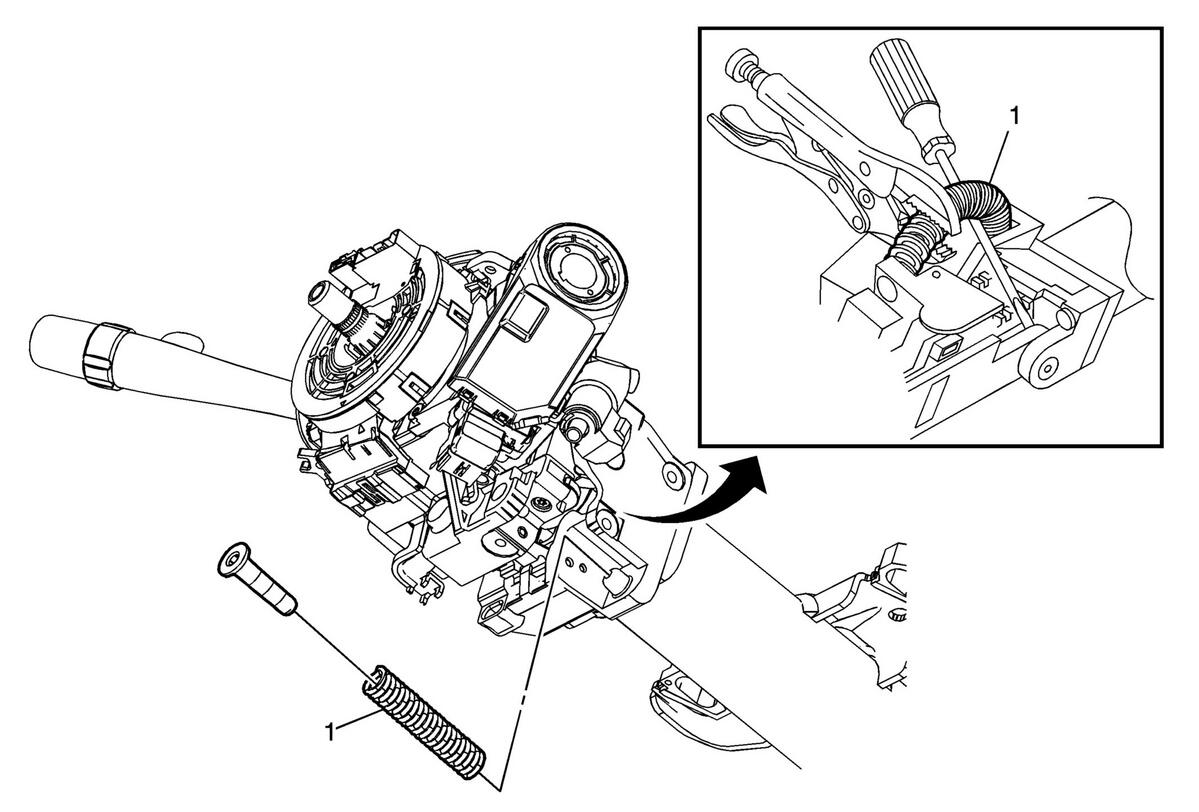

Fig 1: Steering Column Tilt Spring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Steering Column Tilt Spring CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide. Procedure Pry up the steering column tilt spring until a bulge occurs and most of the tension is removed. Secure the steering column tilt spring with locking pliers Continue prying up the steering column tilt spring until it disengages from the posts on the steering column and the steering column tilt head. Transfer the steering column tilt guide if needed.

Callout

Component Name

Preliminary Procedure:
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Steering Column Tilt Spring

CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.

Procedure

Pry up the steering column tilt spring until a bulge occurs and most of the tension is removed.
Secure the steering column tilt spring with locking pliers
Continue prying up the steering column tilt spring until it disengages from the posts on the steering column and the steering column tilt head.
Transfer the steering column tilt guide if needed.
